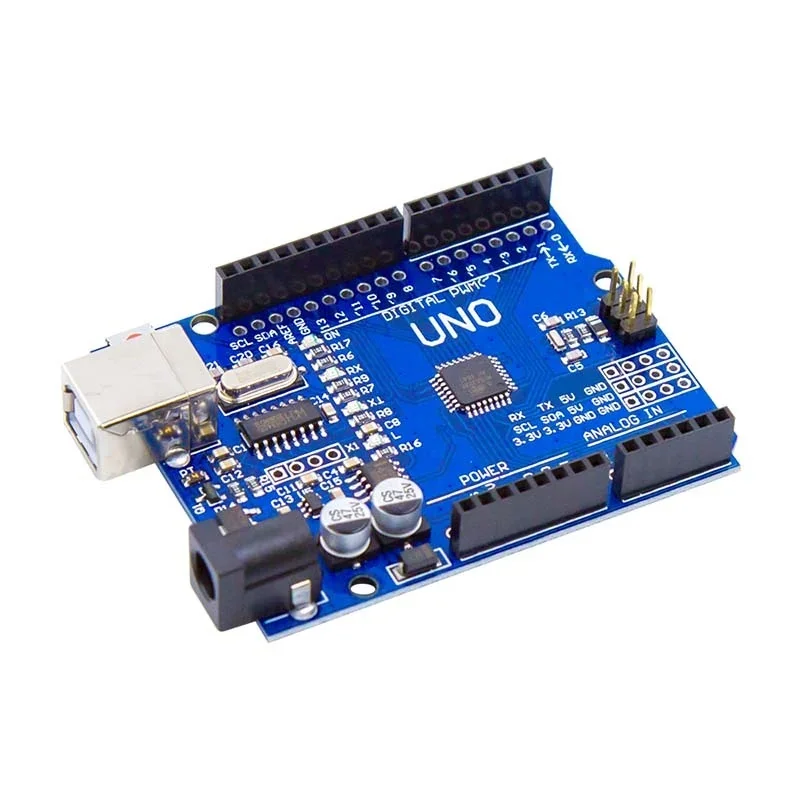

Arduino Uno R3 CH340G ATMega328P Development Board Compatible with Arduino
- •Product Name: Arduino Uno R3 CH340G ATMega328P Development Board Compatible with Arduino
- •Product Category: Microcontrollers
- •Operating Voltage: 3.3V - 5V DC
- •Speed / Frequency: 16 MHz
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •[Arduino Boards, Development Board] Product Description The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino
- •It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip
Description
The Arduino Uno R3 CH340G ATMega328P Development Board Compatible with Arduino is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •[Arduino Boards, Development Board] Product Description The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino
- •It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip
- •We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly
- •The only time the CH340 chip is used is during programming and when using the serial output of the USB port
- •During normal operation, this board is identical to the more expensive version without CH340 chip
- •Features The Arduino Uno R3 is a micro-controller board base on the ATmega328
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
Pin 13 (SCK)
Connected directly to onboard yellow LED and SPI hardware clock bus.
pinMode(LED_BUILTIN, OUTPUT);
digitalWrite(LED_BUILTIN, HIGH);🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × Arduino Uno R3 CH340G ATMega328P Development Board Compatible with Arduino
