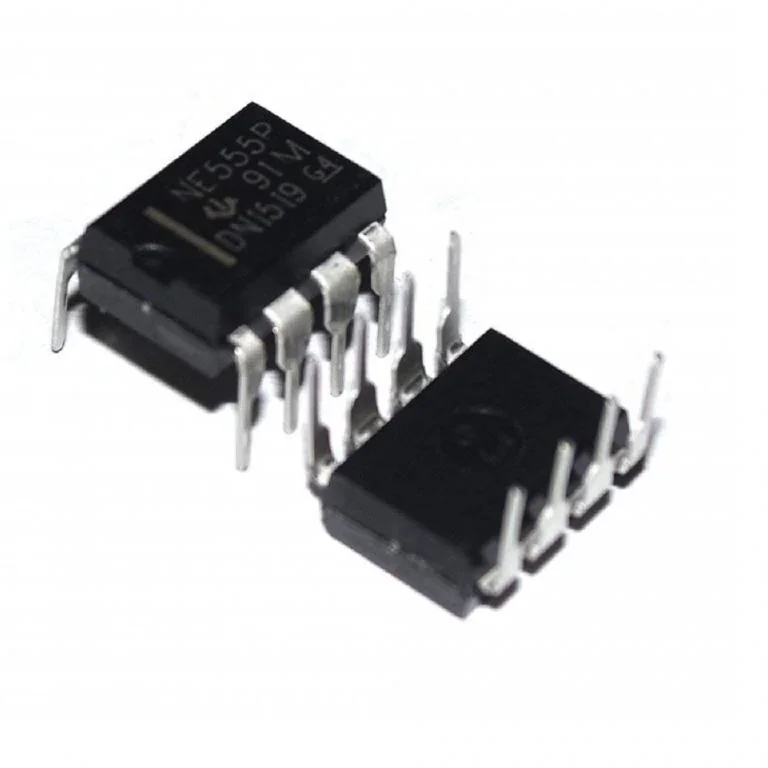

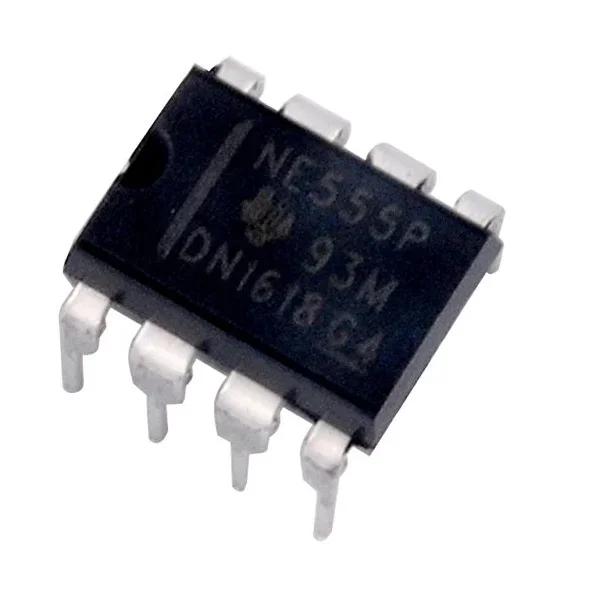

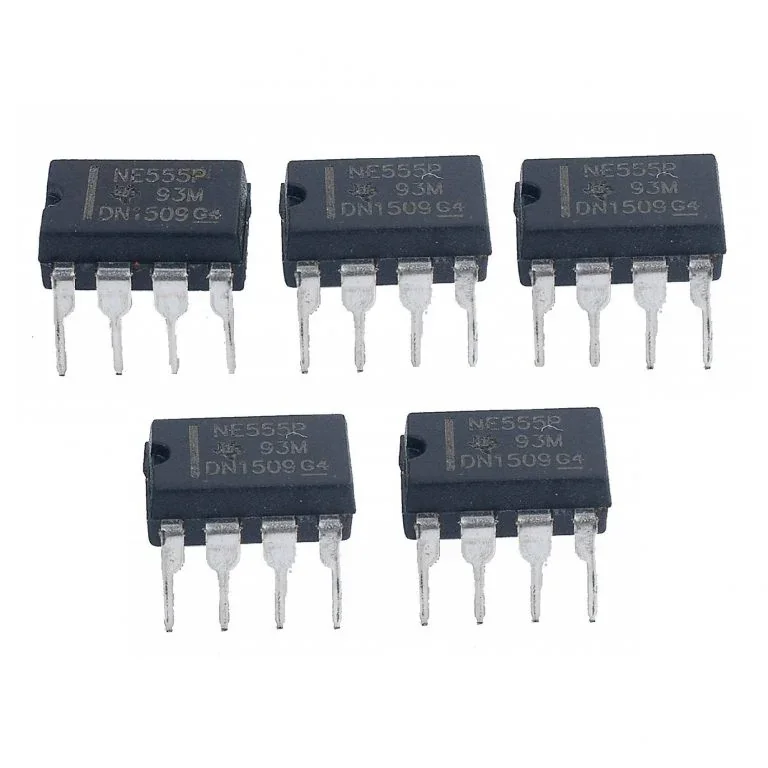

NE 555 P PDIP-8 Timer IC

Description

The NE 555 P PDIP-8 Timer IC is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •[Timer,Clock,Counter ICs] The NE 555 P timer IC is a precision timing circuit capable of producing accurate time delays or oscillation
• •In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network
• •In the as table mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor
• •The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC
• •These levels can be altered by the use of the control voltage terminal
• •When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × NE 555 P PDIP-8 Timer IC
