SKU: #5769Sensors

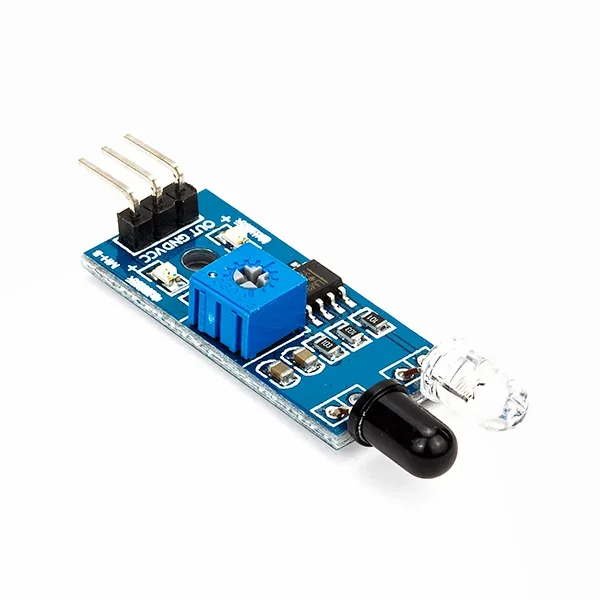

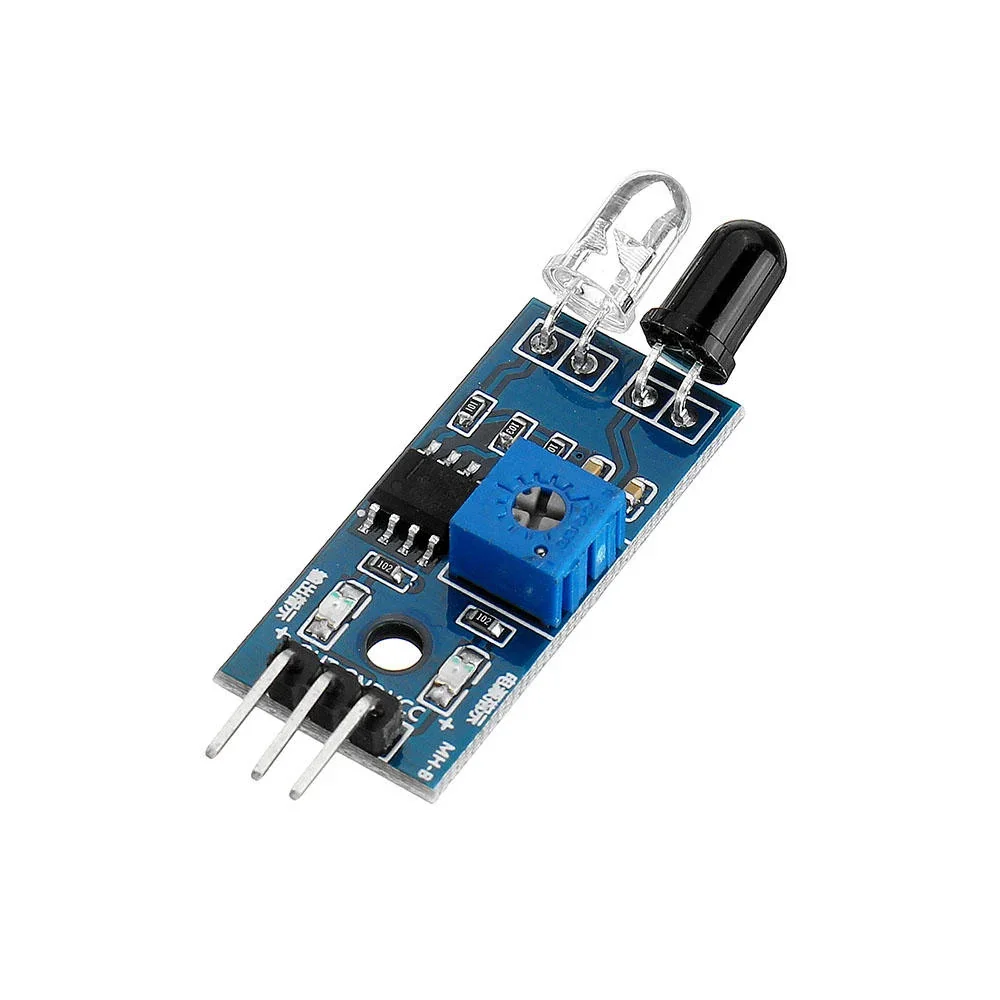

Infrared Obstacle Avoidance IR Sensor Module (Active Low)
—
₹33.00
₹29.00
(Inc. GST)Save 12%- •Product Name: Infrared Obstacle Avoidance IR Sensor Module (Active Low)
- •Product Category: Sensors
- •Operating Voltage: 3.3V - 5V DC
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •Efficiency / Accuracy: Up to 95%
- •[IR and PIR Sensors] Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes
- •When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube
In stock(10 units ready to dispatch)
1
Check Delivery Availability of Your Pincode:
10 People watching this product right now!
Description
The Infrared Obstacle Avoidance IR Sensor Module (Active Low) is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •[IR and PIR Sensors] Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes
- •When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube
- •The onboard comparator circuitry does the processing and the green indicator LED comes to life
- •The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail
- •It works fine with 3.3 to 5V levels
- •Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal)
🔹 Technical Specifications
Product Name:Infrared Obstacle Avoidance IR Sensor Module (Active Low)
Product Category:Sensors
Operating Voltage:3.3V - 5V DC
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%

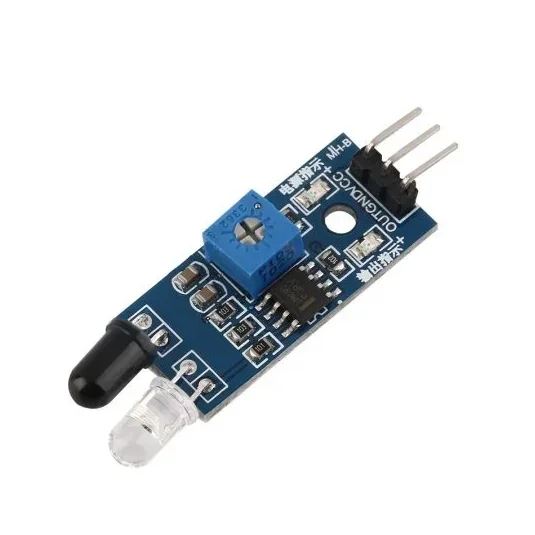

🔹 Pin Configuration & Wiring
VCC3.3V to 5V DC Power Input
GNDGround Connection (0V)
OUT / DATDigital / Analog Output Signal to Microcontroller
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × Infrared Obstacle Avoidance IR Sensor Module (Active Low)
Wholesale Tiered Pricing
Selected Quantity:
Subtotal: ₹29.00 +18% GST
