All products · 9 of 1440
Electronics, sensors, robotics kits, PC components, peripherals — everything Unik Systems carries, in one place.
IR Obstacle Avoider Sensor
IR sensor with adjustable detection range and angle.
Single Shaft BO Motor 100 RPM
[Gear Motor] 100 RPM Single Shaft BO Motor – Straight Shaft The 100 RPM Single Shaft BO Motor is a lightweight and cost-effective solution designed for DIY robotics, small automation systems, and educational projects. Offering an excellent balance between torque and speed at low operating voltages, this motor is ideal for small to medium-sized robots. With its compact and durable construction, the motor features pre-drilled mounting holes for easy installation and perfectly pairs with 69mm robot wheels, making it an excellent choice for 2WD mobile robot platforms. Its low noise, low power consumption, and reliable torque output make it a favorite among hobbyists, students, and developers. Specifications: Shaft Length: 7mm Shaft Diameter: 5.5mm Motor Size: 55 × 48 × 23mm Voltage Range: 3V – 12V DC No-load Current: 40 – 180mA Speed: 100 RPM @ 6V Torque: 0.35 kg-cm Key Features: Lightweight and compact design Cost-effective with injection-molded housing Resilient, shock-absorbing construction Low power consumption and minimal maintenance Quiet operation with reduced friction Corrosion-resistant for long life Easy mounting with pre-drilled holes Ideal For: DIY robotics and automation projects Line follower and obstacle-avoiding robots Educational robotics kits Small mechanical prototypes Package Includes: 1 × 100 RPM Single Shaft BO Motor (Straight Shaft)
315MHz 4 Channel Wireless RF Remote Control Kit with Receiver Module (Non-Locking Mode)
[RF Module] 📡 315MHz 4 Channel Wireless RF Remote Control Kit with Receiver Module (Non-Locking Mode) 4 Channel RF Remote • 315MHz ASK Communication • 5V Receiver • Non-Locking Mode • Long Range Wireless Control The 315MHz 4 Channel Wireless RF Remote Control Kit is a reliable wireless control solution consisting of a 4-button RF transmitter and a super regenerative ASK receiver module. Operating at 315MHz, this kit is ideal for remote switching, automation, robotics, security systems, and DIY wireless control projects. The receiver module features four independent digital outputs (D0–D3) that correspond to the four buttons on the transmitter. When a button is pressed, the respective output pin goes HIGH, returning LOW immediately after the button is released. This Non-Locking (Momentary/Jog) operation makes the module perfect for applications requiring temporary switching such as electric door control, motor jogging, relay activation, and microcontroller interfacing. The receiver operates from a 5V DC supply and features a high-sensitivity ASK receiver with a Valid Transmission (VT) output pin for reliable signal detection. The transmitter uses a fixed-code encoder for secure communication and easy operation. Ideal for Arduino, ESP32, Raspberry Pi, AVR, PIC, industrial automation, wireless switching, and educational electronics projects. ⭐ Features 4-channel wireless RF remote control kit Operating frequency: 315MHz ASK (Amplitude Shift Keying) modulation Fixed-code RF transmitter Non-Locking (Momentary/Jog) operating mode Four independent digital outputs (D0–D3) High-sensitivity super regenerative receiver 5V DC receiver operating voltage VT (Valid Transmission) status output Compact PCB design Easy interface with microcontrollers Long wireless transmission range (environment dependent) Suitable for DIY and industrial automation 📋 Technical Specifications RF Transmitter Product Type: RF Wireless Remote Control Operating Frequency: 315MHz Number of Buttons: 4 Channels: 4 Modulation: ASK (Amplitude Shift Keying) Encoding Type: Fixed Code Operating Mode: Non-Locking (Momentary) Power Supply: 12V A23 Battery (Not Included) RF Receiver Module Operating Voltage: 5V DC Operating Frequency: 315MHz Receiver Type: Super Regenerative ASK Receiver Receiver Sensitivity: -98dBm Output Channels: D0, D1, D2, D3 VT Output: Yes (Valid Signal Output) Antenna Connection: External ANT Pin Recommended Antenna Length: Approx. 17cm (Quarter-Wave) Module Dimensions: Approx. 41 × 22 × 7 mm Receiver Pin Configuration VT – Valid Signal Output D3 – Channel 4 Output D2 – Channel 3 Output D1 – Channel 2 Output D0 – Channel 1 Output +5V – Power Input GND – Ground ANT – External Antenna Connection 🔧 Operating Modes Non-Locking (Momentary/Jog Mode) Press a button → Corresponding output goes HIGH. Release the button → Output immediately returns LOW. Ideal for momentary control applications. Note: This product is supplied in Non-Locking Mode only. 🔧 Applications Suitable for: Arduino Projects ESP32 Projects Raspberry Pi Projects Wireless Relay Control Home Automation Industrial Automation Remote Door Control Electric Door Locks Wireless Switching Robotics Motor Control Lighting Control Alarm Systems Security Systems DIY Electronics Educational Projects 📦 Package Includes 1 × 4-Button 315MHz RF Wireless Remote Control 1 × 315MHz Super Regenerative Receiver Module ⚠️ Note Battery is included. A 12V A23 battery is required for operation. Avoid bending or touching the receiver's onboard inductor (copper coil), as this may affect receiver sensitivity. Wireless operating range depends on antenna quality, obstacles, and surrounding RF interference. Product appearance may vary slightly depending on the manufacturing batch.
MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 MP3 Lossless Decode
[Audio Receiver] MH-M18 Wireless Bluetooth Audio Receiver Board Module – Bluetooth 4.2 MP3 Lossless Decoder The MH-M18 Wireless Bluetooth Audio Receiver Module is a compact, low-power Bluetooth 4.2 audio receiver designed to add wireless audio functionality to existing speakers, amplifiers, DIY audio systems and other projects. It supports stereo two-channel audio output and lossless decoding of WAV, WMA, FLAC, APE and MP3 formats. The module can operate from 3.7–5V and provides a transmission range of up to 20 meters under suitable conditions. ⭐ Key Features Bluetooth 4.2 wireless audio receiver Converts conventional speakers/amplifiers into Bluetooth-enabled audio systems Supports stereo dual-channel audio output Supports WAV/WMA/FLAC/APE/MP3 audio decoding Bluetooth automatic connection support Maximum transmission distance up to 20 meters in open/low-interference conditions Low power consumption Can be powered from a 3.7–4.2V lithium battery or 5V supply Compact PCB suitable for DIY projects Supports Bluetooth audio protocols including HFP, A2DP and AVRCP 📋 Technical Specifications Model: MH-M18 Bluetooth Version: Bluetooth 4.2 Operating Voltage: DC 3.7–5V Maximum Operating Current: Approximately 20mA Current in Deep Sleep: Approximately 3µA Transmission Distance: Up to 20 meters Sensitivity: -87dBm Operating Temperature: -40°C to +85°C Audio Output: Stereo, dual channel Supported Formats: WAV, WMA, FLAC, APE, MP3 Bluetooth Protocols: HFP V1.7, A2DP V1.2, AVRCP V1.5, AVCTP V1.2, AVDTP V1.2 Approx. Module Size: 23 × 16mm; some listings specify approximately 23 × 16.5 × 3mm depending on version. 🔧 Applications Convert old speakers into Bluetooth speakers DIY Bluetooth speaker projects DIY audio amplifiers Portable speaker projects Home audio systems Car audio Bluetooth upgrades Wireless audio receiver projects Custom audio and electronics projects 🛠️ Basic Connection VCC: Power input GND: Ground L: Left audio output R: Right audio output Connect the L/R audio outputs to an external amplifier. This module is an audio receiver/decoder and should not be treated as a high-power speaker amplifier. 💡 Bluetooth Indicator Fast flashing: Bluetooth not connected Steady light: Bluetooth connected Slow flashing: Bluetooth audio playback in some versions ⚠️ Important Notes Do not supply more than the specified operating voltage. For lithium-battery operation, use a suitable 3.7–4.2V supply. The maximum 20m transmission distance depends on obstacles, interference and the connected Bluetooth device. This is a Bluetooth audio receiver module, not a power amplifier. Audio output should be connected to a suitable amplifier input. IC Variant Note: This product may be supplied with different compatible IC variants, including MH-M18 or JL AS208PO1429-25C4. Functionality is specified as equivalent for this product, and the variant will be shipped randomly depending on stock. 📦 Package Includes 1 × MH-M18 Wireless Bluetooth Audio Receiver Board Module
Line Tracker Sensor Module HW-006 V1.3
[IR and PIR Sensors] Description The HW-006 V1.3 TCRT5000 IR reflex or line tracker sensor module is based on an infrared reflectance sensor. This is typically mounted at the end of a line that follows the robot chassis. This small tracking sensor module can detect not only transitions from light to dark lines but also objects in front of it. It is ideally used for detecting white or black lines., obstacle detection and meter pulse data sampling. Wiring: VCC: Connect the positive wire of the power supply (5V) GND: Connected to the negative wire of the power supply OUT: High/Low level- Output switching signal SPECIFICATIONS Model/Name HW-006 V1.3 Type Tracker Sensor No of Pin 03 Dimension 35*10*8mm Working Voltage 5V DC Peak Operating Current 20mA to 33mA Output  Digital (0,1) Country of Origin China
Out of stockTCRT5000 DUAL LINE TRACKING SENSOR MODULE
[IR and PIR Sensors] This IR reflective sensor Module TCRT5000 IR Sensor is used to detect colour and distance. This sensor module consists on an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver. TCRT5000 Infrared Reflective Sensor Module is often used in line following robots ,object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm, and the central point is about 2.5mm. There is also an on-board potentiometer to adjust the sensitivity. The infrared diode will emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will in the off state and output pin i.e. DO will be LOW. Description of Line Tracking sensor TCRT5000L:- Main chip: LM393, Designed with reflected infrared sensor, indicator light. Built in a potentiometer for sensitivity control. On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L Support 5 V / 3.5 V voltage input On-board signal output instructions, output is high effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection & mid dot; Signal detection sensitivity can adjust Reserve all the way more circuits (P3 voltage drawn) using TCRT5000 infrared reflection sensor test reflection distance: 1 mm to 25 mm Operation voltage: 3.5v-5V Operation current: >15mA wide voltage LM393 comparator output form: digital switch output (0 and 1) a fixed bolt hole, convenient installation. Features of Line Tracking sensor TCRT5000:- Product Name : Infrared Obstacle Avoidance Sensor Module; Module Model : TCRT5000; Working Voltage : DC 3.5-5V Output Channel : 0/1; Detect Distance : 1-25mm; Focal Distance : 2.5mm Chipset : LM393; PCB Size : 32 x 14mm/1.3″ x 0.55″ (L*W) Total Size : 38 x 14 x 18mm/1.5″ x 0.55″ x 0.7″(L*W*H); Material : Electric Part Package Content : 1 x Infrared Obstacle Avoidance Sensor Module
SG90 9g Micro Servo Motor 180° Plastic Gear Servo for Arduino, Robotics & RC Projects
[Servo Motor] The SG90 9g Micro Servo Motor is a lightweight and compact servo designed for Arduino, robotics, RC models, automation systems, and DIY electronics projects. It provides precise position control with approximately 180° rotation and low power consumption. 🔹 Product Description The SG90 9g Micro Servo Motor is one of the most popular servo motors used in electronics, robotics, and educational projects. Featuring a lightweight design and durable plastic gears, it offers accurate position control and reliable operation for a wide range of applications. In addition, the SG90 uses standard PWM control signals, making it compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms. As a result, it is widely used in robotic arms, obstacle-avoiding robots, RC aircraft, pan-tilt camera systems, and automation projects. Because of its compact size and lightweight construction, the servo can be easily integrated into small projects where space and weight are important factors. Furthermore, it delivers smooth motion and precise angular positioning across its operating range. The SG90 supports approximately 0° to 180° rotation and includes servo horns and mounting accessories for quick installation. Moreover, its low power consumption makes it suitable for battery-powered applications. 🔹 Key Features Lightweight 9g micro servo motor Approximately 180° rotation range Durable plastic gear mechanism Standard PWM control interface Fast response and precise positioning Low power consumption Compact and lightweight design Compatible with Arduino, ESP32, Raspberry Pi, and STM32 Easy installation with included accessories Ideal for robotics and RC applications 🔹 Technical Specifications Model: SG90 Motor Type: Micro Servo Motor Operating Voltage: 4.8V – 6V DC Typical Operating Voltage: 5V DC Stall Torque: 2.5 kg·cm Operating Speed: 0.1 sec / 60° Rotation Angle: 0° – 180° Gear Type: Plastic Gear Control Signal: PWM Connector Type: Standard 3-Pin Servo Connector Cable Length: 15cm Weight: 9g Body Material: Plastic 🔹 Applications This servo motor is suitable for: Arduino projects ESP32 projects Robotics applications Robotic arms RC airplanes RC cars and boats Pan-tilt camera systems Automation projects Educational electronics projects 🔹 Package Includes 1 × SG90 9g Micro Servo Motor Servo Horn Set Mounting Screws

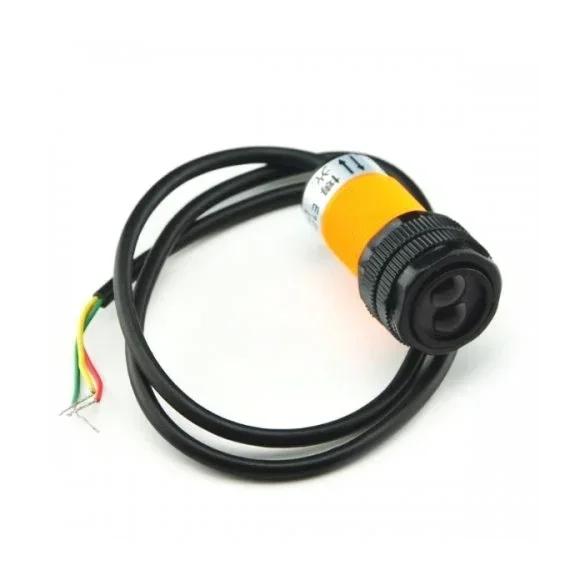

Out of stockE18-D80NK Adjustable Infrared Sensor Switch 3-80cm
[IR and PIR Sensors, Sensors] The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm. The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions. The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm. Connection Red wire: +5V Green wire: GND Yellow wire: Digital output OR Brown wire: +5V Blue wire: GND Black wire: Digital output. Features : Diffuse reflective type. Digital output. Adjustable detection distance. Low consumption. Compact size. Package Includes : 1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

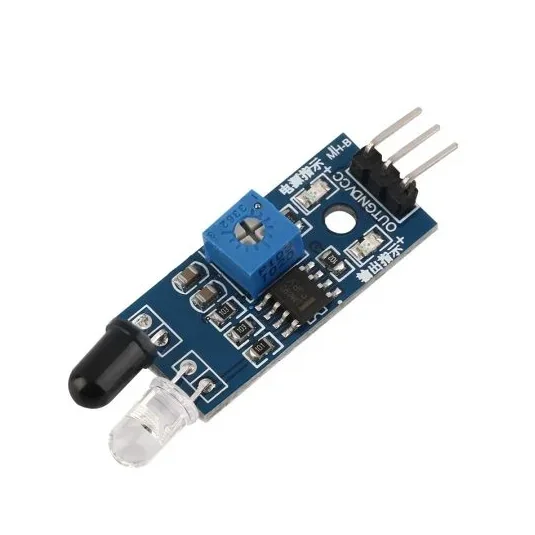

Infrared Obstacle Avoidance IR Sensor Module (Active Low)
[IR and PIR Sensors] Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life. The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm. Circuit Diagram of IR Sensor With Arduino Features: Easy to assemble and use Onboard detection indication The effective distance range of 2cm to 80cm A preset knob to fine-tune distance range If there is an obstacle, the indicator lights on the circuit board. Package Includes : 1 x Infrared Obstacle Avoidance IR Sensor Module (Active Low)
