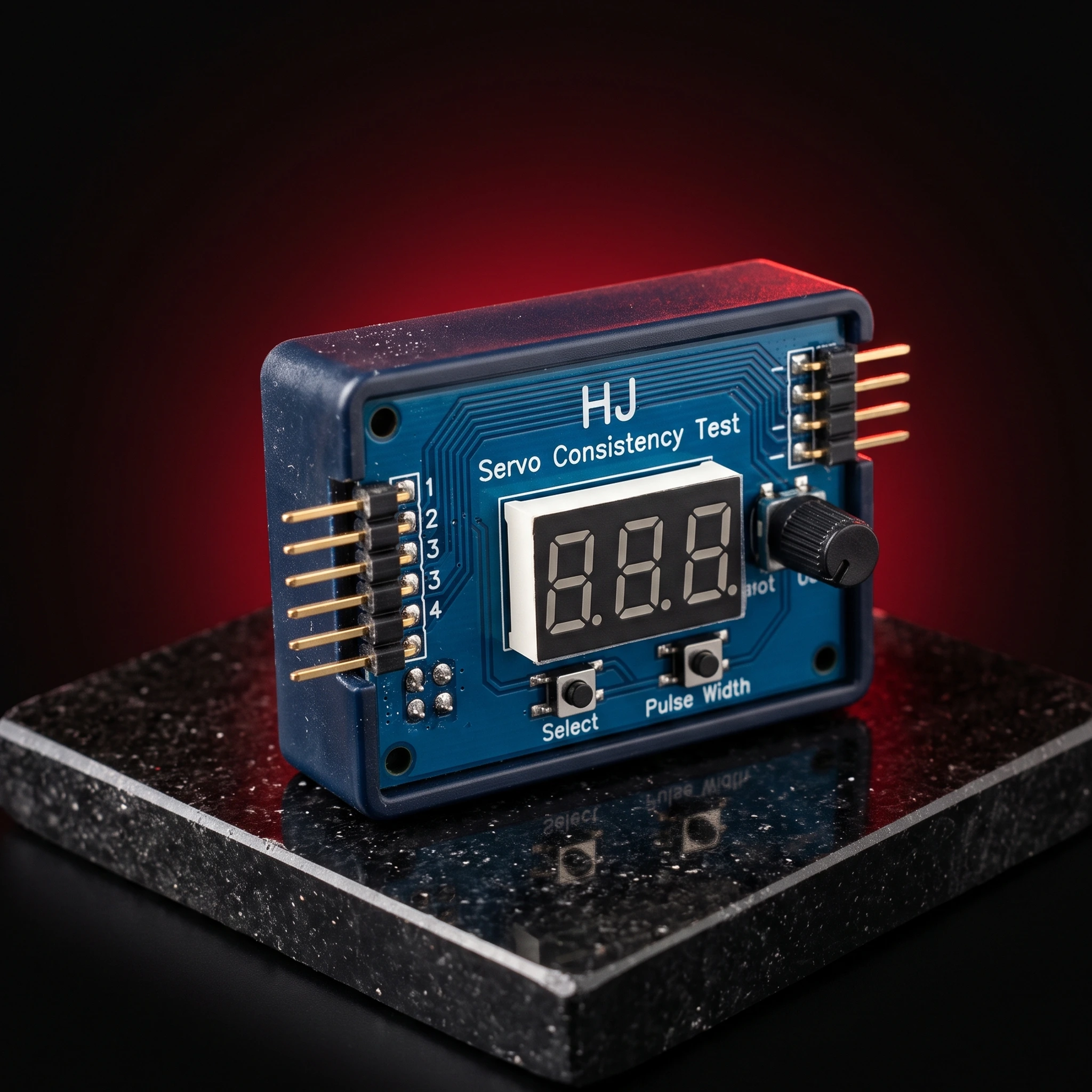

Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control

Description

[Servo Motor] Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible. Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively. Click and order now! Operation Modes :- Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle Manual mode:- Turn the knob with different speed, check the reaction time Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model   Features of Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control :- Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control Operating Voltage: DC 4.8-6V Offer 3 modes to check servos or ESC The Manual Mode allows you to turn the knob to different speeds and check the reaction time The Neutral mode makes the servo go back to the neutral point The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible Connect to up to 3 servos simultaneously Connect up to 3 ESCs to test and compare their reaction time respectively Built with LED indicators Output signal: 1.5ms±0.5ms Size: 36.5 x 31.0 x 22mm

🔹 Key Features

• •[Servo Motor] Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC
• •The Manual Mode allows you to turn the knob to different speeds and check the reaction time
• •The Neutral mode makes the servo go back to the neutral point
• •The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
• •Plus, this servo tester can connect to up to 3 servos simultaneously
• •You can also connect up to 3 ESCs to test and compare their reaction time respectively

🔹 Pin Configuration & Wiring

// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)

#define ENA_PIN 9   // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8   // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7   // Connect to L298N IN2 (Direction / OFF)

void setup() {
  pinMode(ENA_PIN, OUTPUT);
  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);

  // Initialize driver in OFF state
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);
}

void loop() {
  // Soft start: ramp up speed to prevent inrush current spikes
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);

  for (int speed = 100; speed <= 255; speed += 15) {
    analogWrite(ENA_PIN, speed);
    delay(50);
  }

  delay(3000); // Run motor at full speed for 3 seconds

  // Coast to stop
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);

  delay(2000); // Pause for 2 seconds
}

🔹 Applications

This component is engineered and suitable for:

• •DC motor speed regulation and soft start control
• •Robotics drive train and wheel speed adjustment
• •Cooling fans, exhaust blowers, and thermal management
• •Miniature water pumps and aquarium aeration systems
• •DIY electronics projects, automation circuits, and laboratory benches

🔹 Package Includes

• ✓1 × Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control
