Soldering Kit (15-30W)
Variable wattage 15-30W/230V soldering iron. 280–450°C. De-soldering pump, flux paste, solder wick, 5 tips, soldering wire.
Potentiometer 10k / 100k
Rotary/trim pot. Values: 10kΩ / 100kΩ. 3 pins (end A, wiper, end B). Variable voltage divider for ADC. Linear taper 'B'.
Out of stockBench Power Supply 30V 5A Variable
Linear DC bench PSU, 30V × 5A, CV/CC modes, dual LED display.
1K Ohm Rotary Potentiometer Round Shaft 3 Pin Elcon
[Potentiometer] 1KΩ Rotary Potentiometer Round Shaft Elcon The 1KΩ Rotary Potentiometer Round Shaft Elcon is a reliable 3-pin linear rotary potentiometer designed for adjusting electrical parameters such as voltage, current, brightness, motor speed, and other control functions in electronic circuits. By rotating the shaft, the resistance can be smoothly adjusted across its available range, making it suitable for a wide variety of DIY and electronic applications. With its compact 16mm body, 6mm round shaft, and through-hole mounting design, this potentiometer is easy to install on electronic PCBs and control panels. Its linear resistance characteristics make it suitable for applications such as LED brightness control, fan speed control, motor control, power supply adjustment, and general-purpose voltage control. ⭐ Key Features 1KΩ resistance value 3-pin rotary potentiometer Linear potentiometer Smooth rotary adjustment 6mm round shaft 10mm shaft length Compact 16mm body diameter Through-hole mounting Suitable for PCB and electronic circuits Ideal for voltage and resistance adjustment Suitable for DIY and electronic projects Elcon brand 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Resistance Value: 1KΩ Configuration: 3 Pin / Single Gang Tolerance: ±20% Shaft Type: Round Shaft Shaft Diameter: 6mm Shaft Length: 10mm Body Diameter / Width: 16mm Total Height: Approx. 25mm Mounting Type: Through Hole Operating Temperature: -40°C to +80°C Weight: Approx. 8g 🔧 Applications LED Brightness Control Fan Speed Control Motor Speed Control Voltage Adjustment Current Adjustment Power Supply Circuits Audio & Electronic Circuits Arduino Projects DIY Electronics Projects Electronic Prototyping 🛠️ How It Works A potentiometer is a variable resistor with three terminals. The two outer terminals are connected to the resistive track, while the center terminal acts as the wiper. Rotating the shaft changes the wiper position and therefore changes the resistance or output voltage in the circuit. 📦 Package Includes 1 × 1KΩ Rotary Potentiometer Round Shaft Elcon ⚠️ Note Product images are shown for illustrative purposes only and may differ slightly from the actual product. The 1KΩ value, tolerance, dimensions, and shaft length should be verified against the actual product batch before installation.
5K Ohms Rotary Potentiometer Round Shaft 3 Pin Elcon
[Potentiometer] 5KΩ Rotary Potentiometer Round Shaft Elcon The 5KΩ Rotary Potentiometer Round Shaft Elcon is a reliable 3-pin linear rotary potentiometer designed for adjusting electrical parameters such as voltage, current, brightness, motor speed, and other control functions in electronic circuits. By rotating the shaft, the resistance can be smoothly adjusted across its available range, making it suitable for a wide variety of DIY and electronic applications. With its compact 16mm body, 6mm round shaft, and through-hole mounting design, this potentiometer is easy to install on electronic PCBs and control panels. Its linear resistance characteristics make it suitable for applications such as LED brightness control, fan speed control, motor control, power supply adjustment, and general-purpose voltage control. ⭐ Key Features 5KΩ resistance value 3-pin rotary potentiometer Linear potentiometer Smooth rotary adjustment 6mm round shaft 13mm shaft length Compact 16mm body diameter Through-hole mounting Suitable for PCB and electronic circuits Ideal for voltage and resistance adjustment Suitable for DIY and electronic projects Elcon brand 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Resistance Value: 5KΩ Configuration: 3 Pin / Single Gang Tolerance: ±20% Shaft Type: Round Shaft Shaft Diameter: 6mm Shaft Length: 13mm Body Diameter / Width: 16mm Total Height: Approx. 28mm Mounting Type: Through Hole Operating Temperature: -40°C to +80°C Weight: Approx. 8g 🔧 Applications LED Brightness Control Fan Speed Control Motor Speed Control Voltage Adjustment Current Adjustment Power Supply Circuits Audio & Electronic Circuits Arduino Projects DIY Electronics Projects Electronic Prototyping 🛠️ How It Works A potentiometer is a variable resistor with three terminals. The two outer terminals are connected to the resistive track, while the center terminal acts as the wiper. Rotating the shaft changes the wiper position and therefore changes the resistance or output voltage in the circuit. 📦 Package Includes 1 × 5KΩ Rotary Potentiometer Round Shaft Elcon ⚠️ Note Product images are shown for illustrative purposes only and may differ slightly from the actual product. The 5KΩ value, tolerance, dimensions, and shaft length should be verified against the actual product batch
100K Rotary Potentiometer Round Shaft Elcon
[Potentiometer] 100KΩ Rotary Potentiometer Round Shaft Elcon The 100KΩ Rotary Potentiometer Round Shaft Elcon is a reliable 3-pin linear rotary potentiometer designed for adjusting electrical parameters such as voltage, current, brightness, motor speed, and other control functions in electronic circuits. By rotating the shaft, the resistance can be smoothly adjusted across its available range, making it suitable for a wide variety of DIY and electronic applications. With its compact 16mm body, 6mm round shaft, and through-hole mounting design, this potentiometer is easy to install on electronic PCBs and control panels. Its linear resistance characteristics make it suitable for applications such as LED brightness control, fan speed control, motor control, power supply adjustment, and general-purpose voltage control. ⭐ Key Features 100KΩ resistance value 3-pin rotary potentiometer Linear potentiometer Smooth rotary adjustment 6mm round shaft 13mm shaft length Compact 16mm body diameter Through-hole mounting Suitable for PCB and electronic circuits Ideal for voltage and resistance adjustment Suitable for DIY and electronic projects Elcon brand 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Resistance Value: 100KΩ Configuration: 3 Pin / Single Gang Tolerance: ±20% Shaft Type: Round Shaft Shaft Diameter: 6mm Shaft Length: 13mm Body Diameter / Width: 16mm Total Height: Approx. 28mm Mounting Type: Through Hole Operating Temperature: -40°C to +80°C Weight: Approx. 8g 🔧 Applications LED Brightness Control Fan Speed Control Motor Speed Control Voltage Adjustment Current Adjustment Power Supply Circuits Audio & Electronic Circuits Arduino Projects DIY Electronics Projects Electronic Prototyping 🛠️ How It Works A potentiometer is a variable resistor with three terminals. The two outer terminals are connected to the resistive track, while the center terminal acts as the wiper. Rotating the shaft changes the wiper position and therefore changes the resistance or output voltage in the circuit. 📦 Package Includes 1 × 100KΩ Rotary Potentiometer Round Shaft Elcon ⚠️ Note Product images are shown for illustrative purposes only and may differ slightly from the actual product. The 100KΩ value, tolerance, dimensions, and shaft length should be verified against the actual product batch before installation.
10K Rotary Potentiometer Round Shaft 3Pin Elcon
[Potentiometer] 10KΩ Rotary Potentiometer Round Shaft Elcon The 10KΩ Rotary Potentiometer Round Shaft Elcon is a reliable 3-pin variable resistor designed for adjusting electrical parameters such as voltage, current, brightness, motor speed, and other control functions in electronic circuits. By rotating the shaft, the resistance can be smoothly adjusted across its available range, making it suitable for a wide variety of DIY and electronic applications. With its compact 16mm body, 6mm round shaft, and through-hole mounting design, this potentiometer is easy to install on electronic PCBs and control panels. The linear resistance characteristics make it particularly suitable for applications such as LED brightness control, fan speed control, motor control, and general-purpose voltage adjustment. ⭐ Key Features 10KΩ resistance value 3-pin rotary potentiometer Linear potentiometer Smooth rotary adjustment 6mm round shaft Compact 16mm body diameter Through-hole mounting Suitable for PCB and electronic circuits Useful for voltage and current adjustment Suitable for LED, fan and motor control applications Elcon brand 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Resistance Value: 10KΩ Configuration: 3 Pin / Single Gang Tolerance: ±20% Shaft Type: Round Shaft Shaft Diameter: 6mm Shaft Length: 13mm Body Diameter / Width: 16mm Total Height: 30mm Mounting Type: Through Hole Operating Temperature: -40°C to +80°C Weight: Approx. 8g 🔧 Applications LED Brightness Control Fan Speed Control Motor Speed Control Voltage Adjustment Current Adjustment Power Supply Circuits Arduino Projects DIY Electronics Projects Audio & Electronic Circuits Electronic Prototyping 🛠️ How It Works A potentiometer is a variable resistor with three terminals. The two outer terminals are connected to the resistive track, while the center terminal acts as the wiper. Rotating the shaft changes the wiper position and therefore changes the resistance or output voltage in the circuit. 📦 Package Includes 1 × 10KΩ Rotary Potentiometer Round Shaft Elcon ⚠️ Note Product images are shown for illustrative purposes only and may differ slightly from the actual product. The 10KΩ value and ±20% tolerance are based on the supplied product specifications.
1K Ohm Linear Taper 16mm Rotary Potentiometer Elcon
[Potentiometer] Elcon B1K 1KΩ 16mm Rotary Potentiometer – 3 Pin D-Type Shaft The Elcon B1K 1KΩ Rotary Potentiometer is a compact 3-pin linear taper potentiometer designed for adjusting voltage, resistance, tone, brightness, speed, and other electrical parameters in electronic circuits. It has a total resistance of 1KΩ, with the resistance distributed linearly across the rotation of the shaft. The potentiometer can be used as a variable resistor or as a variable voltage divider. The two outer pins provide the full resistance value, while the center pin acts as the wiper and provides an adjustable resistance or voltage depending on the circuit connection. Its D-type shaft provides a secure grip for a compatible knob, while the included nut allows the potentiometer to be securely fixed to a panel or enclosure. The compact 16mm body makes it suitable for PCB and general-purpose electronic applications. ⭐ Key Features 1KΩ total resistance B1K linear taper 3-pin configuration D-type shaft Compact 16mm potentiometer Includes fixing nut Suitable for PCB mounting Can be used as a variable resistor Can be used as a variable voltage divider Suitable for tone and electronic control applications Breadboard compatible according to the supplied specifications 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Potentiometer Value: B1K / 1KΩ Taper: Linear Number of Pins: 3 Shaft Type: D-Type Shaft Diameter: 4mm Shaft Length: 8–10mm Pins Pitch: 4.4mm Dimensions: 25mm × 16mm × 16mm Nut Inner Diameter: 6mm Nut Outer Diameter: 10mm Mounting: PCB / Panel Mount Breadboard Compatible: Yes 🔌 Pin Function Outer Pin 1: Resistive track terminal Center Pin: Wiper / Variable output Outer Pin 3: Resistive track terminal The resistance between the two outer pins remains approximately 1KΩ, while the resistance between the center pin and either outer pin changes as the shaft is rotated. 🔧 Applications Tone Control Audio Circuits Volume & Signal Adjustment LED Brightness Control Motor Speed Control Voltage Adjustment Variable Resistor Applications Arduino Projects DIY Electronics Projects PCB Prototyping General Electronic Control Circuits 🛠️ How It Works When used as a potentiometer, the center pin acts as the adjustable wiper and can provide a variable output across the rotation range. When used as a variable resistor, the wiper can be connected with one of the outer terminals to obtain an adjustable resistance. 📦 Package Includes 1 × Elcon B1K 1KΩ 3-Pin Rotary Potentiometer 1 × Fixing Nut ⚠️ Note Product images are for illustrative purposes only and may differ slightly from the actual product. The supplied specifications state a shaft length of 8–10mm; please verify the exact dimensions against the available product batch before installation.
100K Ohm Linear Taper 16mm Rotary Potentiometer Elcon
[Potentiometer] Elcon B100K 100KΩ 16mm Rotary Potentiometer – 3 Pin D-Type Shaft The Elcon B100K 100KΩ Rotary Potentiometer is a compact 3-pin linear taper potentiometer designed for adjusting voltage, resistance, signal levels, brightness, motor speed, and other electrical parameters in electronic circuits. It has a total resistance of 100KΩ, with the resistance distributed linearly across the rotation of the shaft. The potentiometer can be used as a variable resistor or as a variable voltage divider. The two outer pins provide the full resistance value, while the center pin acts as the wiper and provides an adjustable resistance or voltage depending on the circuit connection. Its D-type shaft provides a secure grip for a compatible knob, while the included nut allows the potentiometer to be securely fixed to a panel or enclosure. The compact 16mm body makes it suitable for PCB and general-purpose electronic applications. ⭐ Key Features 100KΩ total resistance B100K linear taper 3-pin configuration D-type shaft Compact 16mm potentiometer Includes fixing nut Suitable for PCB mounting Can be used as a variable resistor Can be used as a variable voltage divider Suitable for tone and electronic control applications Breadboard compatible according to the supplied specifications 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Potentiometer Value: B100K / 100KΩ Taper: Linear Number of Pins: 3 Shaft Type: D-Type Shaft Diameter: 4mm Shaft Length: 8–10mm Pins Pitch: 4.4mm Dimensions: 25mm × 16mm × 16mm Nut Inner Diameter: 6mm Nut Outer Diameter: 10mm Mounting: PCB / Panel Mount Breadboard Compatible: Yes 🔌 Pin Function Outer Pin 1: Resistive track terminal Center Pin: Wiper / Variable output Outer Pin 3: Resistive track terminal The resistance between the two outer pins remains approximately 100KΩ, while the resistance between the center pin and either outer pin changes as the shaft is rotated. 🔧 Applications Tone Control Audio Circuits Signal Level Adjustment LED Brightness Control Motor Speed Control Voltage Adjustment Variable Resistor Applications Arduino Projects DIY Electronics Projects PCB Prototyping General Electronic Control Circuits 🛠️ How It Works When used as a potentiometer, the center pin acts as the adjustable wiper and provides a variable output across the rotation range. When used as a variable resistor, the wiper can be connected with one of the outer terminals to obtain an adjustable resistance. 📦 Package Includes 1 × Elcon B100K 100KΩ 3-Pin Rotary Potentiometer 1 × Fixing Nut ⚠️ Note Product images are for illustrative purposes only and may differ slightly from the actual product. The supplied specifications state a shaft length of 8–10mm; please verify the exact dimensions against the actual product batch before installation.
5K Ohm Linear Taper 16mm Rotary Potentiometer-Elcon
[Potentiometer] Elcon B5K 5KΩ 16mm Rotary Potentiometer – 3 Pin D-Type Shaft The Elcon B5K 5KΩ Rotary Potentiometer is a compact 3-pin linear taper potentiometer designed for adjusting voltage, resistance, tone, brightness, motor speed, and other electrical parameters in electronic circuits. It has a total resistance of 5KΩ, with the resistance distributed linearly across the rotation of the shaft. The potentiometer can be used as a variable resistor or as a variable voltage divider. The two outer pins provide the full resistance value, while the center pin acts as the wiper and provides an adjustable resistance or voltage depending on the circuit connection. Its D-type shaft provides a secure grip for a compatible knob, while the included nut allows the potentiometer to be securely fixed to a panel or enclosure. The compact 16mm body makes it suitable for PCB and general-purpose electronic applications. ⭐ Key Features 5KΩ total resistance B5K linear taper 3-pin configuration D-type shaft Compact 16mm potentiometer Includes fixing nut Suitable for PCB mounting Can be used as a variable resistor Can be used as a variable voltage divider Suitable for tone and electronic control applications Breadboard compatible according to the supplied specifications 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Potentiometer Value: B5K / 5KΩ Taper: Linear Number of Pins: 3 Shaft Type: D-Type Shaft Diameter: 4mm Shaft Length: 8–10mm Pins Pitch: 4.4mm Dimensions: 25mm × 16mm × 16mm Nut Inner Diameter: 6mm Nut Outer Diameter: 10mm Mounting: PCB / Panel Mount Breadboard Compatible: Yes 🔌 Pin Function Outer Pin 1: Resistive track terminal Center Pin: Wiper / Variable output Outer Pin 3: Resistive track terminal The resistance between the two outer pins remains approximately 5KΩ, while the resistance between the center pin and either outer pin changes as the shaft is rotated. 🔧 Applications Tone Control Audio Circuits Volume & Signal Adjustment LED Brightness Control Motor Speed Control Voltage Adjustment Variable Resistor Applications Arduino Projects DIY Electronics Projects PCB Prototyping General Electronic Control Circuits 🛠️ How It Works When used as a potentiometer, the center pin acts as the adjustable wiper and provides a variable output across the rotation range. When used as a variable resistor, the wiper can be connected with one of the outer terminals to obtain an adjustable resistance. 📦 Package Includes 1 × Elcon B5K 5KΩ 3-Pin Rotary Potentiometer 1 × Fixing Nut ⚠️ Note Product images are for illustrative purposes only and may differ slightly from the actual product. The supplied specifications state a shaft length of 8–10mm; please verify the exact dimensions against the actual product batch before installation.
10K Ohm Linear Taper 16mm Rotary Potentiometer Elcon
[Potentiometer] Elcon B10K 10KΩ 16mm Rotary Potentiometer – 3 Pin D-Type Shaft The Elcon B10K 10KΩ Rotary Potentiometer is a compact 3-pin linear taper potentiometer designed for adjusting voltage, resistance, tone, brightness, motor speed, and other electrical parameters in electronic circuits. It has a total resistance of 10KΩ, with the resistance distributed linearly across the rotation of the shaft. The potentiometer can be used as a variable resistor or as a variable voltage divider. The two outer pins provide the full resistance value, while the center pin acts as the wiper and provides an adjustable resistance or voltage depending on the circuit connection. Its D-type shaft provides a secure grip for a compatible knob, while the included nut allows the potentiometer to be securely fixed to a panel or enclosure. The compact 16mm body makes it suitable for PCB and general-purpose electronic applications. ⭐ Key Features 10KΩ total resistance B10K linear taper 3-pin configuration D-type shaft Compact 16mm potentiometer Includes fixing nut Suitable for PCB mounting Can be used as a variable resistor Can be used as a variable voltage divider Suitable for tone and electronic control applications Breadboard compatible according to the supplied specifications 📋 Technical Specifications Product Type: Rotary Potentiometer Brand: Elcon Potentiometer Value: B10K / 10KΩ Taper: Linear Number of Pins: 3 Shaft Type: D-Type Shaft Diameter: 4mm Shaft Length: 8–10mm Pins Pitch: 4.4mm Dimensions: 25mm × 16mm × 16mm Nut Inner Diameter: 6mm Nut Outer Diameter: 10mm Mounting: PCB / Panel Mount Breadboard Compatible: Yes 🔌 Pin Function Outer Pin 1: Resistive track terminal Center Pin: Wiper / Variable output Outer Pin 3: Resistive track terminal The resistance between the two outer pins remains approximately 10KΩ, while the resistance between the center pin and either outer pin changes as the shaft is rotated. 🔧 Applications Tone Control Audio Circuits Volume & Signal Adjustment LED Brightness Control Motor Speed Control Voltage Adjustment Variable Resistor Applications Arduino Projects DIY Electronics Projects PCB Prototyping General Electronic Control Circuits 🛠️ How It Works When used as a potentiometer, the center pin acts as the adjustable wiper and provides a variable output across the rotation range. When used as a variable resistor, the wiper can be connected with one of the outer terminals to obtain an adjustable resistance. 📦 Package Includes 1 × Elcon B10K 10KΩ 3-Pin Rotary Potentiometer 1 × Fixing Nut ⚠️ Note Product images are for illustrative purposes only and may differ slightly from the actual product. The supplied specifications state a shaft length of 8–10mm; please verify the exact dimensions against the actual product batch before installation.
100K 16mm Linear Taper 6-Pin Dual Gang Rotary Potentiometer
[Potentiometer] The 100K 16mm Linear Taper Dual Gang Rotary Potentiometer is a precision variable resistor designed for accurate voltage and signal adjustment in audio, electronic, and industrial applications. Its dual-gang construction enables two separate circuits to be controlled simultaneously using a single rotating shaft, making it ideal for stereo volume control and dual-channel signal adjustment. Manufactured with high-quality resistive elements and durable metal components, the potentiometer delivers smooth rotation, low noise operation, excellent linearity, and long mechanical life. The 16mm body size provides a compact solution suitable for PCB mounting in amplifiers, mixers, DIY audio systems, control panels, and electronic equipment. The 100KΩ linear taper provides uniform resistance variation throughout the rotation angle, making it suitable for voltage dividers, signal attenuation, and control circuits where linear response is required. With a standard knurled shaft and 6 solder terminals, this potentiometer is easy to install and compatible with a wide variety of control knobs and electronic projects. 🔹 Key Features Dual gang rotary potentiometer 100KΩ linear taper resistance Smooth and precise rotation 16mm compact body 6-pin solder terminal design Low noise operation Long mechanical life Durable metal shaft Easy PCB mounting Suitable for stereo audio control 🔹 Technical Specifications Product Type: Dual Gang Rotary Potentiometer Resistance Value: 100KΩ Taper Type: Linear (B100K) Number of Gangs: Dual Number of Pins: 6 Body Diameter: 16mm Shaft Type: Knurled Metal Shaft Shaft Diameter: 6mm Shaft Length: Approx. 15mm Rotation Angle: Approx. 300° Mounting Type: PCB Through Hole Terminal Type: Solder Pins Power Rating: 0.125W (Typical) Resistance Tolerance: ±20% Operating Temperature: -10°C to +70°C 🔹 Applications Suitable for: Audio amplifiers Stereo volume control Tone control circuits Audio mixers Power amplifiers DIY electronics Signal level adjustment Voltage divider circuits Instrumentation equipment Electronic control panels 🔹 Package Includes 1 × 100K 16mm Linear Taper 6-Pin Dual Gang Rotary Potentiometer
10K Ohm 16mm Linear Taper 6-Pin Dual Gang Rotary Potentiometer
[Potentiometer] 16mm 10KΩ 6-Pin Dual-Gang Rotary Potentiometer The 16mm 10KΩ 6-Pin Rotary Potentiometer is a compact and versatile dual-gang rotary potentiometer designed to control two separate electrical channels simultaneously using a single rotary shaft. With 6 pins in total, each potentiometer section has 3 terminals, making it suitable for stereo audio control, dual-channel signal adjustment, amplifier circuits, tone control, and various DIY electronics applications. By rotating the shaft, the resistance of each potentiometer section can be adjusted smoothly. The dual-gang construction allows both channels to be controlled together, making this potentiometer particularly useful for stereo volume control and other applications requiring synchronized adjustment. ⭐ Key Features 10KΩ resistance value 16mm body diameter 6-pin dual-gang configuration 3 pins per potentiometer section Single rotary shaft controls both gangs Smooth and reliable rotary operation Compact design Suitable for PCB and panel mounting Ideal for stereo and dual-channel applications Suitable for audio and general electronic circuits Compatible with suitable potentiometer knobs 📋 Technical Specifications Product Type: Rotary Potentiometer Resistance Value: 10KΩ Body Diameter: 16mm Configuration: Dual Gang Number of Pins: 6 Pins per Gang: 3 Operation: Single Turn Rotary Shaft Length: 9mm Total Potentiometer Height: 27mm Mounting Type: PCB / Panel Mount Application: Variable Resistance / Voltage Control 🔌 Pin Configuration The potentiometer has 6 pins in total, divided into two independent 3-pin sections: Pins 1, 2 & 3: First potentiometer section Pins 4, 5 & 6: Second potentiometer section Each section consists of two resistive-track terminals and one center wiper terminal. Rotating the shaft moves the wiper and changes the resistance or output voltage. 🔧 Applications Stereo Audio Volume Control Audio Amplifiers Tone Control Circuits Pre-Amplifier Circuits Dual-Channel Signal Adjustment LED Brightness Control Motor Speed Control Power Supply Adjustment 555 Timer Circuits Arduino Projects ESP32 Projects DIY Electronics Projects Audio Equipment Electronic Prototyping 🛠️ How to Use The two outer terminals of each potentiometer section can be connected across the required voltage or signal path, while the center terminal works as the adjustable wiper output. In stereo audio applications, one gang can be used for the left channel and the other gang for the right channel, allowing both channels to be adjusted simultaneously. 📦 Package Includes 1 × 16mm 10KΩ 6-Pin Dual-Gang Rotary Potentiometer ⚠️ Precautions Check the pin configuration before connecting the potentiometer. Do not exceed the electrical limits of the connected circuit. Ensure correct wiring when using both gangs for stereo applications. Use a suitable knob compatible with the shaft. The exact taper and shaft shape may vary depending on the product variant.
47K 16mm Linear Taper 6-Pin Dual Gang Rotary Potentiometer
[Potentiometer] The 47K 16mm Linear Taper Dual Gang Rotary Potentiometer is a high-quality variable resistor designed for precise voltage and signal adjustment in audio and electronic circuits. Its dual-gang construction allows simultaneous control of two independent channels using a single shaft, making it perfect for stereo volume and tone control applications. Equipped with a D-cut metal shaft, the potentiometer provides a secure fit for compatible control knobs, preventing slippage during operation. The 47KΩ linear resistance offers uniform resistance change across the entire rotation angle, making it suitable for signal control, voltage divider circuits, and industrial electronic equipment. Built with high-quality resistive elements and durable metal contacts, it delivers smooth rotation, low noise, excellent stability, and a long mechanical life. The compact 16mm body and 6-pin PCB mounting design allow easy installation in amplifiers, mixers, control panels, and DIY electronic projects. 🔹 Key Features Dual gang rotary potentiometer 47KΩ linear taper (B47K) D-cut metal shaft 6-pin PCB mounting Smooth and precise rotation Low noise operation Long mechanical life Compact 16mm body Durable construction Ideal for stereo audio applications 🔹 Technical Specifications Product Type: Dual Gang Rotary Potentiometer Resistance Value: 47KΩ Taper Type: Linear (B47K) Number of Gangs: Dual Number of Pins: 6 Body Diameter: 16mm Shaft Type: D-Cut Metal Shaft Shaft Diameter: 6mm Shaft Length: Approx. 15mm Rotation Angle: Approx. 300° Mounting Type: PCB Through Hole Terminal Type: Solder Pins Power Rating: 0.125W (Typical) Resistance Tolerance: ±20% Operating Temperature: -10°C to +70°C 🔹 Applications Suitable for: Stereo audio amplifiers Volume control circuits Tone control circuits Audio mixers Home audio systems DIY electronics Signal level adjustment Voltage divider circuits Instrumentation equipment Electronic control panels 🔹 Package Includes 1 × 47K 16mm Linear Taper Dual Gang Rotary Potentiometer with D-Cut Shaft

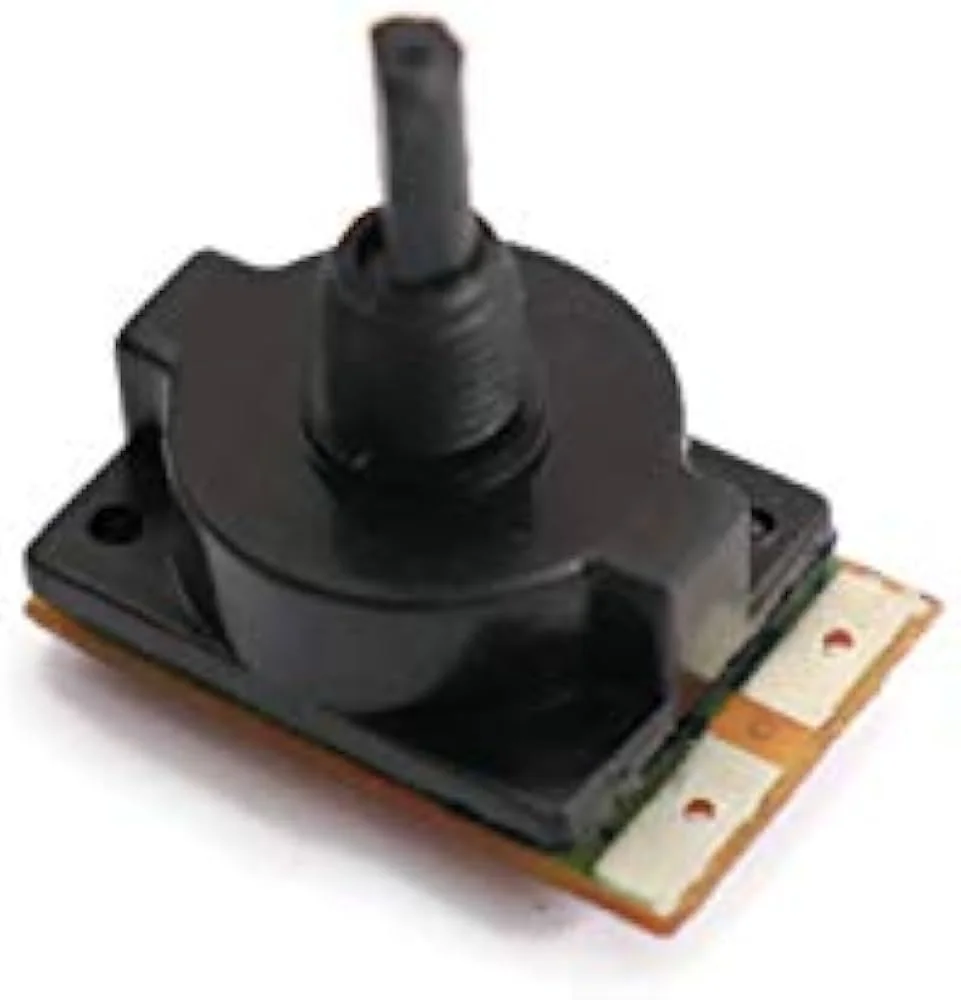

Dimmable LED Light Dimmer switch brightness manual adjustable controller
[LED Controller] Description Dimmers are devices connected to a light fixture and used to lower the brightness of the light. By changing the voltage waveform applied to the lamp, it is possible to lower the intensity of the light output. Modern dimmers are built from semiconductors instead of variable resistors because they have higher efficiency. A variable resistor would dissipate power as heat and acts as a voltage divider. Since semiconductor or solid-state dimmers switch quickly between a low resistance “on” state and a high resistance “off” state, they dissipate very little power compared with the controlled load. Increases energy efficiency Control the lighting system Provides effective mood lighting system Ensures the longevity of your lighting devices Easy installation.
Out of stockDigital LDR Module
[Light Sensors] The Digital LDR Module is used to detect the presence of light / measuring the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of signal detection can be adjusted using the potentiometer. Use it to detect the light brightness in your environment and decide to switch OFF or ON light? Or maybe to adjust the brightness of the LED of your house? You can adjust the threshold (sensitivity) of the digital output by tuning the onboard variable resistor (potentiometer). Simple usage as it is the digital output, so you will know is the light present and decide what to do with it. It comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides an LDR, high sensitivity and commonly being used for light detection. The module comes with a power LED and a status LED as an indicator. LDR Module Photosensitive resistor module most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity. Features – LM393 based design. Can detect ambient brightness and light intensity. Adjustable sensitivity (via blue digital potentiometer adjustment). Output Digital – 0V to 5V, Adjustable trigger level from preset. LEDs indicating output and power. Operating Voltage: 3.3V to 5V DC. Operating Current: 15ma. How it works 1. Module light conditions or light intensity reach the set threshold, DO port output high when the external ambient light intensity exceeds a set threshold, the module D0 output low; 2. Digital output D0 directly connected to the MCU, and detect high or low TTL, thereby detecting ambient light intensity changes; 3. Digital output module DO can directly drive the relay module, which can be composed of a photoelectric switch. Pin details VCC ↔ 3.3V to 5V DC. GND ↔ Ground. DO ↔ Digital Output.
Out of stockPS2 Joystick Module Breakout Sensor
[Breakout Board] Dual Axis XY Joystick Module This is JoyStick Module PS2 Breakout Sensor very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is press down. With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the “hat”. It also contains a switch that is press-able by pushing the “hat”.It also contains a switch that is press-able by pushing the “hat” down. Similar to the XBOX controller. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses the 5V power supply, and value, when reading through analog input, would be about 2.5V, a value will increase with joystick movement and will go up till maximum 5V; the value will decrease when the joystick is moved in other direction till 0V. Applications: 1. As square wave signal generator which generates a square wave signal 2. To provide a signal to the stepping motor driver 3. Adjustable pulse generation for chip use 4. Produce variable pulse signal, the control-related circuit (PWM dimming, speed) Module Description: Frequency is divided into three ranges: 1. XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz-999Hz 2. XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz-99.9KHz 3. X.X.X.(there is three decimal point): the smallest unit is 1Khz; the range 1KHz-150KHz Frequency Display Example: 1. ”100″ indicates that the PWM output pulse of 100Hz 2. ”54.1″ indicates that the PWM output pulse of 54.1KHz 3. ”1.2.4.” Indicates that the PWM pulse output 124KHz 4. Duty Cycle in the range:0 to 100 5. Three frequencies duty cycle is the same, all the parameters are non-volatile Features: 2.54mm pin interface leads Long service life and stable performance Standard interface and electronic building blocks Widely use in Arduino DIY projects Cross rocker as a two-way 10K resistor, with the rocker in a different direction.
Out of stockL298N 2A Based Motor Driver Module
[Brushed DC motor Driver] L298 Motor Driver Module | 2A Dual Channel PWM Control L298 Motor Driver Module, 2A Dual Channel total 4A, PWM Control for motors variable speed, with back EMF protection, versatile for Robotics Arduino Raspberry PI. It is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Current Sense for each motor. Heatsink for better performance. Power-On LED indicator. Driver chip: L298 dual H-bridge driver chip. Operates up to 35V DC Drive part of the peak current Io: 2A / Bridge Logical part of the terminal power supply range Vss :4.5V-5.5V Logical part of the operating current range: 0 ~ 36mA Maximum power consumption: 20W

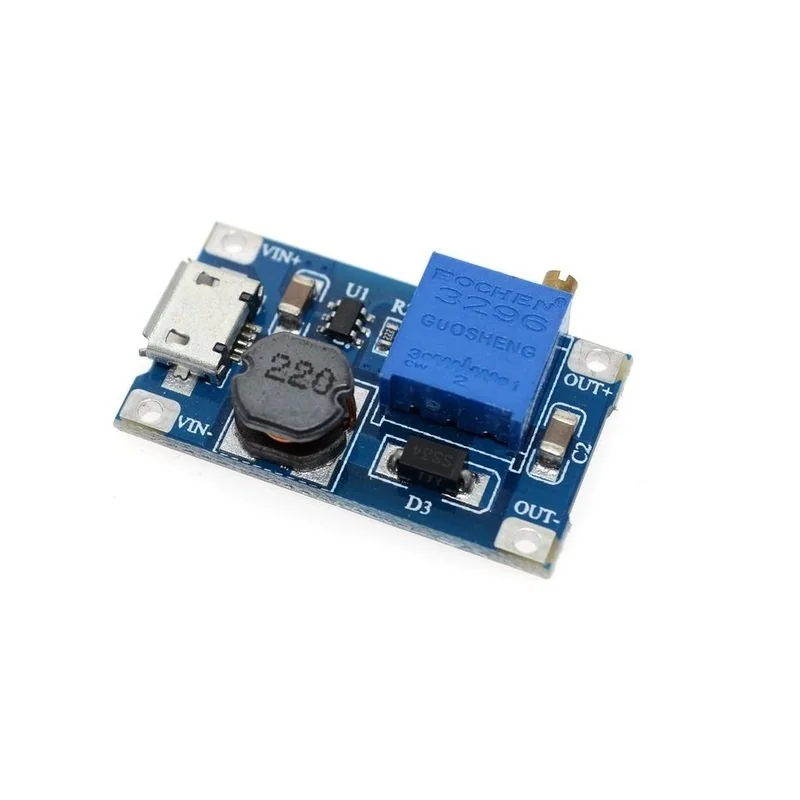

Out of stockMT3608 2A DC-DC Boost Converter Step Up Module with micro usb
[Step UP Buck Converter] This is XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB. All network small adjustable boost module easily installed in a variety of small equipment. This Multipurpose tiny and very cheap voltage booster can be very useful in your various DIY project as it has a variable output voltage range from 5.5V DC to 28V DC at up to peak 2A of current capacity. Additionally, the module has a Micro-USB input voltage port so you can get the input to the module from various sources like computer port, Mobile phone, Power Banks etc. Note: This Product is available in two different variants (XY-016 and HW-183) with the same working we will ship it randomly. Specifications: Max. Output Current (A) 2 Input Voltage (V) 2 to 24 Maximum Output Voltage (V) > 28 Efficiency >93% Length (mm) 31 Width (mm) 17.5 Height (mm) 7 Weight (gm) 4 Applications: The module can be used in any application which needs voltage greater than 5V up to 28V with the maximum current requirement of 2A Measures : This module is a step-up module, the output voltage is greater than the input voltage. Peak current output current should not exceed 2A. Package Includes: 1 x XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB
