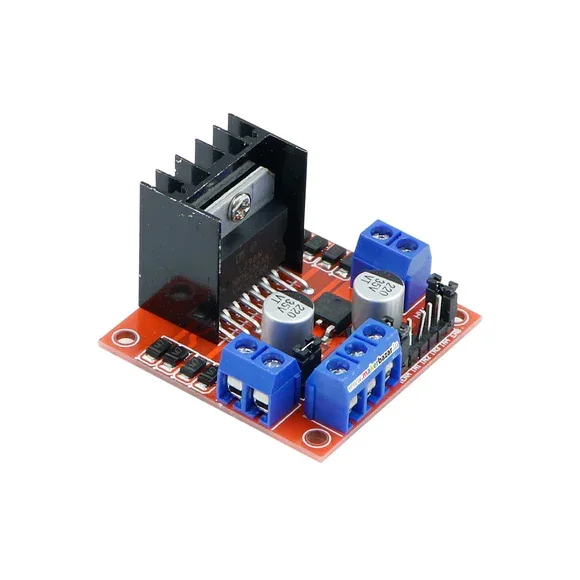

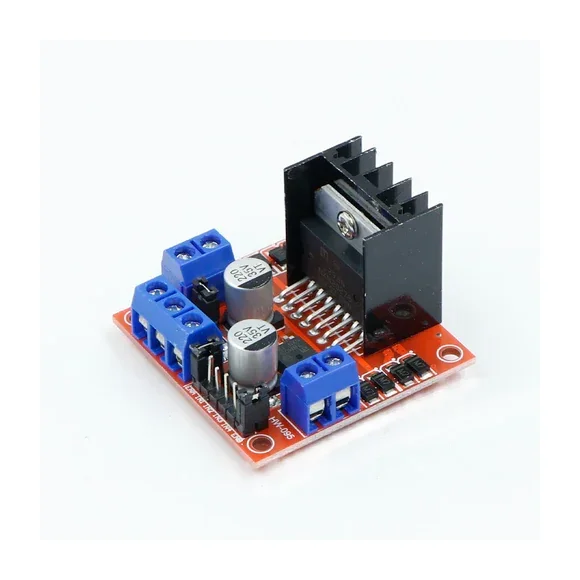

L298N 2A Based Motor Driver Module

Description

[Brushed DC motor Driver]   L298 Motor Driver Module | 2A Dual Channel PWM Control L298 Motor Driver Module, 2A Dual Channel total 4A, PWM Control for motors variable speed, with back EMF protection, versatile for Robotics Arduino Raspberry PI. It is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Current Sense for each motor. Heatsink for better performance. Power-On LED indicator. Driver chip: L298 dual H-bridge driver chip. Operates up to 35V DC Drive part of the peak current Io: 2A / Bridge Logical part of the terminal power supply range Vss :4.5V-5.5V Logical part of the operating current range: 0 ~ 36mA Maximum power consumption: 20W

🔹 Key Features

• •[Brushed DC motor Driver] &nbsp
• •Current Sense for each motor
• •Heatsink for better performance
• •Power-On LED indicator
• •Driver chip: L298 dual H-bridge driver chip

🔹 Technical Specifications

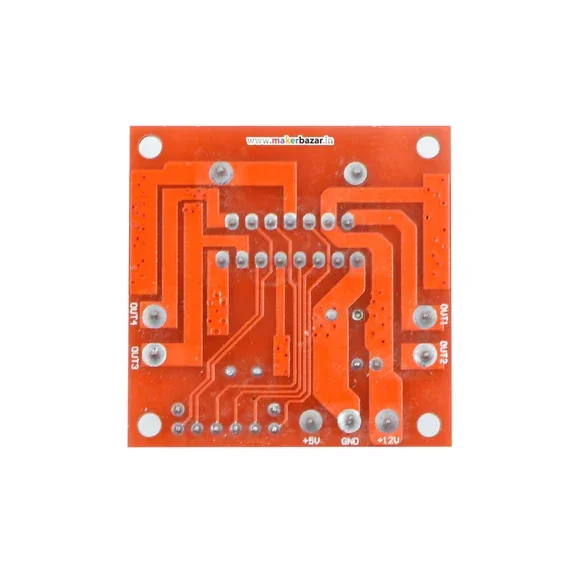

🔹 Pin Configuration & Wiring

// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)

#define ENA_PIN 9   // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8   // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7   // Connect to L298N IN2 (Direction / OFF)

void setup() {
  pinMode(ENA_PIN, OUTPUT);
  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);

  // Initialize driver in OFF state
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);
}

void loop() {
  // Soft start: ramp up speed to prevent inrush current spikes
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);

  for (int speed = 100; speed <= 255; speed += 15) {
    analogWrite(ENA_PIN, speed);
    delay(50);
  }

  delay(3000); // Run motor at full speed for 3 seconds

  // Coast to stop
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);

  delay(2000); // Pause for 2 seconds
}

🔹 Applications

This component is engineered and suitable for:

• •DC motor speed regulation and soft start control
• •Robotics drive train and wheel speed adjustment
• •Cooling fans, exhaust blowers, and thermal management
• •Miniature water pumps and aquarium aeration systems
• •DIY electronics projects, automation circuits, and laboratory benches

🔹 Package Includes

• ✓1 × L298N 2A Based Motor Driver Module
