All products · 24 of 1440
Electronics, sensors, robotics kits, PC components, peripherals — everything Unik Systems carries, in one place.
Kapton 25mm x 33m High Temperature Resistant Tape
[Kapton Tapes] Kapton tape is a polyimide film first developed by DuPont in the 1960s. It remains stable at an extremely wide range of temperatures from -269˚C to 260˚C and has been an industry-standard due to its excellent electrical, thermal, chemical and mechanical properties. This enables the film to withstand extreme temperatures, vibration, and other demanding environments. This Kapton 50mm x 33m High-Temperature Resistant Tape for 3D Printers is a polyester film tape with a high-temperature resistant adhesive. Primarily used to hold transfer sheets in place while sublimating onto a variety of items and hold the polymer plate on the heating platen in the hot foil stamping. Excellent heat & solvent resistance. Minimal shrinkage after baking and clean removal. Due to Kapton tape’s large range of temperature stability and electrical isolation ability, it is used during the manufacturing and final assembly of electronic components. It acts as a protective layer that isolates and prevents the electrostatic discharge of sensitive components, also protecting and restraining components during high temp applications and reflow soldering procedures. ABS and Kapton adhere extremely well to one another, making Kapton tape a perfect 3D printing bed surface layer. It is usually applied to a glass or aluminum bed surface, where extruded ABS filament adheres to the surface. Specification and Features: Material: Polyimide Spindle Type: Roll Tape Length: 33m TapeWidth: 25mm Colour: Metallic Brown Temperature Range: 200ºC High-quality product from a well-known brand Package Includes: 1 x Kapton 25mm x 33m High-Temperature Resistant Tape for 3D Printers Note: Product Images are shown for illustrative purposes only and may differ from the actual product

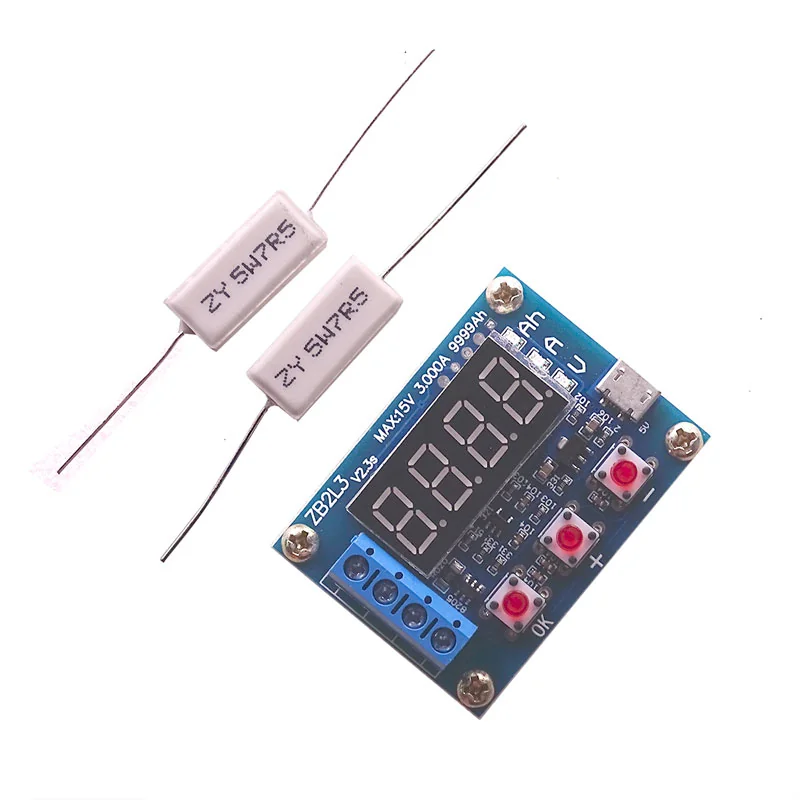

Out of stockZB2L3 18650 Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester Analyzer
[Battery Capacity Tester] Description: Material: Electrical components Color: See pictures ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650 Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge Maximum capacity statistics support 9999Ah (9999000mAh) Automatically identifying and developing appropriate battery termination voltage can also be manually adjusted Specifications: Power supply voltage: DC4.5-6V (micro USB connector) Operating Current: less than 70mA Discharge voltage: 1.00V-15.00V 0.01V resolution Termination voltage range: 0.5-11.0V Supported by current: 3.000A 0.001A resolution Maximum voltage measurement error: 1% + 0.02V Maximum current measurement error: 1.5% + – 0.008A Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on. Board size: 50mmX37mm Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height) Instructions: 1. The first test should be a fully charged battery. 2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage. 3. Direct start test need only one press of the “OK” button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing “+” or “-” buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the “OK “start testing. 4. After the start of the test the tester will control the load of the electronic switch is turned on, the test data shows that the process will release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the press “OK” to terminate flashing allows stable data display, press again “OK” button to return to the power-on state can just replace the battery test the next section …… Error codes and their meanings: Err1: battery voltage is above 15V Err2: battery voltage is lower than the termination voltage Err3: Battery can not afford to load or discharge current line too much resistance Err4: overcurrent (current exceeds 3.1A) Err5:Improper use or incorrect wiring has caused the device to be burned out and cannot be used (current sampling or control switch MOS burned out). Note: Use the resistance of the discharge process, resistive load will seriously heat, please pay attention to safety! This circuit voltage in order to improve the measurement accuracy, specially designed DC bias, when the terminal displays nothing then a small voltage does not affect the actual measurement, if you are shorting the input terminals (absolute 0V) will show 0 No retail package Quantity:1Pc Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!! Package Content: 1Pc x battery capacity tester 2Pc x Load resistor Power Battery Capacity Tester LED Display Micro USB Li-ion Lithium 18650 External Load Battery Discharge Testing Analyzer
High Quality Ultra Flexible 18AWG Silicone Wire 1m (Red) + 1m (Black)
[Silicon Wire] The High-Quality 18AWG Silicone Wire 1m (Red) + 1m (Black) pair has a pretty big diameter as compared to the normal 18AWG wire used in RC projects for serving its specific purpose. This wire has low resistance and high current carrying capacity. These are also used in LiPO batteries to deliver power to ESC’s. Ideal for your RC project. It is super flexible and soft with a high strand count which means it is great for use in restrictive and compact areas. The wire is the first priority tool for carrying current from one circuit to other while their current carrying capacity is dependent upon the size of the wire. So the High Quality 18AWG Silicone Wire 1m (Red) + 1m (Black) both has the considerable diameter to suit your application. Please find out our more cable and wires. Click here Wires with the wide variety of silicon wire gauges and colors to suit your applications are available The 18AWG High Temperature Silicone Wire is a premium-quality flexible electrical cable designed for low to medium current applications requiring excellent flexibility and high-temperature resistance. Manufactured using high-purity tinned copper conductors with soft silicone rubber insulation, this wire provides outstanding electrical conductivity, corrosion resistance, and long service life. Rated for 600V and capable of operating continuously at temperatures up to 200°C, this silicone wire is suitable for battery packs, RC models, drones, LED lighting, robotics, power supplies, automotive wiring, solar systems, and DIY electronic projects. The tinned copper conductor ensures efficient current transfer with minimal voltage drop while resisting oxidation and corrosion. Its ultra-flexible silicone insulation allows easy routing through tight spaces and provides excellent durability in demanding environments. This package includes 1 meter of Red wire and 1 meter of Black wire, making it ideal for positive and negative wiring in electronic and electrical applications. ⭐ Features Premium 18AWG silicone insulated wire High-purity tinned copper conductor Ultra-flexible silicone insulation Rated for 600V operation Heat resistant up to 200°C Excellent electrical conductivity Corrosion-resistant tinned copper strands Easy to strip, solder, and terminate Soft, durable, and wear-resistant insulation Suitable for indoor and outdoor applications 📋 Technical Specifications Product Type: High Temperature Silicone Wire Wire Gauge: 18 AWG Conductor Material: Tinned Copper Insulation Material: High Temperature Silicone Rubber Rated Voltage: 600V Rated Temperature: 200°C Rated Current: 8A (Typical) Wire Type: Flexible Multi-Strand Marking: 18AWG 600V 200°C Wire Color: Red & Black Length: 1 Meter Red + 1 Meter Black (Total 2 Meters) 🔧 Applications Suitable for: Lithium Battery Packs RC Cars & RC Boats FPV Drones Model Aircraft Solar Power Systems LED Lighting Power Supplies Robotics Projects Arduino Projects ESP32 Projects Raspberry Pi Projects Automotive Wiring Electric Scooters & E-Bikes DIY Electronics Laboratory Equipment Industrial Control Panels 📦 Package Includes 1 × 18AWG High Temperature Silicone Wire – Red (1 Meter) 1 × 18AWG High Temperature Silicone Wire – Black (1 Meter)
High Quality Ultra Flexible 16AWG Silicone Wire 1m (Red) + 1m (Black)
[Silicon Wire] The High-Quality 16AWG Silicone Wire 1m (Red) + 1m (Black) pair has a pretty big diameter as compared to the normal 20AWG wire used in RC projects for serving its specific purpose. This wire has low resistance and high current carrying capacity. These are also used in LiPO batteries to deliver power to ESC’s. Ideal for your RC project. It is super flexible and soft with a high strand count which means it is great for use in restrictive and compact areas. The wire is the first priority tool for carrying current from one circuit to other while their current carrying capacity is dependent upon the size of the wire. So the High Quality 16AWG Silicone Wire 1m (Red) + 1m (Black) both has the considerable diameter to suit your application. Please find out our more cable and wires. Click here Wires with the wide variety of silicon wire gauges and colors to suit your applications are available The 16AWG High Temperature Silicone Wire is a premium-quality flexible electrical cable designed for high-current and high-temperature applications. Manufactured using high-purity tinned copper conductors with soft silicone rubber insulation, this wire offers excellent flexibility, superior electrical conductivity, and outstanding resistance to heat, moisture, chemicals, and aging. Rated for 600V and capable of operating at temperatures up to 200°C, this silicone wire is ideal for battery packs, RC models, drones, solar power systems, automotive wiring, LED lighting, power supplies, robotics, and various industrial and DIY electronic projects. The tinned copper conductor provides low resistance and excellent corrosion protection, ensuring efficient power transmission and long service life. Its ultra-flexible silicone insulation allows easy routing and installation, even in confined spaces or moving applications. This package includes 1 meter of Red wire and 1 meter of Black wire, making it perfect for positive and negative wiring in electronic and electrical projects. ⭐ Features Premium 16AWG silicone insulated wire High-purity tinned copper conductor Ultra-flexible silicone insulation Rated for 600V operation Heat resistant up to 200°C High current carrying capacity Excellent corrosion resistance Easy to strip, solder, and terminate Soft and durable construction Suitable for indoor and outdoor applications 📋 Technical Specifications Product Type: High Temperature Silicone Wire Wire Gauge: 16 AWG Conductor Material: Tinned Copper Insulation Material: High Temperature Silicone Rubber Rated Voltage: 600V Rated Temperature: 200°C Rated Current: 12.5A Wire Type: Flexible Multi-Strand Marking: 16AWG 600V 200°C Wire Color: Red & Black Length: 1 Meter Red + 1 Meter Black (Total 2 Meters) 🔧 Applications Suitable for: Lithium Battery Packs RC Cars & RC Boats FPV Drones Model Aircraft Solar Power Systems LED Lighting Power Supplies Robotics Projects Arduino Projects ESP32 Projects Raspberry Pi Projects Automotive Wiring Electric Bicycles & Scooters DIY Electronics Laboratory Equipment Industrial Control Panels 📦 Package Includes 1 × 16AWG High Temperature Silicone Wire – Red (1 Meter) 1 × 16AWG High Temperature Silicone Wire – Black (1 Meter)
High Quality Ultra Flexible 12AWG Silicone Wire 1m (Red) + 1m (Black)
[Silicon Wire] The High-Quality 12AWG Silicone Wire 1m (Red) + 1m (Black) pair has a pretty big diameter as compared to the normal 20AWG wire used in RC projects for serving its specific purpose. This wire has low resistance and high current carrying capacity. These are also used in LiPO batteries to deliver power to ESC’s. Ideal for your RC project. It is super flexible and soft with a high strand count which means it is great for use in restrictive and compact areas. The wire is the first priority tool for carrying current from one circuit to other while their current carrying capacity is dependent upon the size of the wire. So the High Quality 12AWG Silicone Wire 1m (Red) + 1m (Black) both has the considerable diameter to suit your application. Please find out our more cable and wires. Click here Wires with the wide variety of silicon wire gauges and colors to suit your applications are available Features : Super Flexible. High Strand Count. Pure Silicone Outer. Cul Standard: 12AWG Material: Tinned Copper Construction AWG: 680/0.8± 0.005mm Nominal Voltage: 600V Nominal Temprature: 200°C Nominal Current: 34A Marking: 12awg 600V 200°CDue to the use of ultra-fine tinned copper wire (0.08mm diameter), silicone wire can withstand high temperatures and maintain flexibility, allowing it to endure high current operation over the long term. Silicone wire is a flexible, durable, and heat-resistant electrical wire commonly used in high-temperature environments and demanding applications. Its insulation is made from silicone rubber, offering superior resistance to abrasion, chemicals, and extreme temperatures ranging from -60°C to 200°C. This wire is ideal for robotics, automotive, aerospace, and electronic projects due to its flexibility and reliability. Silicone wire typically features stranded copper conductors, ensuring excellent conductivity and durability. It is also flame-retardant, weather-resistant, and suitable for both indoor and outdoor use. Its versatility and high-performance properties make it a popular choice for professional and DIY electrical applications. Package Includes : 1 x High Quality 12AWG Silicone Wire 1m (Red) 1 x High Quality 12AWG Silicone Wire 1m (Black)

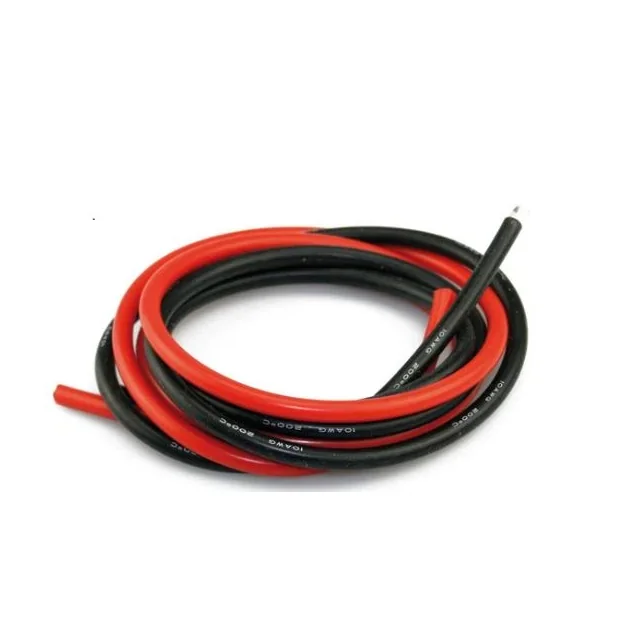

High Quality Ultra Flexible 10AWG Silicone Wire 1m (Black) + 1m (Red)
[Silicon Wire] High Quality Ultra Flexible 10AWG Silicone Wire 1m (Black) + 1m (Red) The High-Quality 10AWG Silicone Wire 1m (Red) + 1m (Black) pair has a pretty big diameter as compared to the normal 20AWG wire used in RC projects for serving its specific purpose. This wire has low resistance and high current carrying capacity. These are also used in LiPO batteries to deliver power to ESC’s. Ideal for your RC project. It is super flexible and soft with a high strand count which means it is great for use in restrictive and compact areas. The wire is the first priority tool for carrying current from one circuit to other while their current carrying capacity is dependent upon the size of the wire. So the High Quality 12AWG Silicone Wire 1m (Red) + 1m (Black) both has the considerable diameter to suit your application. Please find out our more cable and wires. Click here Wires with the wide variety of silicon wire gauges and colors to suit your applications are available Features : Cul Standard: 10AWG Material: Tinned Copper Construction AWG: 1050/0.8± 0.005mm Nominal Voltage: 600V Nominal Temprature: 200°C Nominal Current: 53A Marking: 10awg 600V 200°CDue to the use of ultra-fine tinned copper wire (0.08mm diameter), silicone wire can withstand high temperatures and maintain flexibility, allowing it to endure high current operation over the long term. Silicone wire is a flexible, durable, and heat-resistant electrical wire commonly used in high-temperature environments and demanding applications. Its insulation is made from silicone rubber, offering superior resistance to abrasion, chemicals, and extreme temperatures ranging from -60°C to 200°C. This wire is ideal for robotics, automotive, aerospace, and electronic projects due to its flexibility and reliability. Silicone wire typically features stranded copper conductors, ensuring excellent conductivity and durability. It is also flame-retardant, weather-resistant, and suitable for both indoor and outdoor use. Its versatility and high-performance properties make it a popular choice for professional and DIY electrical applications. Package Includes : 1 x High-Quality 10AWG Silicone Wire 1m (Black) 1 x High-Quality 10AWG Silicone Wire 1m (Red)
Micro 130 DC Motor 3V-6V High Speed Brushed DC Motor (9000–13000 RPM)
[General DC Motor] The Micro 130 DC Motor is a compact, lightweight, and high-performance brushed DC motor widely used in hobby electronics, robotics, educational kits, and battery-powered devices. Operating on 3V to 6V DC, it delivers a no-load speed of 9,000–13,000 RPM, making it suitable for applications requiring high-speed rotary motion in a compact form factor. Designed with a durable metal housing and a precision 2mm output shaft, this motor provides smooth operation, stable performance, and excellent reliability. Its compact dimensions make it easy to integrate into small electronic projects where space is limited. The motor can be easily connected to Arduino, Raspberry Pi, ESP32, motor driver modules, and other microcontroller platforms, making it an excellent choice for beginners, students, hobbyists, and professionals. Whether you're building a robot, smart car, mini fan, science experiment, or replacing a toy motor, the Micro 130 DC Motor offers dependable performance and long service life. ⭐ Features Compact and lightweight Micro 130 brushed DC motor Operating voltage from 3V to 6V DC High-speed operation up to 13,000 RPM Durable metal housing for long service life Precision 2mm output shaft Smooth and stable performance Low power consumption Easy two-wire connection Supports clockwise and counter-clockwise rotation Ideal for battery-powered applications Perfect for DIY electronics, robotics, and educational projects 📋 Technical Specifications Product Type: Brushed DC Motor Model: Micro 130 Operating Voltage: 3V – 6V DC Motor Speed: 9,000–13,000 RPM (No Load) Motor Type: Brushed DC No Load Current: 0.5A – 0.9A Shaft Diameter: 2mm Shaft Length: 8mm Rotation Direction: Clockwise (CW) / Counter-Clockwise (CCW) by reversing supply polarity Terminal Type: Solder Tabs Housing Material: Metal Weight: Approx. 18g 🔧 Applications The Micro 130 DC Motor is suitable for a wide range of applications, including: Robotics Projects Arduino Projects Raspberry Pi Projects ESP32 Projects RC Cars Toy Vehicles DIY Electronics Mini Cooling Fans Small Water Pumps Educational STEM Kits Science Experiments Battery-Operated Devices Automation Projects Prototype Development Hobby Electronics 📦 Package Includes 1 × Micro 130 DC Motor (3V–6V)Note: Product images are for reference only. The actual product may differ slightly due to manufacturing revisions or supplier changes. For bulk purchases, we recommend ordering a sample first or contacting customer support to verify the latest product images and specifications.

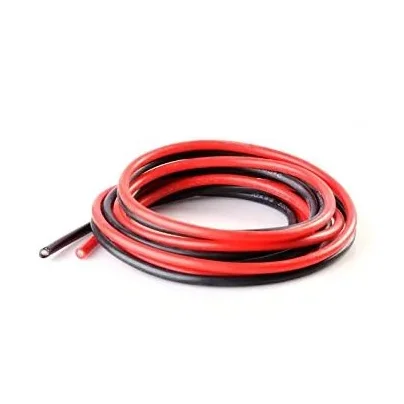

High Quality Ultra Flexible 14AWG Silicone Wire 1m (Red) + 1m (Black)
[Silicon Wire] The High-Quality 14AWG Silicone Wire 1m (Red) + 1m (Black) pair has a pretty big diameter as compared to the normal 20AWG wire used in RC projects for serving its specific purpose. This wire has low resistance and high current carrying capacity. These are also used in LiPO batteries to deliver power to ESC’s. Ideal for your RC project. It is super flexible and soft with a high strand count which means it is great for use in restrictive and compact areas. The wire is the first priority tool for carrying current from one circuit to other while their current carrying capacity is dependent upon the size of the wire. So the High Quality 14AWG Silicone Wire 1m (Red) + 1m (Black) both has the considerable diameter to suit your application. Please find out our more cable and wires. Click here Wires with the wide variety of silicon wire gauges and colors to suit your applications are available Features : Cul Standard: 14AWG Material: Tinned Copper Construction AWG: 400/0.8± 0.005mm Nominal Voltage: 600V Nominal Temprature: 200°C Nominal Current: 20A Marking: 14awg 600V 200°C Due to the use of ultra-fine tinned copper wire (0.08mm diameter), silicone wire can withstand high temperatures and maintain flexibility, allowing it to endure high current operation over the long term.Silicone wire is a flexible, durable, and heat-resistant electrical wire commonly used in high-temperature environments and demanding applications. Its insulation is made from silicone rubber, offering superior resistance to abrasion, chemicals, and extreme temperatures ranging from -60°C to 200°C. This wire is ideal for robotics, automotive, aerospace, and electronic projects due to its flexibility and reliability. Silicone wire typically features stranded copper conductors, ensuring excellent conductivity and durability. It is also flame-retardant, weather-resistant, and suitable for both indoor and outdoor use. Its versatility and high-performance properties make it a popular choice for professional and DIY electrical applications. Similar Products Package Includes : 1 x High Quality 14AWG Silicone Wire 1m (Red) 1 x High Quality 14AWG Silicone Wire 1m (Black)

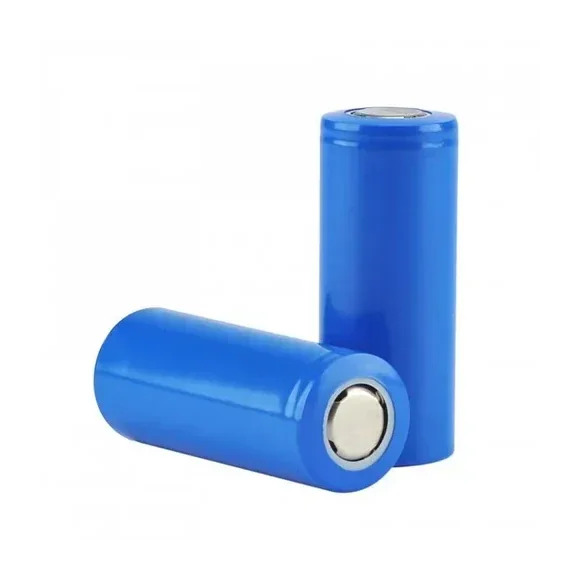

Out of stock32700 32650 3.2V Rechargeable 6000mAh LifePO4 Battery Cell for EV
[LiFePO4 Battery Cell] 32700 32650 3.2 V 6000 MAH LiFePO4 Battery This Standard 32700 32650 3.2 V Rechargeable 6000mAh LifePO4 Battery Cell is a single cell powerful battery cell with a massive 6000 mAh capacity. This LifePO4 battery is very convenient to install in your project where 3.2 Volt with high capacity is needed. The Standard 6000mAh 3.2V Rechargeable LifePO4 Battery is a source of power for various portable devices including flashlights, hobby transmitters, and receivers, etc. This Battery can be the best Replacement to the normal Non-Rechargeable AA Battery used in many applications such as in RC Transmitter/Reciever Remote, which can make your flight driving experience very cost-effective and efficient in terms of power output than that of conventional AA batteries. IMPORTANT: Never completely discharge the LifePO4 battery ( below 2.5V under load ). Charge fully to 4.2V before first use. Never attach any metal moving part like a magnet to the battery contact. Never use force to install (insert) LifePO4 battery. Do not use old and new battery cells together. Use only a high-quality battery charger. Do not expose to heat. Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts). Keep battery that is not in use in the plastic holder (or any insulating [plastic] container). Do not charge the battery over 4.22V (another reason to use a high-quality battery charger). Don’t charge unattended. Do not store your LifePO4 batteries fully charged (for an extended period of time). Store in a cold and dry place at approximately 3.7V (storage charge). After the battery is discharged-don’t leave it discharged, charge it as soon as possible. FEATURES: Shape: Cylindrical Battery Battery Type: Lithium-Ion Rechargeable Battery High performance and capacity Flat top to suit many devices fitting PACKAGE INCLUDES: 1 x 32700 or 32650 3.2 V Rechargeable 6000mAh LifePO4 Battery Cell for EV. Note: Color and Print on the Cells may vary with every lot. We ship it randomly
Out of stockHongli 18650 3.7V 3000mAh Lithium-Ion Rechargeable Cell
[Lithium Battery Cell] HONGLI Lithium-ion 18650 3.7V 3000mAh Battery Cell This Li-Ion 18650 3.7V 3000MAH Battery gives value for your money. It is a single cell, compact, and powerful battery cell with 3000 mAh capacity(Not actual capacity). It is very convenient to install in your project to fulfill a 3.7 Volt requirement with high capacity. The battery terminals can use in any compatible battery adapter/holder or it can be permanently soldered to your application’s power source wires. This is copy cells capacity may be different. Important: Never completely discharge the Li-ion battery ( below 2.5V under load ). Charge fully to 4.2V before first use. Never attach any metal moving part |magnet| to the top-positive or the bottom-negative battery contact. Never use force to install (insert) Li-ion battery. Do not use old and new battery cells together. Use only a high-quality battery charger. Do not expose to heat. Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts). Keep battery that is not in use in the plastic holder (or any insulating [plastic] container). Do not charge a battery over 4.22V (another reason to use a high-quality battery charger). Don’t charge unattended. Do not store your li-ion batteries fully charged (for an extended period of time). Store in cold and dry place at approximately 3.7V (storage charge). After the battery is discharged-don’t leave it discharged=>charge it as soon as possible Features/Specs: Manufacturer: HONGLI SUPPLY SOURCE TECHNOLOGY Battery Type: Lithium-Ion Battery Battery Model: 18650 Battery Voltage: 3.7V Full Charging voltage: 4.20V Battery Capacity: 3000 mAh Rechargeable: Yes PCB Protected Board: No Shape: Cylindrical Battery Dimensions in: mm Dia: 18mm Length: 65mm Weight: 39gm Application: Portable equipment: POS, Portable printer, handset. Medical instrument: B ultrasound, Ecg monitoring instrument Military equipment: IR telescope Consumer electronics:PDA,MID,laptop,emergency light power source power tool e-bicycle Industrial and commercial instrument: light power meter, Gas testing instruments, fusion splicer, flaw detector Electric toy:RC car/ boat/helicopter Package Includes: 1 x HONGLI Lithium-ion 18650 3.7V 3000mAh Battery Cell Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

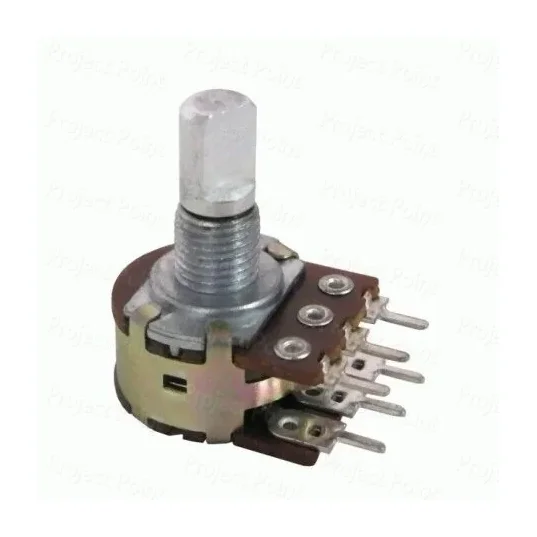

10K Ohm 16mm Linear Taper 6-Pin Dual Gang Rotary Potentiometer
[Potentiometer] 16mm 10KΩ 6-Pin Dual-Gang Rotary Potentiometer The 16mm 10KΩ 6-Pin Rotary Potentiometer is a compact and versatile dual-gang rotary potentiometer designed to control two separate electrical channels simultaneously using a single rotary shaft. With 6 pins in total, each potentiometer section has 3 terminals, making it suitable for stereo audio control, dual-channel signal adjustment, amplifier circuits, tone control, and various DIY electronics applications. By rotating the shaft, the resistance of each potentiometer section can be adjusted smoothly. The dual-gang construction allows both channels to be controlled together, making this potentiometer particularly useful for stereo volume control and other applications requiring synchronized adjustment. ⭐ Key Features 10KΩ resistance value 16mm body diameter 6-pin dual-gang configuration 3 pins per potentiometer section Single rotary shaft controls both gangs Smooth and reliable rotary operation Compact design Suitable for PCB and panel mounting Ideal for stereo and dual-channel applications Suitable for audio and general electronic circuits Compatible with suitable potentiometer knobs 📋 Technical Specifications Product Type: Rotary Potentiometer Resistance Value: 10KΩ Body Diameter: 16mm Configuration: Dual Gang Number of Pins: 6 Pins per Gang: 3 Operation: Single Turn Rotary Shaft Length: 9mm Total Potentiometer Height: 27mm Mounting Type: PCB / Panel Mount Application: Variable Resistance / Voltage Control 🔌 Pin Configuration The potentiometer has 6 pins in total, divided into two independent 3-pin sections: Pins 1, 2 & 3: First potentiometer section Pins 4, 5 & 6: Second potentiometer section Each section consists of two resistive-track terminals and one center wiper terminal. Rotating the shaft moves the wiper and changes the resistance or output voltage. 🔧 Applications Stereo Audio Volume Control Audio Amplifiers Tone Control Circuits Pre-Amplifier Circuits Dual-Channel Signal Adjustment LED Brightness Control Motor Speed Control Power Supply Adjustment 555 Timer Circuits Arduino Projects ESP32 Projects DIY Electronics Projects Audio Equipment Electronic Prototyping 🛠️ How to Use The two outer terminals of each potentiometer section can be connected across the required voltage or signal path, while the center terminal works as the adjustable wiper output. In stereo audio applications, one gang can be used for the left channel and the other gang for the right channel, allowing both channels to be adjusted simultaneously. 📦 Package Includes 1 × 16mm 10KΩ 6-Pin Dual-Gang Rotary Potentiometer ⚠️ Precautions Check the pin configuration before connecting the potentiometer. Do not exceed the electrical limits of the connected circuit. Ensure correct wiring when using both gangs for stereo applications. Use a suitable knob compatible with the shaft. The exact taper and shaft shape may vary depending on the product variant.

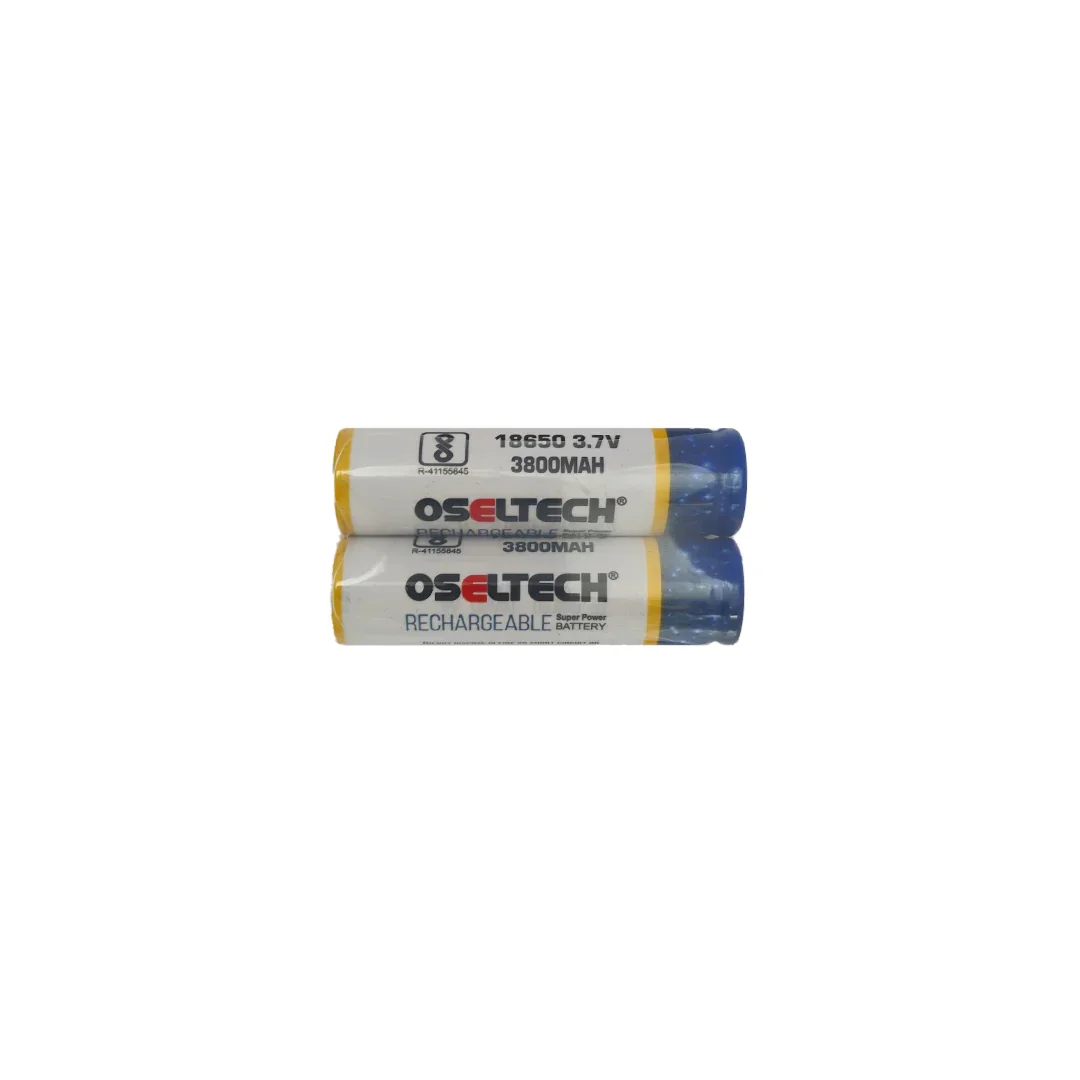

Out of stockOSELTECH 3800 MAH RECHARGEABLE BATTERY ( PACK OF 2 PCS)
[Lithium Battery Cell] 3800 mAh 18650 3.7V Lithium-Ion Battery 18650 Li-ion battery is a lithium-ion rechargeable battery and is used in high drain applications due to its superior capacity and discharge rate. The first 4 digits of 18650 indicate its dimension, i.e. 18mmx65mm, and the last 5th digit indicates its shape, i.e. cylindrical. Li-ion batteries can usually boost a 300-500 charge cycle. Features : High energy density High working voltage for single battery cells. Pollution-free Long cycle life No memory effect Capacity, resistance, Voltage, platform time consistency is good. Good consistency and low self-discharge. Lightweight, small size Shape: Cylindrical Battery Battery Type: Lithium-Ion Battery High performance and capacity Flat top to suit many devices fitting. Weight 85gms Package Includes : 2 x Lithium-Ion 18650 Rechargeable Cell 3.7V 3800mAh
Out of stock74HC595 Serial to Parallel Shifting IC
[Logic Gates IC] DESCRIPTION:- The 74HC595N is a simple 8-bit shift register IC. Simply put, this shift register is a device that allows additional inputs or outputs to be added to a microcontroller by converting data between parallel and serial formats. Your chosen microprocessor is able to communicate with The 74HC595N using serial information then gathers or outputs information in a parallel (multi-pin) format. Essentially it takes 8 bits from the serial input and then outputs them to 8 pins. This small DIP packaged IC contains an 8-bit, serial-in-parallel-out shift register that feeds an 8-bit D-type storage register with parallel 3-state outputs. Pin Configuration:- Pin Number Pin Name Description 1,2,3,4,5,6,7 Output Pins (Q1 to Q7) The 74hc595 has 8 output pins out of which 7 are these pins. They can be controlled serially 8 Ground Connected to the Ground of the circuit 9 (Q7) Serial Output This pin is used to connect more than one 74hc595 as cascading 10 (MR) Master Reset Resets all outputs as low. Must be held high for normal operation 11 (SH_CP) Clock This is the clock pin to which the clock signal has to be provided from MCU/MPU 12 (ST_CP) Latch The Latch pin is used to update the data to the output pins. It is active high 13 (OE) Output Enable The Output Enable is used to turn off the outputs. Must be held low for normal operation 14 (DS) Serial Data This is the pin to which data is sent, based on which the 8 outputs are controlled 15 (Q0) Output The first output pin. 16 Vcc This pin powers the IC, typically +5V is used. Features :- 8-bit, Serial In – Parallel out Shift register Operating Voltage: 2V to 6V Power Consumption: 80uA Output source/sink current: 35mA Output Voltage is equal to Operating voltage Minimum high-level Input Voltage: 3.15V @(Vcc=4.5V) Maximum low-level Input Voltage: 1.35V @(Vcc=4.5V) Can be easily cascaded with more IC to get more outputs Maximum Clock Frequency: 25Mhz @4.5V Available in 16-pin PDIP, GDIP, PDSO packages Where to Use 74HC595 IC:- The 74HC595 is an 8-bit Serial In – Parallel Out Shift Register, i.e. it can receive (input) data serially and control 8 output pins in parallel. This comes in very handy where do not have enough GPIO pins on our MCU/MPU to control the required number of outputs. It is often used in projects where relatively a large number of LED's has to be controlled through the Microcontroller. It can also be used to interface LCD screen since they can acts as the data bit for the LCD displays. It can also be used to control 5V loads like relays through a 3.3V microcontroller since the high-level voltage is only 3.15. So if you are looking for an IC to save on your GPIO pins on the Microcontroller then this IC might be the right choice for you. How to Use a 74HC595 IC:- The 74HC595 shift register is commonly used with microcontrollers or microprocessors to expand the GIPO functionalities. It requires only 3 pins connected to the MCU, which are Clock, Data and Latch. It has a wide operating voltage from 2V to 6V. An application circuit of the IC is shown below: Package Includes:- 1 x 74HC595 IC
Out of stockADXL345 Tripple Axis Accelerometer Board
[Accelerometer and Gyro Sensor] ADXL345 Tripple Axis Accelerometer Board is a small, thin, low-power, 3-axis accelerometer with a high resolution (13-bit) measurement at up to ±16g. Digital output data is format as a 16-bit two’s complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. The ADXL345 Tripple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent-pending 32-level first-in, first-out (FIFO) buffer can be used to store data to minimize host processor intervention. Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. Applications : Pointing devices. Handsets. Medical Instrumentation. Gaming. Industrial instrumentation. Personal navigation devices. Hard disk drive (HDD) protection. Fitness equipment. defense and aerospace. Note: This package does not include the Arduino board, you have to buy it separately. Features : Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command Wide temperature range (−40°C to +85°C). 10,000 g shock survival. Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, the faster load speed of response, very suitable for high-noise power supply environment. User-selectable resolution Fixed 10-bit resolution. Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges). Package Includes : 1 x ADXL345 Tripple Axis Accelerometer Board.

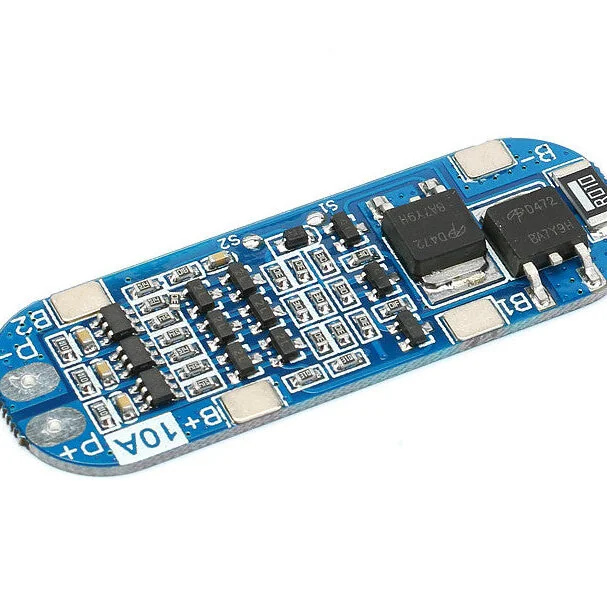

Out of stock3S 10A 12V 18650 Lithium Battery Charger Board Protection Module
[Lithium Battery Protection Board] In 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module, 3S stands for 3 18650 batteries or polymer lithium battery series combination. With 10.8V rated voltage for polymer battery, 11.1V 18650 or 3.7V lithium battery rated voltage and 12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also Comes with over-charge, over-discharge, over-current, short circuit protection. Formula Expansion : 1C battery expansion, 2000 capacity is equal to 2AH * 1 = 2A upper limit of current. 3C battery expansion, 2000 capacity equal to 2AH * 3 = 6A upper operating current. If the battery gets heat, does not apply that battery, such a situation cannot be long-term use, the battery will soon be damaged. Notes : 1: strictly according to the drawing wiring 0 V (B), 3.7 V (B1), 7.4 V (B2), 11.1 V (B +), not intentionally short circuit! 2: Once you have charged the first line, it will have output. 3: When connecting three battery groups, please make sure that the voltage of each battery group, if not the same, fill each battery separately and then use it in series. discharge test, the fastest battery voltage drop, which group is low battery. (2 good battery + a use effect = 3 low battery low battery use effect). Warning : The protection board can not be used for lithium iron phosphate batteries, lamp hernia, hand drill battery, electric battery fish, electric bicycle battery, car battery for children, 775 (4A) motor, 1 W fish eye LED light, please pay attention customer purchase connection! Described in terms of power for the following products: Massager rechargeable battery, LED ready light power supply, 12 V electronic products, solar street lamp battery, power backup monitor, and other products. Connection Diagram: Package Includes : 1 x 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module.

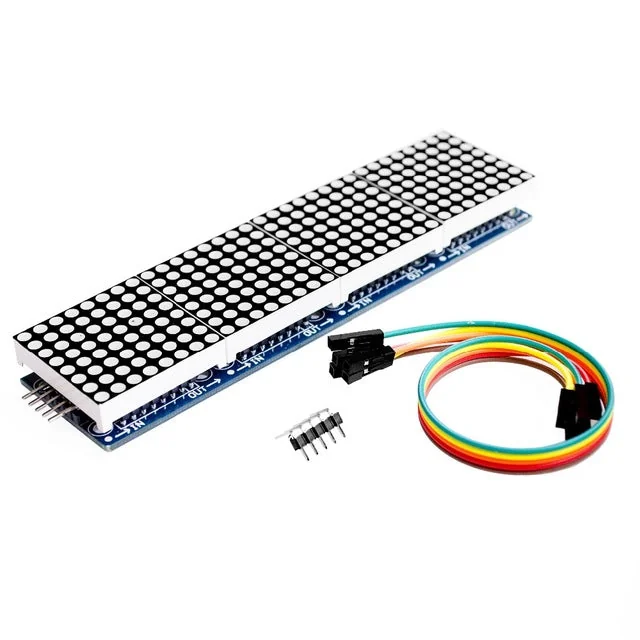

Out of stockMAX7219 Dot Matrix 4 in 1 Display Module
[LED/LCD Display Module] Features – Driver Chip: MAX7219 Input Voltage: 3.7 to 5.3 V Input Current: 320 mA Display Dimensions: 32x32x6 (LxWxH) mm PCD Dimensions: 128×32 (LxW) mm — MAX7219 4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED. Thereon including a B-type BCD encoder chip, multi-channel scanning loop segment word driver, but also a static RAM 8 x 8 for storing each data. Only one external register is used to set the segment current of each LED. Specifications :- Dimensions: 128 x 32 x 1.5cm(LxWxH)(All 4 in 1) Dimension 32 x 32 x 1.5 cm (LxWxH) (Single Module) A single module can drive an 8×8 dot matrix common cathode Operating voltage: 5V Weight: 55 gm Fixing screws with 64 holes with a diameter 3mm Module with input and output interfaces Support for cascading multiple modules Wiring Instructions:- The left side of the module to the input port, the right to an output port. When the control of a single module, simply input port connected to CPU When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on.. Pin Description:- VCC 5V GND GND DIN P2.2 CS P2.1 CLK P2.0

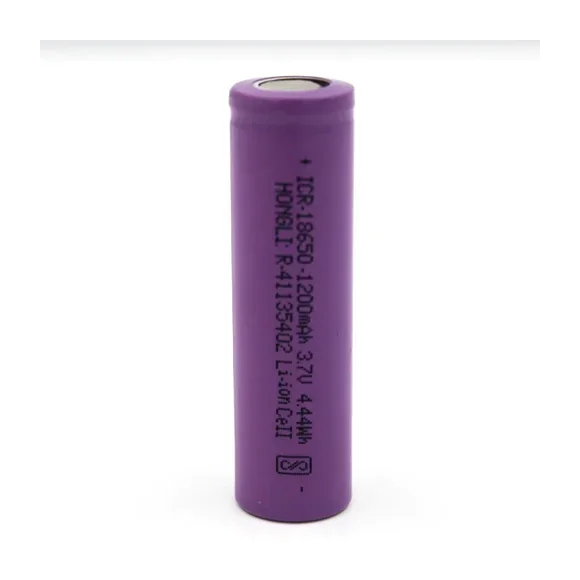

18650 3.7V 1200mAh Lithium-Ion Rechargeable Cell
[Lithium Battery Cell] Good Quality 1200 mAh ICR18650 3.7V Lithium-Ion Battery 18650 Li-ion battery is a lithium-ion rechargeable battery and is used in high drain applications due to its superior capacity and discharge rate. The first 4 digits of 18650 indicate its dimension, i.e. 18mmx65mm, and the last 5th digit indicates its shape, i.e. cylindrical. Li-ion batteries can usually boost a 300-500 charge cycle. You can check our others lithium cells click here. Features : High energy density High working voltage for single battery cells. Pollution-free Long cycle life No memory effect Capacity, resistance, Voltage, platform time consistency is good. Good consistency and low self-discharge. Lightweight, small size Shape: Cylindrical Battery Battery Type: Lithium-Ion Battery High performance and capacity Flat top to suit many devices fitting. Weight 60gms. Applications: Electric Scooter Electric Bicycle E-Skate Board Electric Motorcycle E-Wheel Chair Electric Tool Drone Electric Vehicle Etc. Power Bank Package Includes : 1 x Lithium-Ion 18650 Rechargeable Cell 3.7V 1200mAh Note: Images shown are for illustrative purposes only. Actual Product may vary.

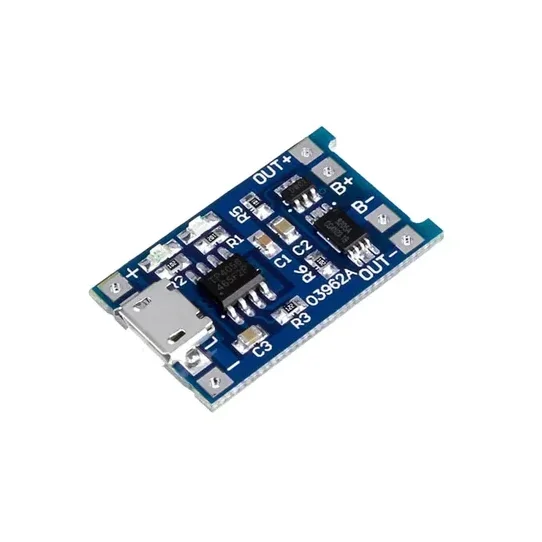

TP4056 (Micro USB with Current Protection) 1A Li-ion Battery Charging Module
TP4056 1A Li-Ion Lithium Battery charging Module with Current Protection – Micro USB This TP6405 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don't have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished. Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. USING THE MODULE: Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module Connect cell to charge to B+/B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, green LED indicates charging has finished. Never charge your battery at a rate greater than 1C. NOTE: 1. Ampere meter can only be connected to a 5v input end of the module. 2. It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough. 3. The connection wire should not be too thick. 4. Make sure the connect point is good. 5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip. 6. NO Reverse polarity. You can check our others BMS. Click here Features: Led indicator: red is charging Green is fully charged. Current Protection: Yes Inversed polarity: NO. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy. Fully machinery automated processing, all patch parts manufacturing.

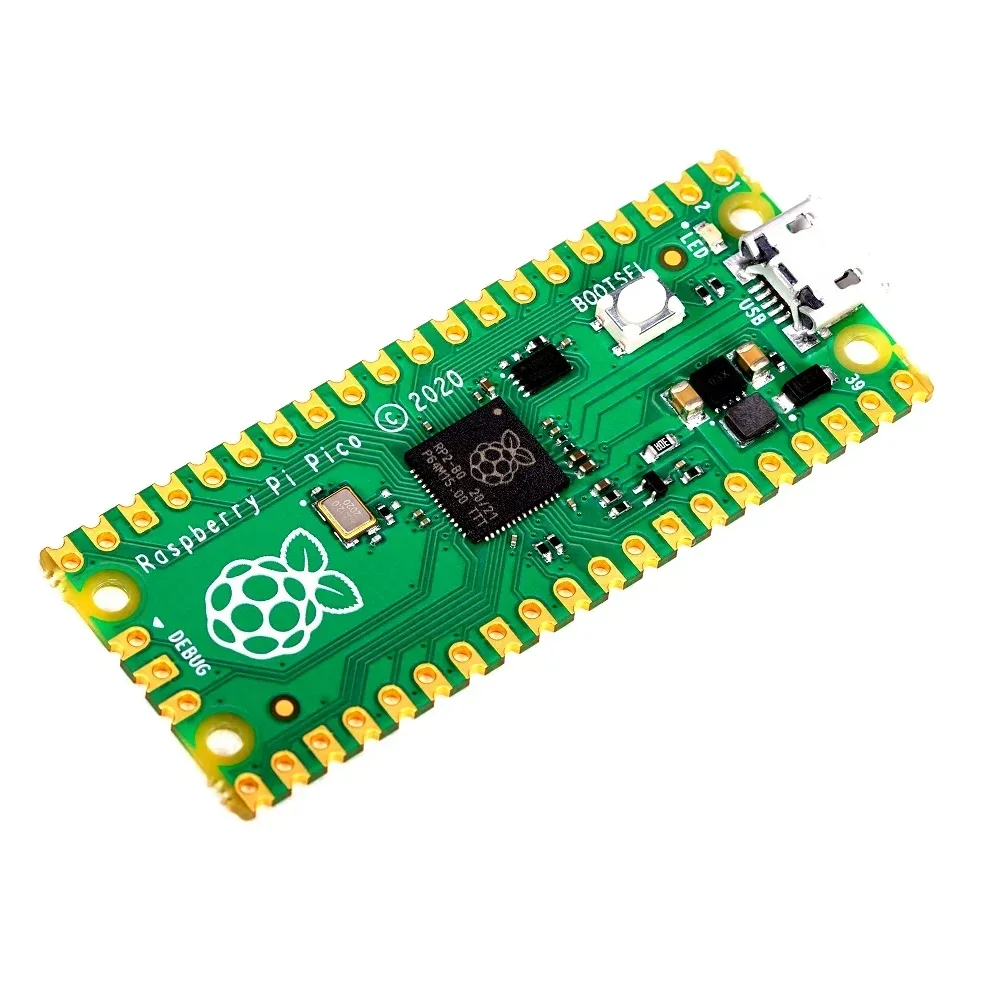

Out of stockRaspberry Pi Pico Original Version Dual-core Arm Cortex
[Raspberry Pi] Raspberry Pi Pico Original Version Dual-core Arm Cortex Description: Almost one and half-year before Raspberry had launched a revolutionary update on their Single Board Computer (SBC) Pi 3 and become the most popular Microcontroller board in the community which is known as a Raspberry pi 4. On the same timeline, the Raspberry pi foundation came with a new astonishing SBC named a Raspberry Pi PICO. The main highlighted thing about RPI PICO it is the Lowest cost and Smallest size development board from Raspberry pi Foundation. On the technical side, it is equipped with an RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP400 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller. The RP2040 is supported with both c / c ++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to start with. Key Features 21 mm x 51 mm form factor RP2040 microcontroller chip designed by Raspberry Pi in the UK Dual-core Arm Cortex-M0+ processor, the flexible clock running up to 133 MHz 264KB on-chip SRAM 2MB onboard QSPI Flash 26 multifunction GPIO pins, including 3 analog inputs 2 x UART, 2 x SPI controllers, 2 x I2C controllers, 16 x PWM channels 1 x USB 1.1 controller and PHY, with host and device support 8 x Programmable I/O (PIO) state machines for custom peripheral support Supported input power 1.8-5.5V DC Operating temperature -20C to +85C The castellated module allows soldering directly to carrier boards Drag-and-drop programming using mass storage over USB Low-power sleep and dormant modes Accurate on-chip clock Temperature sensor Accelerated integer and floating-point libraries on-chip Package Content 1 X Raspberry Pi Pico

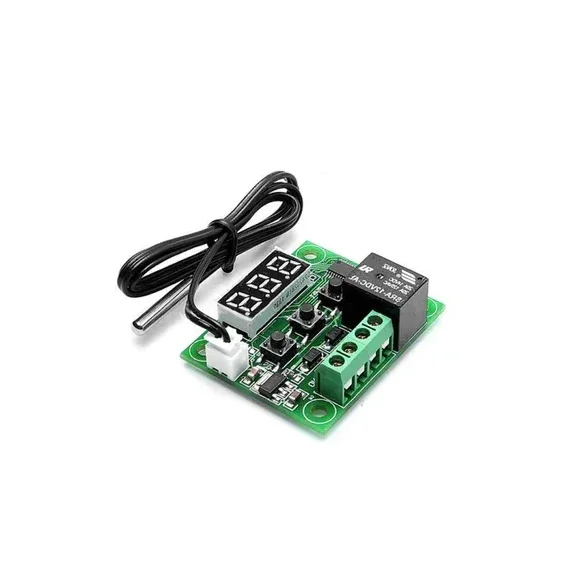

W1209 Digital Temperature Controller Thermostat Module with Display and Waterproof Temperature Sensor
[Temperature Sensor] XH W1209 12V Digital Temperature Control Module + Display and NTC Temp Sensor This is XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor. W1209 Mini thermostat Temperature controller is low-cost 12V Temperature controller with 7-segment display and 3 switch keypad for setting temperature and other parameters. The module features an NTC thermistor temperature sensing and has an accuracy of 0.1 C. The XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The onboard relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. We can display current temperature in degrees Centigrade via its 3 digit seven segment display and the current relay state by an onboard LED. DISPLAYING THE CURRENT TEMPERATURE The thermostat will display the current temperature in °C by default. When in any other mode making no input for approximately 5 seconds will cause the thermostat to return to this default display. SETTING THE TRIGGER TEMPERATURE To set the trigger temperature press the button marked ‘SET’. The seven-segment display will flash. You can now set a trigger temperature (in °C) using the ‘+’ and ‘-‘ buttons in 0.1° increments. If we didn’t press any buttons for approximately 2 seconds the trigger temperature will be store and the display will return back to the current temperature. SETTING THE PARAMETERS To set any parameter first long press the ‘SET’ button for at least 5 seconds. The seven-segment display should now display ‘P0’. This represents parameter P0. Pressing the ‘+’ or ‘-‘ buttons will cycle through the various parameters (P0 to P6). Pressing the ‘SET’ button whilst any of these parameters are displayed will allow you to change the value for that parameter using the ‘+’ and ‘-‘ buttons. When finished setting a parameter press the set button to exit that option. If no buttons are pressed for approximately 5 seconds the thermostat will exit the parameter options and will return back to the default temperature display. SETTING THE COOLING OR HEATING PARAMETER P0 The parameter P0 has two settings, C and H. When setting to C (default) the relay will energize when the temperature is reached. Use this setting if connecting to an air-conditioning system. When set to H the relay will de-energize when the temperature is reached. Use this setting if controlling a heating device. SETTING THE HYSTERESIS PARAMETER P1 This sets how much change in temperature must occur before the relay will change state. For example, if set to the default 2oC and the trigger temperature has been set to 25oC, it will not de-energize until the temperature falls back below 23oC. Setting this hysteresis helps stop the thermostat from continually triggering when the temperature drifts around the trip temperature. SETTING THE UPPER LIMIT OF THE THERMOSTAT PARAMETER P2 This parameter limits the maximum trigger temperature that can be set. It is useful as a safety to stop an excessively high trigger temperature from accidentally being set by the user. SETTING THE LOWER LIMIT OF THE THERMOSTAT PARAMETER P3 This parameter limits the minimum trigger temperature that can be set. It is useful as a safety to stop an excessively low trigger temperature from accidentally being set by the user. SETTING TEMPERATURE OFFSET CORRECTION PARAMETER P4 Should you find there is a difference between the displayed temperature and the actual temperature; (for instance, if the temperature probe is on a long run of cable) you can make minor corrections to the temperature reading with this parameter. SETTING THE TRIGGER DELAY PARAMETER P5 To reach trigger temperature this parameter allows for delaying switching of the relay. The parameter can be set in one-minute increments up to a maximum of 10 minutes. SETTING THE HIGH-TEMPERATURE ALARM PARAMETER P6 Setting a value for this parameter will cause the relay to switch off when the temperature reaches this setting. The seven-segment display will also show ‘—‘ to indicate an alarm condition. The relay will not re-energize until the temperature falls below this value. The default setting is OFF.

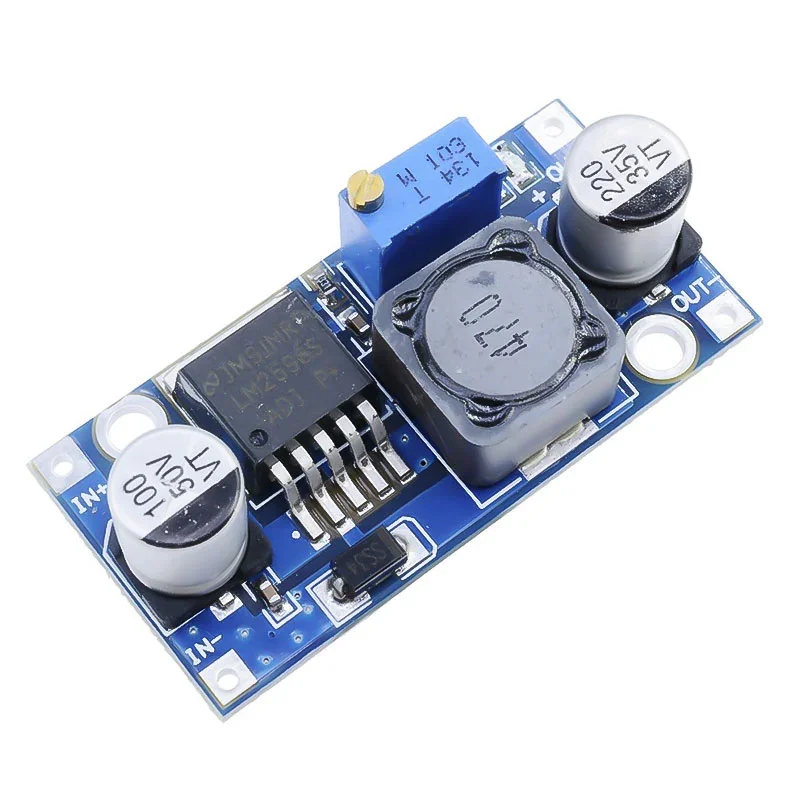

LM2596 DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module
[Step Down Buck Converter] Introducing a high-performance DC to DC Step Down Adjustable Power Supply Module, built upon the newly developed LM2596S Wide Range Switching Regulator. With dimensions approximately 43 x 20 x 14 mm and a color as shown in the picture, this module offers reliable and efficient power regulation. Key Specifications: – Full Load Temperature Rise: 40°C – Load Regulation: ± 0.5% – Voltage Regulation: ± 0.5% – Dynamic Response Speed: 5% in 200uS – Input Voltage: 4.50-40V – Output Voltage: Adjustable in the range of 1.50-35V – Output Current: Rated at 2A, with a maximum of 3A (Additional heat sink required for maximum output) – Conversion Efficiency: Up to 92% (Efficiency increases with higher output voltage) – Switching Frequency: 150KHz – Rectifier: Non-Synchronous Rectification – Module Properties: Non-isolated step-down module (buck) – Short Circuit Protection: Current limiting, with automatic recovery – Operating Temperature: Industrial grade (-40 to +85°C) for output power of 10W or less Features: Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise), Input: IN+ input positive IN- input negative Output: OUT+ output positive OUT- output negative Static power consumption is only about 6mA. Connection: Welding, plus pin can be directly soldered after the PCB. Short circuit protection: current limiting, thermal protection, self-recovery. Non-isolated step-down (BUCK) switching regulator. Short circuit protection: Current limiting, self-recovery Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease) Non-synchronous rectification Package Includes : 1 x LM2596 DC-DC Buck Converter 4.5-40V to 3-35V

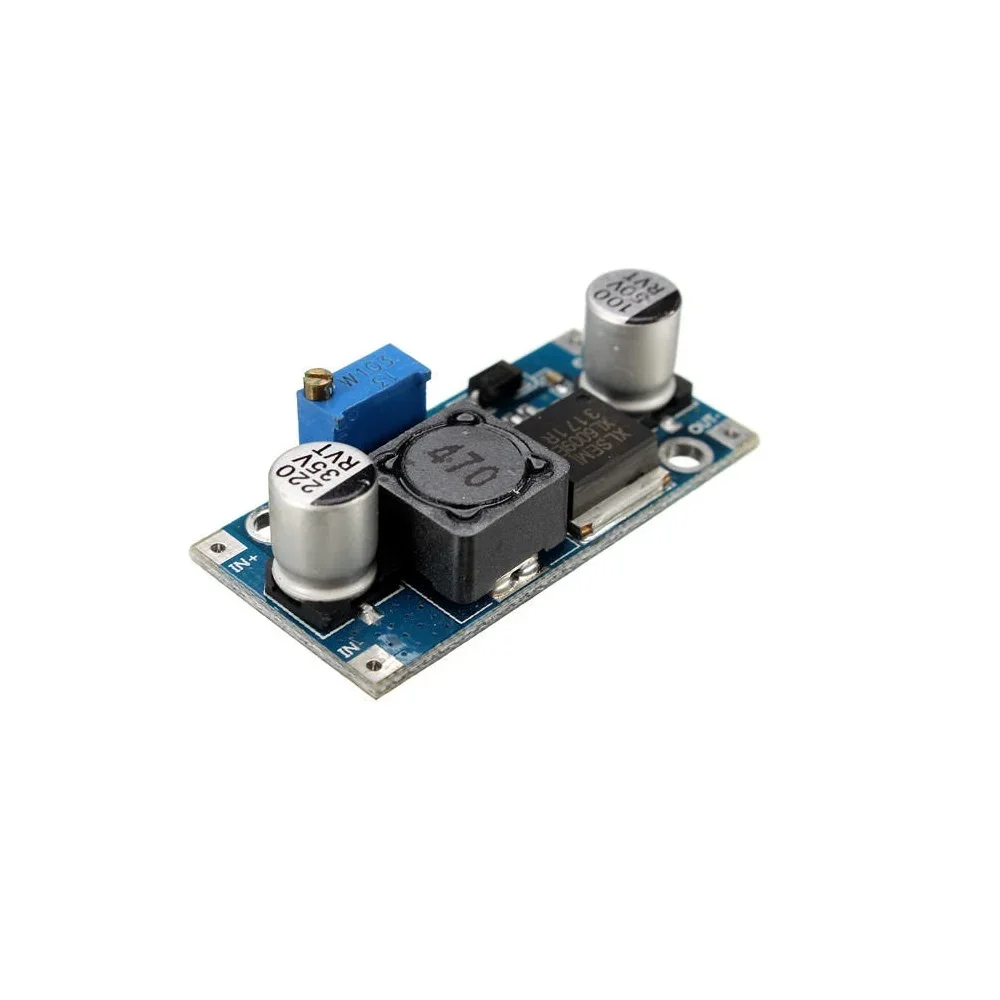

Out of stockXL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board
[Step UP Buck Converter] This CN6009 XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller Pins IN+ input positive IN- input negative! OUT+ output positive OUT- output negative Features : The performance is much higher than LM2577. Non-isolated Boost converter. It has a non-synchronous rectifier. Small and Handy voltage regulator module. Package Includes : 1 x CN6009 XL6009 DC-DC Step-up converter module.

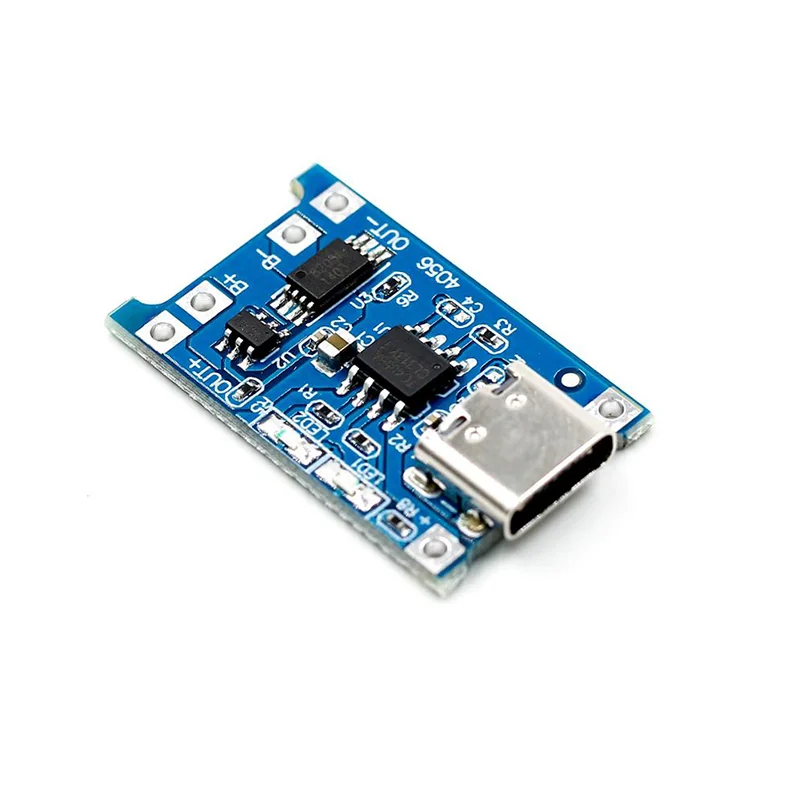

TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C
[Lithium Battery Protection Board] This TP4056 1A Li-Ion Battery Charging Board Type C with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished. Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. Manufactured under fully machinery processing. Each module is tested OK before shipment from roboma.in so it has high reliability for the best performance. In conclusion, it is a special design for a single lithium battery charging. TP4056 Other features include the current monitor, under-voltage lockout, automatic recharge, and two status pin to indicate charge termination and the presence of an input voltage. Using the module: Connect Type C cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module Connect cell to charge to B+/B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, the green LED indicates charging has finished. Never charge your battery at a rate greater than 1C. NOTE: 1. Ampere meter can only be connected to a 5v input end of the module. 2. It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough. 3. The connection wire should not be too thick. 4. Make sure the connect point is good. 5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip. 6. NO Reverse polarity. You can check our others BMS. Click here Features : Led indicator: Red is charging Green is fully charged. Current Protection: Yes Inversed polarity: NO. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy. Fully machinery automated processing, all patch parts manufacturing. Package Includes : 1 x TP4056 1A Li-ion Lithium Battery Charging Module With Current Protection – Type C
