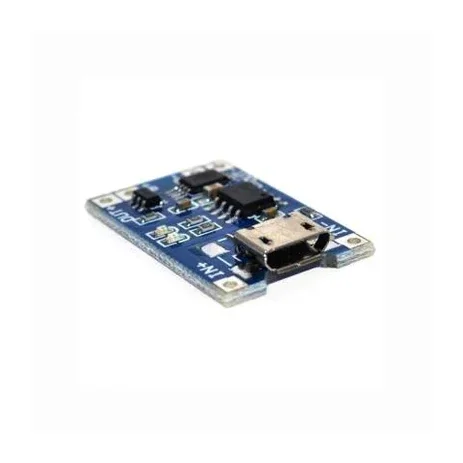

TP4056 (Micro USB with Current Protection) 1A Li-ion Battery Charging Module

Description

The TP4056 (Micro USB with Current Protection) 1A Li-ion Battery Charging Module is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

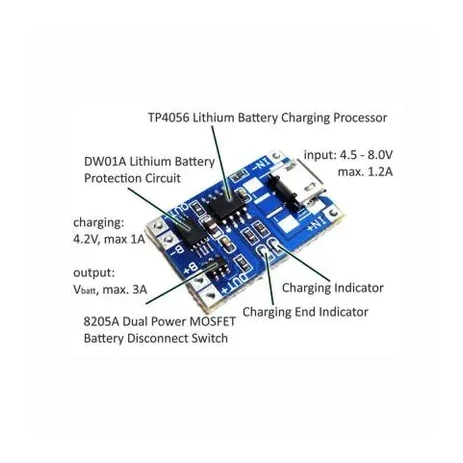

• •Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished
• •Never charge your battery at a rate greater than 1C
• •Ampere meter can only be connected to a 5v input end of the module
• •It is better than the charging current is 37% of the battery capacity
• •If you charge the battery of 1000mAh, a current of 400mAh is enough
• •The connection wire should not be too thick

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × TP4056 (Micro USB with Current Protection) 1A Li-ion Battery Charging Module
