All products · 38 of 1440
Electronics, sensors, robotics kits, PC components, peripherals — everything Unik Systems carries, in one place.
Out of stockXL4015 5A Buck Converter Module
DC-DC step-down 4-38V to 1.25-36V, 5A, heatsink-mounted.
2S 4A Type-C Lithium Battery Charging Module – 8.4V Step-Up Boost Charger for 18650 Lipo
[Step UP Buck Converter] 2S 4A Type-C Lithium Battery Charging Module – 8.4V Step-Up Boost Charger for 18650 The 2S 4A Type-C Lithium Battery Charging Module is a compact step-up charging board designed for charging 2-cell series (2S) 18650 Li-ion/Li-Po battery packs. It accepts a 3–6V DC input through USB Type-C and boosts the voltage to 8.4V, the required full-charge voltage for a 2S lithium battery pack. The 4A specification refers to the maximum input current version. According to available product specifications, the corresponding charging current is approximately 2.2A, rather than 4A. ⭐ Key Features Designed for 2S lithium-ion/Li-Po battery packs Suitable for 2 × 18650 cells connected in series USB Type-C input 3–6V DC input Recommended input: 3.7V / 5V Step-up/boost charging circuit 8.4V charging voltage 4A maximum input-current version Approximately 2.2A charging current Automatic recharge function Battery charging protection features Compact PCB design LED charging/status indication Suitable for DIY battery and portable-power projects 📋 Technical Specifications Product Type: 2S Lithium Battery Step-Up Charging Module Battery Configuration: 2S – 2 cells in series Compatible Battery: 3.6V/3.7V Li-ion / Li-Po Nominal Battery Pack Voltage: 7.4V Full-Charge Voltage: 8.4V Input Voltage: DC 3–6V Recommended Input: DC 3.7V / 5V Maximum Input Current: 4A Charging Current: Approximately 2.2A Charging Interface: USB Type-C Charging Mode: Constant-current / constant-voltage Board Size: Approximately 39 × 18 × 6.3mm Operating Temperature: -40°C to +85°C LED Indicators: Charging / fully charged or constant-voltage status 🔋 Charging Performance For the 2S 4A version: USB Type-C 5V → Boost Charging Module → 8.4V → 2S Battery Pack The module draws up to approximately 4A from the input, while the specified charging current is approximately 2.2A. This distinction is important when selecting the USB power adapter. 🔧 Applications 2S 18650 battery packs 7.4V Li-ion battery packs 2S Li-Po battery packs DIY power banks Portable electronics Bluetooth speaker battery systems Robotics projects Solar charging applications Electronic prototyping Portable audio equipment Electric fan projects Type-C rechargeable equipment Custom battery charging systems 🛠️ How It Works The module uses a boost/step-up charging circuit to convert the lower USB Type-C input voltage into the 8.4V charging voltage required for a 2S lithium battery pack. Example: 5V Type-C Input → Step-Up Circuit → 8.4V Charging Output → 2S 18650 Battery A 2S battery pack consists of two lithium cells connected in series: 3.7V + 3.7V = 7.4V nominal4.2V + 4.2V = 8.4V fully charged 💡 LED Indicators The module uses status indicators to show the charging condition: CR: Charging OK: Fully charged / constant-voltage stage ⚠️ Important Notes This module is intended for 2S battery packs only. Do not connect a single 18650 cell directly to the 8.4V charging output. The two cells should be properly matched and in good condition. Do not exceed the 6V maximum input voltage. A suitable Type-C power source is required to supply the necessary input current. The 4A rating is the input-current rating, not the battery charging current. The specified charging current for this 2S 4A version is approximately 2.2A. This charging module should not automatically be considered a replacement for a dedicated 2S BMS/protection board. Use appropriate battery protection where required. Check the PCB polarity and connection markings before connecting the battery. Do not short-circuit the input or output. Use properly matched lithium cells for safe and reliable charging. Keep the module adequately ventilated during higher-current operation. 📦 Package Includes 1 × 2S 4A Type-C Step-Up Boost Lithium Battery Charging Module – 8.4V
Type-C PD/QC/AFC Fast Charge Decoy Trigger Module – 5V/9V/12V/15V/20V Fixed Output
[Step UP Buck Converter] Type-C PD/QC/AFC Fast Charge Decoy Trigger Module – 5V/9V/12V/15V/20V Fixed Output The Type-C PD/QC/AFC Fast Charge Decoy Trigger Module is a compact USB Type-C power negotiation module designed to request a selected voltage from compatible USB Type-C fast chargers and power banks. It supports QC 2.0/3.0, AFC, PD 2.0 and PD 3.0 protocols, allowing compatible USB-C power sources to provide higher voltage outputs such as 5V, 9V, 12V, 15V or 20V. This module is useful for DIY electronics projects where a USB Type-C PD/QC charger needs to be used as a DC power source for equipment that does not have native USB-C fast-charging support. ⭐ Key Features USB Type-C fast-charge decoy/trigger module Supports PD 2.0 / PD 3.0 Supports QC 2.0 / QC 3.0 Supports Samsung AFC Fixed selectable voltage output Supports 5V / 9V / 12V / 15V / 20V output options Negotiates the required voltage from a compatible charger Suitable for USB-C power banks and PD adapters LED indicators for operating/status indication Compact and lightweight PCB design Useful for DIY power supply and electronics projects Plug-and-play operation with compatible USB-C power sources 📋 Technical Specifications Product Type: USB Type-C Fast Charge Trigger / Decoy Module Input Connector: USB Type-C Input Source: USB-C PD/QC/AFC compatible charger or power bank Supported Protocols: PD2.0, PD3.0, QC2.0, QC3.0, AFC Output Voltage: 5V / 9V / 12V / 15V / 20V Output Type: DC Voltage Selection: Fixed/selectable depending on module version Indicator: LED status indicators Application: DC power conversion and fast-charge voltage triggering 🔧 Applications Converting USB-C PD chargers into DC power supplies Powering DIY electronics projects Arduino and microcontroller projects LED applications Portable electronic equipment DIY laboratory power supplies DC motors and other suitable loads Router/modem power applications where the required voltage matches Powering electronics from USB-C PD power banks Replacing conventional DC adapters with USB-C PD sources 🛠️ How It Works The module does not boost the USB voltage itself. Instead, it communicates with a compatible USB-C power source and sends the required PD/QC/AFC negotiation request. For example, when connected to a compatible PD charger, the module can request: 5V → 9V → 12V → 15V → 20V The charger then provides the negotiated voltage at the module's DC output. ⚠️ Important Notes The connected USB-C charger or power bank must support the required fast-charging protocol and voltage. A standard 5V-only USB charger cannot normally provide 9V/12V/15V/20V through this module. Always verify the selected output voltage with a multimeter before connecting your device. Do not connect a device that requires a lower voltage than the selected output. The module is a trigger/decoy board, not a standalone DC-DC boost converter. Maximum available output power/current depends on the connected USB-C charger/power bank and the module's specifications. Do not short the output terminals. 20V output can damage 5V/9V/12V-only electronics if the wrong voltage is selected. Exact selectable voltages and current capability can vary between board versions. 📦 Package Includes 1 × Type-C PD/QC/AFC Fast Charge Decoy Trigger Module
XH-M401 DC-DC Step Down Buck Converter Power Supply Module XL4016E1
[Step Down Buck Converter] ⚡ XL4016 12A DC-DC Step-Down Buck Converter Module Adjustable Power Supply 12A High Current • Adjustable Output • Up to 96% Efficiency • Ideal for Battery Charging & Power Supply Applications The XL4016 DC-DC Step-Down Buck Converter Module is a high-performance switching voltage regulator designed to efficiently convert higher DC input voltages into a stable, adjustable lower output voltage. Based on the XL4016 PWM Buck Converter IC, this module supports input voltages from 8V to 36V DC and provides an adjustable output voltage from 1.25V to 32V, making it suitable for a wide range of power supply applications. Capable of delivering up to 12A output current with conversion efficiencies of up to 96%, the module features built-in thermal shutdown, current limiting, and short-circuit protection for safe and reliable operation. Its compact design and excellent voltage regulation make it ideal for powering electronic projects, battery charging systems, LED lighting, industrial equipment, communication devices, and laboratory power supplies. ⭐ Features Based on the XL4016 high-performance buck converter IC Wide input voltage range of 8V–36V DC Adjustable output voltage from 1.25V–32V DC Supports output current up to 12A High conversion efficiency up to 96% Built-in thermal shutdown protection Built-in over-current protection Built-in output short-circuit protection Excellent line and load regulation Compact PCB design Suitable for battery charging and DC power applications 📋 Technical Specifications Product Type: DC-DC Buck Converter Module Model: XL4016 (XH-M401 / HW-439 / HW-674) Converter Type: Step-Down (Buck) Input Voltage: 8V–36V DC Output Voltage: 1.25V–32V DC (Adjustable) Maximum Output Current: 12A Maximum Conversion Efficiency: Up to 96% Load Regulation: ±0.5% Voltage Regulation: ±0.5% Switching Frequency: 180kHz Protection Features: Over-Current Protection Thermal Shutdown Protection Output Short-Circuit Protection PCB Size: 60 × 40 mm Operating Principle: PWM Step-Down Regulation 🔧 Applications Suitable for: Adjustable DC Power Supplies Lithium Battery Charging Lead Acid Battery Charging Solar Power Systems LED Drivers LCD Monitors LCD Televisions Portable Instruments Telecommunication Equipment Networking Equipment Robotics Projects Arduino Projects ESP32 Projects Industrial Automation DIY Electronics 📦 Package Includes 1 × XL4016 12A DC-DC Step-Down Buck Converter Module ⚠️ Note This is a step-down (buck) converter; the input voltage must always be higher than the required output voltage. Adjust the output voltage before connecting sensitive electronic devices. Product may be supplied as XH-M401, HW-439, or HW-674, depending on stock availability. All variants offer equivalent functionality.
Type-C USB 5V 2A Step-Up Boost Converter with USB Charger
[Li-ion Rechargeable Battery Charger, Step UP Buck Converter] Build your own portable power solutions with the Type-C USB 5V 2A Step-Up Boost Converter Power Bank Module — a compact and efficient charging solution designed for DIY power banks and USB-powered devices. This versatile module supports battery charging and 5V boost output, allowing you to convert battery voltage into a stable 5V USB output for powering smartphones, microcontrollers, and other USB devices. Equipped with a Type-C input, high-efficiency boost circuit, and intelligent power management, this module ensures reliable performance, fast charging, and safe operation. It also supports simultaneous charging and discharging, making it perfect for uninterrupted power supply applications. Key Features 🔋 2-in-1 Charging + Boost ModuleCharge your lithium battery while simultaneously providing a stable 5V output. ⚡ Stable 5V 2A OutputDelivers consistent power for USB devices like smartphones, Arduino, ESP32, and more. 🔌 Type-C USB InputModern and widely compatible input for easy charging (5V–5.5V). 🔄 High Efficiency Boost Conversion (Up to 92.5%)Minimizes power loss and improves battery life. 🧠 Smart Power ManagementAutomatically controls charging cycles, output switching, and battery protection. 🔘 External Button Control Support Short press: Turn ON output & display Double press: Turn OFF output 🔧 DIY Friendly DesignIncludes USB-A solder pads for custom builds and integrations. Working Functions 🔹 Auto shutdown when load current < 50mA🔹 Auto stop charging when current drops to 100mA🔹 Auto recharge when battery voltage < 4.1V🔹 Pre-charge mode below 2.8V (180mA safe charging)🔹 Supports charging while discharging Specifications Specification Description Input Voltage 5V – 5.5V (Type-C USB) Charging Cut-off Voltage 4.2V / 4.35V ±0.5% Charging Current 2.4A ±5% Boost Output Voltage 5V – 5.15V Output Current Up to 2A Efficiency Up to 92.5% Output Ripple 100mV Quiescent Current 30µA Material Metal + Plastic Applications 🔋 DIY Power Banks📱 Mobile Charging Projects🔧 Arduino / ESP32 Power Supply🔌 USB Device Power Modules🚗 Portable Electronics🧪 Embedded Systems & Prototyping Package Includes 1 × Type-C USB 5V 2A Step-Up Boost Converter Power Bank Module
Type-C 3S 4A 18650 Lithium Battery Charger Module | USB-C Step-Up Boost Charging Board for Li-ion
[Li-ion Rechargeable Battery Charger, Step UP Buck Converter] The 3S Type-C Charging Module Battery Charger Board is a compact and highly efficient solution for charging 18650 lithium-ion and Li-Po polymer battery packs. Designed specifically for 3S battery configurations (12.6V charging voltage), this module integrates a USB Type-C input and a high-frequency step-up (boost) circuit, making it ideal for modern portable power applications. With multiple current variants available (1A / 2A / 4A), the module offers flexibility for different power requirements. Its high switching frequency up to 1MHz ensures fast response, stable performance, and compact PCB size. The intelligent quasi-CV (constant voltage) mode compensates for voltage loss caused by internal battery resistance and PCB trace resistance, ensuring accurate and efficient charging. This charging board also features automatic recharge capability, restarting charging when battery voltage drops, and excellent adaptability to power sources with limited driving capability. Built-in protection functions safeguard the battery and connected devices from over-voltage, under-voltage, and short-circuit conditions, enhancing safety and battery lifespan. Thanks to its wide compatibility and reliable performance, this module is suitable for a broad range of applications including DIY power banks, portable electronics, solar charging systems, audio equipment, POS machines, electric fans, Bluetooth devices, and other Type-C powered equipment. ⭐ Key Features ✔ USB Type-C Input for convenient and modern charging ✔ Supports 3S Lithium Battery Packs (12.6V charging voltage) ✔ Multiple Charging Current Options: 0.37A (1A version) 0.74A (2A version) 1.48A (4A version) ✔ High Switching Frequency up to 1MHz for stable and efficient operation ✔ Quasi-CV Charging Mode compensates voltage loss ✔ Automatic Recharge Function ✔ Built-in Protection: Over-voltage, low-voltage, short-circuit ✔ Compact design, easy integration into DIY projects 🔧 Technical Specifications Battery Configuration: 3S lithium battery Supported Batteries: 18650 Li-ion / Li-Po polymer Input Voltage: DC 3–6V (Recommended: 3.7V / 5V) Input Current: Up to 4A (4A version) Charging Voltage: 12.6V Charging Current: 0.37A (1A version) 0.74A (2A version) 1.48A (4A version) Switching Frequency: Up to 1MHz Protection Functions: Over-voltage, under-voltage, short-circuit 🎯 Applications DIY power banks 18650 lithium battery packs Mobile phones & portable devices Bluetooth speakers & audio equipment Solar charging systems POS machines Cameras, MP3/MP4 players Game consoles & notebooks Type-C powered electronics 📦 Package Includes 1 × 3S Type-C Charging Module Battery Charging Board 4A Version Please note: Image Only for representation purposes. Actual products may vary as per available stock.
PD65W Fast Charging Adapter Power Banks Module USB-C PD 65W
[Li-ion Rechargeable Battery Charger, Step UP Buck Converter] 📝 Description Upgrade your power projects with this PD65W Fast Charging Adapter Module, engineered to deliver USB-C Power Delivery up to 65W.This module provides stable, intelligent, and ultra-fast charging for smartphones, laptops, tablets, and Type-C gadgets. Featuring a PD standard protocol board, it supports multiple voltage profiles such as 5V, 9V, 12V, 15V, and 20V, making it ideal for DIY fast chargers, custom power banks, repair work, or integrating PD into your electronic builds. Built with premium components, over-voltage, over-current, temperature protection, and high-efficiency power conversion, this module delivers reliable, safe performance for all your USB-C PD applications. Perfect for makers, technicians, hobbyists, and product developers. ⭐ Key Features ✔ 65W USB-C Power Delivery — Supports ultra-fast charging for smartphones, tablets, laptops, and Type-C devices ✔ Multi-Voltage PD Profiles — Automatically negotiates 5V / 9V / 12V / 15V / 20V depending on connected device ✔ High-Efficiency Power Conversion — Stable output with low heat generation and fast response ✔ Built-In Safety Protections — Over-voltage, over-current, short-circuit and thermal protection ensure reliable operation ✔ Compact Size for Easy Integration — Fits perfectly in DIY chargers, power banks, docking stations, and custom electronics ✔ Plug-and-Play Operation — Simple wiring and automatic PD negotiation ✔ Ideal for Makers & Technicians — Great for DIY projects, repairs, and upgrading existing charging systems 🔧 Technical Specifications Input Voltage: Operates from 8V to 32V, compatible with various power sources. Output Power: Up to 65W (via USB-C) Supported PD Voltages: 5V/9V/12V/15V/20V Protocol: USB Power Delivery (PD) Efficiency: High (depends on input/output profile) Protection Features: Over-voltage protection/Over-current protection/Short-circuit protection/Thermal protection Application: DIY chargers, fast-charging adapters, power banks, docking stations, electronics projects 📦 Package Includes 1 × PD65W Fast Charging Adapter Module Standard Board
Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A
[Step UP Buck Converter] DC-DC Adjustable Boost Power Supply Module 2V–24V to 5V/9V/12V/28V 2A Type-C The DC-DC Adjustable Boost Power Supply Module is a compact step-up power conversion module designed to increase a lower DC input voltage to a higher adjustable output voltage. It supports a wide 2V–24V input range and provides an adjustable output from approximately 5V to 28V, making it suitable for battery-powered devices, microcontrollers, sensors, portable electronics and DIY power projects. With a compact 30 × 17 × 8mm design and Type-C connector, this module is convenient for projects where space and flexible power input are important. ⭐ Key Features DC-DC boost/step-up converter Wide 2V–24V input voltage range Adjustable output voltage Output options include approximately 5V, 9V, 12V and 28V Maximum output current: 2A Conversion efficiency: >93% Compact and lightweight design Type-C input connector Suitable for battery-powered applications Easy to integrate into DIY electronics projects 📋 Technical Specifications Product Type: DC-DC Boost Converter Module Input Voltage: 2V–24V DC Output Voltage: 5V–28V adjustable Maximum Output Current: 2A Peak Output Current: Up to 2A Efficiency: >93% Input Connector: USB Type-C Product Size: 30 × 17 × 8mm Weight: Approximately 4g Condition: New 🔧 Applications Arduino and microcontroller projects Raspberry Pi and electronic development projects Battery-powered devices Portable power systems GPS and sensor projects LED applications Robotics projects Motors and actuators DIY power supplies Low-voltage to higher-voltage power conversion Portable electronic equipment 🛠️ How It Works This module uses a DC-DC boost conversion circuit to increase the input DC voltage. For example: 3.7V battery → 5V output 5V input → 9V output 5V/12V input → higher adjustable output The required output voltage can be adjusted according to the application. ⚠️ Important Notes This is a boost/step-up module; the output voltage cannot be lower than the applicable input voltage range. Do not exceed the specified 24V maximum input voltage. Do not exceed the 2A maximum output current. Actual maximum output power depends on input voltage, output voltage, cooling and module operating conditions. At higher output power, adequate ventilation/cooling may be required. Always verify the output voltage with a multimeter before connecting sensitive electronics. Do not short-circuit the output. The module does not automatically regulate to 5V/9V/12V/28V; the output must be set to the required voltage. 📦 Package Includes 1 × DC-DC Adjustable Boost Module 2V–24V to 5V/9V/12V/28V, 2A, Type-C
400W DC-DC Step-up Boost Converter Constant Current Power Supply Module LED Driver Step Up Module
[Step UP Buck Converter] This is a great 400W DC to DC step-up power supply module for electric equipment, digital products, laptop, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference. There are 2 heat sinks that would ensure a better heat dissipation. It can also be used as a driver for high power LED lights or voltage regulator for solar panels. Features: Input and output are designed with screw terminals for convenient wire connection and disconnection. High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference. There are 2 heat sinks that would ensure a better heat dissipation. It can also be used as a driver for high power LED lights or voltage regulator for solar panels. Output Voltage/Current Adjustment: Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage. Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery charging, connect to output after battery is fully discharged. Because if the more energy is left in battery, the less charging current will be. Specification: Input Voltage: DC 8.5V to 50V Output Voltage: DC 10V to 60V Max. Input Current: 15A Max. Output Current: 12A Quiescent Current: 10mA Constant Current Range: 0.2A to 12A Operating Temperature: -40° to 85° Package Included: 1 x Boost Module 400W DC-DC Step-up Boost Converter Constant Current Power Supply Module 15A Step-Up LED Driver
DC 3.6V-6V To 400KV Boost Step Up Power Module High Voltage Generator
[Step UP Buck Converter] Description Overview of this 3.6V-6V To 400KV step up high voltage generator Introducing the DC 3.6V-6V To 400KV Boost Step Up Power Module, a high voltage generator designed for various applications. This module operates efficiently, converting input voltages between 3.6V and 6V into an impressive 400KV output. Its step-up capability makes it an ideal choice for applications requiring high voltage, offering reliability and performance. Equipped with advanced technology, this boost converter ensures stable and consistent high voltage generation. Its compact design allows for versatile use in projects where space is a consideration. The 3.6V-6V To 400KV high voltage generator module is a trusted solution higher voltage. It is also use by enthusiasts, hobbyists, and professionals seeking a compact and efficient way to generate high voltages for experiment and electronic projects. Feature Input Voltage Range: The module operates easily within the input voltage range of 3.6V to 6V. And it also provide flexibility for a variety of power sources. High Voltage Output: With an impressive output voltage of 400KV. This module is also designed to deliver a trusted high voltage power supply for your projects. Efficient Boost Conversion Technology: Employing advanced step-up conversion technology. This module ensures efficiency to boost the input voltage to the desired 400KV output. Compact Design: The module feature a compact and space saving design. And also make it perfect for use in various electronic projects and experiments where space efficiency is crucial. Versatile Applications: Whether you’re engage in experiment setups, electronic project, or applications that demand a robust high voltage generator. This module proves to be a versatile and dependable solution. Specification Specification Details Input Voltage Range 3.6V – 6V Output Voltage 400KV Conversion Type Boost (Step Up) Efficiency Upto 93% Compact Design Yes, space-efficient for various applications Technology Advanced step-up conversion technology Applications Versatile, suitable for diverse high-voltage needs Weight 150gm Built-in Protections Overcurrent protection and input reverse polarity protection Main application of this 3.6V-6V To 400KV step up high voltage generator Educational Projects: This 3.6V-6V To 400KV high voltage generator module is perfect for education purposes. And also offers a hands on approach for students to delve into the fascinating world of physics and electronics. Whether used in classrooms or home based experiments. It also provides a safe and effective means to understand the principles of voltage conversion and boost circuit. High Voltage Experiments: For electric students who are passionate about exploring the realms of high-voltage electronics. It allows users to conduct a wide array of experiments and projects that need an elevated voltage levels. And also enable a deeper exploration of electronic phenomena and electric behavior. Electronic Prototyping: In the realm of electronic prototyping, where the translation of conceptual designs into tangible electronic circuits takes place. This power module serves as a key component. Its ability to deliver higher voltage levels becomes crucial for testing and refining prototypes. And also ensure that electronic devices meet their voltage requirements effectively. Scientific Research: 3.6V-6V To 400KV high voltage generator is also use as a trusted asset in their experiments. The capacity to generate high voltage is often important for various scientific studies. Electronic Art Installations: For artists working on electronic art installations that demand unique lighting effects or interactive elements with heightened voltage. this power module also use as a creative medium. Package Includes: 1 x 400KV Step Up Power Module
DC 3V-6V to 1000KV 1000000V Boost Step-up Power Module
[Step UP Buck Converter] Description Overview of this DC 3V-6V to 1000KV step up high voltage generator The DC 3.6V-6V To 1000KV Boost Step Up Power Module is a cutting edge high voltage generator designed for diverse applications. With a focus on safety and efficiency. This module easily transforms low input voltages of 3.6V to 6V into a powerful output up to 1000KV. Ideal for high-voltage experiments, education purposes, and prototype. It also provides a versatile solution for various electronic projects. Featuring advanced step-up DC conversion technology, this module ensures stable and reliable performance. Its compact design also make it perfect for use in a wide range of projects. The input range of 3V-6V offers flexibility, and the adjustable output allows users to fine-tune the voltage as needed. With a focus on user safety, the module includes built-in protective featur to prevent overloading and ensure efficient operation. This makes it an excellent choice for experimentation. And also enable users to observe and understand high-voltage principles while maintaining a reliable and secure environment. Elevate your projects with this versatile high-voltage generator, perfect for education institute, research lab. Features High Voltage Output for Varied Applications: The DC 3V-6V to 1000KV high voltage generator also contain a remarkable high voltage output. This capability opens the door to a wide range of experimental setups, scientific projects, and practical applications where such high voltage are important. Versatile Compatibility with Input Range: Operating easily within the input voltage range of 3.6V to 6V. This module offers versatility and compatibility with different power sources. This adaptability ensures its applicability across a diverse array of electronic projects. Compact and Space-Efficient Design: With dimensions 50mm x 30mm x 25mm, the module compact design provide easy integration into various electronic setups. Its space efficient form factor is ideal for projects with size constraints. Precision with Adjustable Output: The module provides users with the flexibility to fine-tune the output voltage according to specific project needs. This adjustability ensure precision in voltage control, catering to the needs of different applications. Enhanced Safety through Built-in Protection: This module prioritizes it by incorporating built in protection mechanism. These feature prevent over loading and ensure a secure and reliable high voltage generation experience. Specifications: Specification Value Input Voltage (V) 3.3V~5V DC Maximum Operating Current (A) 2 – 5 Max. Output Voltage 1000 KV Max. Output Current (A) 0.5 A Discharge Time 10s Color Black Length (mm) 8.8 Width (mm) 2.67 Height (mm) 2.3 Weight (gm) 45 Efficiency Up to 93% Main application of this DC 3V-6V to 1000KV step up high voltage generator High-Voltage Experiments and Demonstrations: This versatile DC 3V-6V to 1000KV Boost Step up Power Module is perfect for safely conduct a wide range of high voltage experiment. This module also use an important tool for showcase the principle of high voltage in a controlled environment. Education tools: Elevate your physics and electronics education with the inclusion of this module in class room activities. The adjustable high voltage output allows students to explore various aspects of electricity. And foster a hands on learning experience that enhance knowledge. Powering Electronic Projects: Integrate this module into your electronic projects that demand a reliable and adjustable high voltage power source. Its compact design and efficiency make it perfect to power various electronic applications where precise control over voltage is crucial for optimal project performance. Captivating Static Electricity: Capture the attention of audiences with captivating static electricity demonstrations. This module provides the necessary power to create visually striking and education displays. Research and Development in Electric Engineering: For professionals in electric engineering and researcher. This module also use a valuable asset in research and development. Its efficiency and versatility make it an ideal tool for testing projects in the field of electric engineering. Package Includes: 1 x 1000KV Step Up Power Module
0.28 inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt
[Ammeter and Voltmeter] The 0.28 Inch Digital DC Voltmeter Ammeter 100V 50A with Shunt is a compact and high-accuracy dual LED panel meter designed to measure DC voltage and current simultaneously on a single display. With a measurement range of up to 100V DC and 50A, this meter is ideal for monitoring battery systems, power supplies, solar setups, chargers, and DIY electronics projects. This panel meter features a bright dual LED display that clearly shows voltage and current values at the same time, making real-time monitoring easy and convenient. Its small size and lightweight design allow easy installation in panels, enclosures, and control boxes. The module comes with two wiring harnesses — one for powering the meter (red and black pair) and another for measurement and shunt connection. The meter operates from an independent 5V power supply (recommended) for best accuracy. While it can be powered from 6–30V DC, using the same supply as the measured source may slightly affect current readings. A 50A external shunt is included for accurate current measurement. Different wiring variants may be shipped, but functionality remains the same. This meter is an excellent choice for battery packs, solar systems, DC power supplies, electric vehicles, inverters, and lab projects. ⭐ KEY FEATURES ✔ Measures DC Voltage up to 100V✔ Measures DC Current up to 50A (with included shunt)✔ Dual LED Display – Shows volts & amps simultaneously✔ 0.28 Inch Compact Panel Size✔ High resolution 0.1V measurement✔ Small, lightweight & easy to install✔ Separate power input harness for stable readings✔ Ideal for battery & DC system monitoring✔ Brand new, high-quality module 🔧 TECHNICAL SPECIFICATIONS Display Size: 0.28 inch LED Voltage Measurement Range: 0 – 100V DC Current Measurement Range: 0 – 50A DC Voltage Resolution: 0.1V Meter Power Supply: 5V DC (recommended) Supply Range: 6V – 30V DC (separate supply preferred) Display Type: Dual LED (Volt + Amp) Shunt: External 50A shunt included Mounting Type: Panel mount Wiring: Dual harness (power + measurement) ⚠️ IMPORTANT NOTES Use a separate 5V supply for best accuracy If input voltage is above 5V, use a buck converter Wiring color/order variants may differ but function is same Incorrect wiring can damage the module 🎯 APPLICATIONS Battery monitoring systems Solar power setups DC power supplies EV & e-bike systems Inverter projects DIY electronics labs Charging stations 📦 PACKAGE INCLUDES 1 × 0.28″ Dual LED DC Volt Ammeter Panel Meter 1 × 50A Current Shunt
Out of stock0.28 inch DC 100V 100A LED Digital Ammeter-Voltmeter With Shunt
[Ammeter and Voltmeter] This is 0.28 inch DC 100V 100A LED Digital Ammeter–Voltmeter With Shunt. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage, and current are displayed on the same screen at the same time. This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load. Note: There are different wiring variants with the same working functionality is available which will be shipped randomly. If the input voltage is more than 5V then please use the buck converter. Features : It measures up to 100V and 100A DC. Very handy and small in size. It requires a power supply of 5V. 100% Brand new and high quality. Package Includes: 1 x Dual LED Panel Ampere Voltage Meter. 1 x Current Shunt.
HC-05 6pin Bluetooth Module with Button
[Bluetooth Module] HC-05 Bluetooth Module Are you in search of an HC-05 Bluetooth Module, a versatile and cost-effective solution for your wireless communication needs? Look no further. This Bluetooth module offers seamless wireless communication for a wide range of applications, from GPS navigation systems to water and electricity meter readings. Whether you're an electronics enthusiast, a DIY hobbyist, or a professional looking for competitive pricing, this module is designed to meet your requirements. The HC-05 Bluetooth Module lets you switch between Master and Slave modes with ease using AT Commands, and it comes pre-configured in Slave Mode. Its compatibility with devices such as phones, laptops, and microcontrollers ensures hassle-free connectivity. With a USART interface, it's a perfect fit for microcontrollers supporting USART communication. Plus, you can configure its settings effortlessly using the command mode. Ideal for DIY projects and data exchange, this Bluetooth module provides LED feedback for seamless operation, giving you the best bang for your buck. Buy the HC-05 Bluetooth Module today and enjoy top-notch wireless communication at a competitive price. The HC-05 Bluetooth Module with Baseplate is a slave-only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 module ,which can do both master and slave. The slave mode in HC-05 Bluetooth cannot initiate a connection to another Bluetooth device but can accept connections. Master mode can initiate a connection to other devices. Key Features: Working current: matching for 30 mA, matching the communication for 8 mA. With the computer and Bluetooth adapter, PDA, seamless connection equipment. Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards. Potter default rate of 9600, the user can be set up. Bluetooth protocol: Bluetooth Specification v2.0+EDR Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps. Security: Authentication and encryption. Profiles: Bluetooth serial port. HC-05 Bluetooth Module Pin Diagram: HC-05 Bluetooth Module Pin Description: Pin Number Pin Name Description 1 Enable / Key This pin is used to switch between command mode (set low) and Data Mode (set high). The default setting of this HC 05 Bluetooth module is Data Mode. 2 Vcc This pin can be used to power the Bluetooth module. It has an operating voltage of +5V DC. 3 Ground Connect the module's ground pin to the Microcontroller’s Ground Pin (GND). 4 TX – Transmitter Sends serial data to the MCU. This pin will distribute all Bluetooth data in the form of serial data to the Microcontroller. 5 RX – Receiver Obtain Serial Data. This pin will transmit all serial data that is provided to it over Bluetooth. 6 State The on-board LED attached to the state pin can be used as feedback to see if Bluetooth is functioning properly. 7 LED Indicates the status of Module Blink once in 2 sec: Command Mode Repeated Blink: Waiting for connection in Data Mode Blink twice in 1 sec: Connection successful in Data Mode 8 Button Used to control the Key/Enable pin to switch between Data Mode and command Mode HC-05 Default Values: Bluetooth Name: “HC-05” Password: 1234 or 0000 Communication: Slave Mode: Data Mode Data Mode Baud Rate: 9600, 8, N, 1 Applications Can be used for wireless communication between two microcontroller units. Communicate with Laptop mobile phones etc. Data Logging Wireless Robots DIY Home Automation Projects GPS-based DIY projects. Specifications: Serial communications 9600-115200bps Frequency 2.4~2.524 GHz Power Supply 5VDC Operating Current 30mA Range <100m Dimensions 30mm x 14mm x 2.2 mm Weight 5 grams Package Includes: 1 x HC-05 Bluetooth Module
Type C BMS 3S 2A 18650 Lithium Battery Charger Board USB C Step-up Boost Module for Li-Po Polymer Power Bank
[Step UP Buck Converter] Description The 3S Charging Module Battery Charging Board is a compact and versatile solution for efficiently charging 18650 lithium-ion batteries. Designed with a USB Type-C input for convenient power connection, this module supports 3S configurations, making it suitable for a range of applications. Feature : Charging current : 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version) Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 2A(2A Version); Charging voltage : 12.6V Charging current : 0.74A(2A Version); Switching frequency up to 1MHz Quasi-CV mode to compensate for the voltage loss on the battery’s internal Resistance and trace resistance automatic recharge Good adaptability to input supply with limited driving capability With battery overvoltage protection, low voltage protection, and short circuit protection Great for PDA, MP3, MP4, cameras, Bluetooth applications, games consoles, notebooks, 18650 lipo lithium battery, phones, solar charging, audio equipment, POS, electric fan, Type-C charging equipment, etc. Package Include: 1 x Charging Module Battery Charging Board Type-C Step-Up Boost Module 18650 Lithium Battery Charger Module( 3S 2A)
Out of stock12-84V or 7-120V Battery Power Display Meter Lithium Battery Power Display GY-6GS Green Battery Indicator Pro
[Battery Capacity Tester] Introducing 12-84V or 7-120V Battery Power Display Meter design to accurately monitor battery capacity. This 12-84V or 7-120V Lithium Battery Capacity Meter GY-6GS Green Display is ideal for a range of applications to ensure precise voltage and capacity reading. It is also compatible with lithium and iron lithium battery. This meter also provide real time data with a bright, clear LCD screen. This Lithium Battery Capacity Meter feature a use friendly double button design for quick setup. It allows users to manually switch between battery percentage, voltage, and power off functions. The automatic cycling display and settable auto off function enhance convenience and efficiency. With the 12-84V or 7-120V GY-6GS battery capacity meter, you get an intuitive and reliable tool. The waterproof surface and long-lasting buttons add to its durability. Its alarm function alerts you when the power drops below 20%, ensuring optimal battery management. Features Wide Voltage Compatibility: This Battery capacity meter display support a wide voltage range from 12-84V or 7-120V . It accurately measures and display both lithium and lead acid battery level. Clear and Intuitive Display: The high quality LCD with green backlit ensure visibility from every angle. It clearly shows battery percentage, voltage, and status in various lighting condition. User Friendly Design: It is also equipped with a comfortable, long lasting button and waterproof PVC film. The built in buckle allow for easy screw free installation on various device. Safety and Convenience Feature: The backlight flashes an alarm when power drops to 20% or below. It include a switch to turn off power & prevent from consumption when not in use. Customizable Settings: Easily set preferences with the double button design in just seconds. The meter features automatic and manual display cycles, auto off delay, and dual discharge curve option. Specification Voltage Range: 7-120V Battery Type Compatibility: Lithium Battery, Display Type: LCD Display Color Background: Green Measurement Accuracy: ±1% Operating Temperature: -10°C to 65°C Power Consumption: <20mA Dimensions: 61mm x 33mm x 13mm Setting Instruction of 12-84V or 7-120V Battery Power Display Meter Lithium Battery Power Display GY-6GS Green Battery: Long press the Set key, power supply to the product, enter the setup interface Press the Set key to select the battery specification ( Lithium battery (L), Fe battery(F), Lead Acid(P)) Short press the Function key to select the number of battery strings (increasing for the set button, decreasing for function button) Long press the Function key to set s mode. 12-84V or 7-120V any model can dispatch depends on stock. Package Contains : 1 x 7-120V Battery Power Display Meter Lithium Battery Power Display GY-6GS Green Lithium Battery

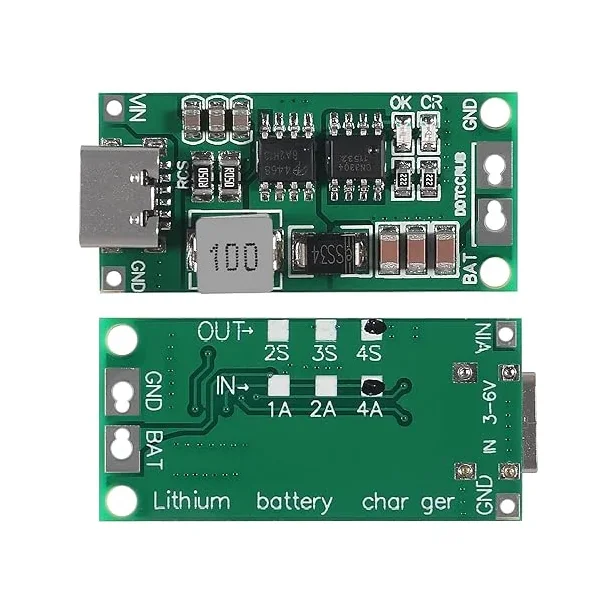

Type C BMS 4S 2A 18650 Lithium Battery Charger Board USB C Step-up Boost Module for Li-Po Polymer Power Bank
[Li-ion Rechargeable Battery Charger, Step UP Buck Converter] Product description Multi-Cell 2S 3S 4S Type-C To 8.4V 12.6V 16.8V Step-Up Boost LiPo Polymer Li-Ion Charger 7.4V 11.1V 14.8V 18650 Lithium Battery Description: 2-Cell(2S) 8.4V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version) Charging voltage : 8.4V Charging current : 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version) 3-Cell(3S) 12.6V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version) Charging voltage : 12.6V Charging current : 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version) 4-Cell(4S) 16.8V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version Charging voltage : 16.8V Charging current : 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version)
Mini MP1584 DC-DC 3A Adjustable Buck Module
[Step Down Buck Converter] The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter that uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET. It features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage. Small size, lightweight, low internal power consumption, and wide input voltage range of 4.5V to 28V make this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices. Applications: DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects Robotics Breadboard power supply Manual speed adjustment of small DC motors Power Supply for RC project planes, cars, helicopters Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack Receiver/servo power supply Communications equipment power supply Mobile equipment power supplies Note: PCB board color may be different from the actual product. Features: Wide 4.5V to 28V Operating Input Range High-Efficiency Pulse Skipping Mode for Light Load Ceramic Capacitor Stable Internal Soft-Start Internally Set Current Limit without a Current Sensing Resistor
12V 24V to QC3.0 Fast Charge Dual USB Charging Board Step-Down Module
[Step Down Buck Converter] Dual USB Output • Fast Charging • High Efficiency • Wide Input Voltage The Dual USB QC3.0/QC2.0 DC-DC Buck Converter Module is a compact and high-efficiency DC step-down power supply designed to convert 6V–32V DC input into dual USB fast-charging outputs. Equipped with two USB ports, it allows simultaneous charging of two devices while supporting multiple fast-charging protocols for maximum compatibility. Using advanced synchronous buck conversion technology, the module delivers up to 24W output power with a conversion efficiency of 90%–97%. It automatically detects compatible devices and adjusts the output voltage between 3V and 12V to provide fast, safe, and efficient charging. The module supports a wide range of charging standards including Qualcomm Quick Charge 2.0 & 3.0, Huawei FCP/SCP, Samsung AFC, Apple Charging Protocol, BC1.2, DCP, and Spreadtrum SFCP, making it suitable for charging smartphones, tablets, GPS devices, Bluetooth speakers, and other USB-powered electronics. Its wide input voltage range makes it ideal for automotive power systems, solar charging applications, battery-powered devices, industrial equipment, and DIY electronic projects. ⭐ Features Dual USB charging ports Supports Qualcomm Quick Charge 2.0 & 3.0 Wide input voltage: 6V–32V DC Automatic output voltage adjustment (3V–12V) Maximum output power up to 24W High conversion efficiency (90%–97%) Supports multiple fast-charging protocols Built-in output voltage compensation Stable and reliable performance Compact PCB design for easy installation 📋 Technical Specifications Product Type: DC-DC Buck Converter Fast Charging Module USB Output Ports: 2 Input Voltage: 6V–32V DC Default Output Voltage: 5V Fast Charging Output Voltage: 3V–12V (Automatic Negotiation) Maximum Output Power: Up to 24W Typical Output Modes: 5V / 3.4A 9V / 2.5A 12V / 2A Conversion Efficiency: 90%–97% Charging Protocols Supported: Qualcomm QC2.0 Qualcomm QC3.0 Huawei FCP Huawei SCP Samsung AFC Apple Charging Protocol BC1.2 DCP SFCP Output Voltage Compensation: Supported Cooling Method: Natural Air Cooling Mounting Type: PCB Mount Material: Metal + Plastic 🔧 Applications Suitable for: Car USB charger conversion Solar charging systems Battery-powered projects DIY power supplies Smart home electronics Mobile phone charging Tablet charging GPS devices Bluetooth speakers Industrial control equipment Portable charging stations Embedded electronic projects 📦 Package Includes 1 × Dual USB QC3.0/QC2.0 DC-DC Buck Converter Fast Charging Module
QC3.0 QC2.0 USB DC-DC Buck Converter Fast Charging Module | 6–32V Step-Down to 3V / 5V / 9V / 12V | 4-Channel Quick Charger Circuit Board
[Step Down Buck Converter] 📝Description This QC3.0 QC2.0 USB DC-DC Buck Converter Charging Module is designed to convert a wide DC input range of 6V to 32V into stable fast-charging USB outputs. It supports Quick Charge 2.0 and 3.0 protocols, enabling intelligent voltage negotiation for rapid and efficient charging. The module features four independent output channels, making it suitable for charging multiple devices simultaneously. With support for common automotive and industrial voltages such as 9V, 12V, and 24V, it is perfect for use in cars, bikes, solar systems, battery packs, power banks, and embedded electronics projects. Thanks to its high-efficiency DC-DC step-down design, the module minimizes heat generation while maintaining reliable power delivery. This makes it an excellent choice for DIY enthusiasts, repair technicians, and developers looking to integrate fast USB charging into their systems. ⭐ Key Features ✔ Supports QC3.0 & QC2.0 Fast Charging Protocols ✔ Wide Input Range: 6V–32V DC (9V / 12V / 24V systems) ✔ Multi-Voltage Output: 3V / 5V / 9V / 12V ✔ Four-Channel USB Output for simultaneous charging ✔ High-Efficiency Buck Converter with low heat generation ✔ Automatic Voltage Negotiation for connected devices ✔ Ideal for automotive, solar, battery, and DIY electronics projects 🔧 Technical Specifications Input Voltage: 6V – 32V DCSupported Input Systems: 9V / 12V / 24VCharging Channels: 4 USB outputsFast-Charging Standards: QC2.0, QC3.0Supported Protocols: DCP BC1.2 Apple Charging Protocol Samsung Charging Protocol Huawei Fast Charge: FCP / SCP Huawei AFC Spreadtrum Fast Charge Protocol (SFCP) Qualcomm QC2.0 / QC3.0 Conversion Type: DC-DC Buck (Step-Down)Application Areas: Automotive USB charger, solar charging system, battery-powered devices, DIY electronics 📦 Package Includes 1 x 4 CHANNEL USB QC3.0 QC2.0 DC-DC Buck Converter Charging Step Down Module 6-32V 9V 12V 24V to Fast Quick Charger Circuit Board
250W High Power Constant voltage Current Adjustable Aluminum Substrate LED Driver Module
[Step UP Buck Converter] The 250W High Power DC-DC Boost Converter with Constant Voltage & Constant Current Control is a versatile and efficient power module designed for demanding applications such as LED driving, battery charging, and power supply systems. Built on an aluminum substrate for superior heat dissipation, this module ensures stable performance even under high load conditions. It supports adjustable output voltage (10V–50V) and current control up to 6A (10A peak), making it ideal for precision applications. With high efficiency up to 96%, premium components, and dual potentiometer control, this module delivers reliable and customizable power output for both hobbyists and professionals. Key Features ⚡ High Power Output (Up to 250W)Supports high-power applications with stable voltage and current control. 🔧 Adjustable Voltage & CurrentFine-tune output using onboard multi-turn potentiometers for accurate control. 🔥 Aluminum Substrate Heat DissipationIntegrated heat sink design ensures continuous operation under heavy load. 📈 High Efficiency (92%–96%)Minimizes power loss and improves system performance. 🧠 Stable Constant Current OutputLow temperature drift (<1%) ensures reliable performance for LED applications. 🔌 Wide Application SupportSuitable for LED drivers, battery charging, solar systems, and DIY power supplies. Specifications Specification Description Module Type Non-Isolated Boost Converter Output Voltage 10V – 50V (Adjustable) Output Current Up to 6A (10A peak) Constant Current Range 0.2A – 6A Output Power Up to 250W Efficiency 92% – 96% Input Voltage 10V – 40V Static Current 10mA Mounting 4 × 3mm Screw Holes Cooling Aluminum Substrate Applications 💡 High Power LED Driver🔋 Battery Charging (Li-ion, Lead Acid, etc.)☀️ Solar Power Regulation🚗 Vehicle Power Supply Systems🔧 DIY Adjustable Power Supply💻 Laptop & Portable Device Power Usage Instructions Connect VIN+ / VIN- to input power supply Connect OUT+ / OUT- to load Adjust RV1 (Voltage) as per requirement Adjust RV2 (Current) based on load ⚠️ Always set voltage/current before connecting load Precautions Do not reverse input/output polarity Ensure proper heat dissipation at high load Input voltage must be at least 2V lower than output Avoid exceeding maximum current/power limits Do not adjust current using short circuit method Package Includes 1 × 250W High Power DC-DC Boost Converter Constant Voltage & Current Module
Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
Specifications:- Input Voltage – 4.5V to 30V DC Input Current – <= 20mA Display Color – Red (Voltage) , Blue (Current) Measuring Voltage Range – 0V to 100V DC Measuring Currrent Range – 0A to 10A Measurement Accuracy – 1% Minimum Voltage Resolution – 0.1V Minimum Current Resolution – 0.01A Size – 48x29x21mm Note:- Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning Wiring:- Black line (thin): vacant or buck circuit (module) Negative Red line (thin): power supply Positive Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input Positive Package Contains:- 1 x Digital Voltmeter & Ammeter Module 1 x Two wire thin connector 1 x Three wire thin connector
10A 300W DC-DC Step-Down Adjustable Constant Voltage & Constant Current Module XL4016
[Step Down Buck Converter] 10A 300W DC-DC Step-Down Adjustable Constant Voltage & Constant Current Module XL4016 The 10A 300W DC-DC Step-Down Adjustable Constant Voltage & Constant Current Module is a high-power adjustable buck converter designed for applications requiring regulated output voltage and controlled output current. It can be used as a high-power LED driver, battery charging module, regulated power supply, and vehicle power supply. The module features independent CV (Constant Voltage) and CC (Constant Current) adjustment using onboard 3296 multi-turn potentiometers, allowing precise adjustment of the output voltage and current. A dual heatsink design helps dissipate heat from the power components during high-power operation. With a maximum advertised power rating of up to 300W, the module is suitable for high-power applications when adequate cooling and an appropriate input supply are provided. For continuous high-current operation, additional forced-air cooling is recommended. ⭐ Key Features Up to 300W output power 10A maximum output current Adjustable constant voltage and constant current CV and CC independent adjustment Output voltage continuously adjustable Typical output voltage range: 1.25V–35V High-power DC-DC step-down/buck converter Dual heatsink design for improved heat dissipation Independent heatsink for MOSFET/Schottky diode section 3296 multi-turn potentiometers for precise adjustment High-frequency capacitors for reduced output ripple Large Sendust core Double pure-copper winding Suitable for LED driver and battery charging applications Additional cooling recommended for continuous high-power operation 📋 Technical Specifications Product Type: DC-DC Step-Down Buck Converter Function: Constant Voltage / Constant Current Maximum Output Power: Up to 300W Maximum Output Current: 10A Recommended Continuous Current: Up to approximately 8A with additional cooling Output Voltage: Continuously adjustable, approximately 1.25V–35V Minimum Voltage Difference: Approximately 1V Adjustment: CV / CC Multi-Turn Potentiometers Potentiometer Type: 3296 Multi-Turn Operating Temperature: -40°C to +85°C Output Ripple: Approximately 50mV under the stated test conditions Cooling: Dual Heatsink Additional Cooling: Cooling fan recommended for continuous high-power operation Converter Type: Step-Down / Buck 🔧 Applications High-Power LED Driver Constant Current LED Power Supply Lithium Battery Charging Lead-Acid Battery Charging Ni-Cd / Ni-MH Battery Charging 6V Battery Charging 12V Battery Charging 14V Battery Charging 24V Battery Charging Solar Panel Power Systems Wind Generator Applications Vehicle-Mounted Power Supply Laptop Power Supply Regulated DC Power Supply Low-Voltage Power Supply Systems 🎛️ CV & CC Adjustment The module has two independent multi-turn adjustment potentiometers: CV (Constant Voltage): Adjusts the required output voltage. CC (Constant Current): Adjusts the maximum/constant output current. Turn the potentiometers clockwise to increase and anticlockwise to decrease the corresponding setting. Use a reliable multimeter while adjusting the output voltage and current. 🔋 Battery Charger Application Determine the required battery charging voltage and charging current. Connect a suitable DC input supply to the module while observing correct polarity. Use the CV adjustment to set the required charging voltage. Use the CC adjustment to set the required charging current. Connect the battery to the output while observing correct polarity. Monitor the charging process and ensure the voltage and current remain within the battery manufacturer's specifications. 💡 Constant Current LED Driver Application Determine the LED's required operating current and maximum operating voltage. Adjust the output voltage to a low safe level before connecting the LED. Use the CC adjustment to set the required LED current. Adjust the CV setting according to the LED's required operating voltage. Connect the LED and verify the output voltage and current with a multimeter. 🛠️ Adjustment Instructions If the output voltage initially follows the input voltage and cannot be adjusted, turn the appropriate potentiometer counterclockwise for multiple turns and then adjust again. Turn the adjustment potentiometers clockwise to increase and anticlockwise to decrease. Always use a multimeter when setting voltage or current. The potentiometer closest to the output side is specified for CC/current adjustment. The potentiometer closest to the input side is specified for CV/voltage adjustment. 📦 Package Includes 1 × 10A 300W DC-DC Step-Down Adjustable Constant Voltage & Constant Current Module ⚠️ Precautions This is a step-down (buck) converter; the input voltage must be higher than the required output voltage. Do not exceed the module's maximum voltage, current, or power limits. 300W is the maximum advertised power rating; actual continuous power depends on input voltage, output voltage, current, efficiency, and cooling. For continuous high-current operation, use a cooling fan with the heatsink. Do not short-circuit the output. Observe correct input and output polarity. Use appropriate protection when charging batteries. Never leave a battery charging unattended. Ensure the module's heatsink does not become excessively hot during operation.
USB QC3.0 QC2.0 DC to DC Buck Converter Charging Module Fast Quick Charger
[Step Down Buck Converter] This module accepts a 6-24V Input and supports USB QC3 Charging on the output. It takes care of regulating the signals on the USB Data transer lines and offers fast charging when a compatible device is connected. Great for adding USB charging in your next project. Supports: QC2.0, QC3.0, MTK PE1.1/2.0, FOR Apple, FOR Samsung AFC,FOR Huawei FCP, FOR Spreadtrum SFCP Input voltage: DC 6~30V Output voltage: default 5V, adjust range 3~12V according to fast charging protocol Output capacity: single-port rated current 2.4A, Rated power 24W Protection measures: Output overvoltage protection, limit the output voltage does not exceed 13V (in the case of chip failure); input with a fuse. This mini DC-DC step-down voltage converter module supports 6-24V voltage input and 5V 3A output with input polarity reverse protection and output overvoltage protection, short circuit protection. It adopts synchronous rectification technology to ensure ultra-high power conversion up to 97.5% to take full use of your input power. On-board female type A USB port with identification circuit perfectly fit for smartphones as well as it can be useful to power or recharge any electronic gadget which required 5V input power up to 3A Features: Non-isolated buck module (BUCK) synchronous rectification Maximum Output Current: 3A MAX Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value) Switch frequency: 500KHz Output Ripple: 10mV around (12V to 5V3A) 20M bandwidth Output indicator: The output voltage indicator is red Operating temperature: Industrial grade (-40 to + 85 ) (the higher the ambient temperature, the lower the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection. Flat copper inductor, improve conversion efficiency With output overvoltage protection. There is a 1.5A fuse, output 5V have 300W TVS tube protect your USB device High-quality USB port Output voltage indicator (RED) Small size, Compact Size Input with reverse polarity protection diode, will not damage when input connect incorrectly Ultra-low static current, 0.85 mA only. Do not need to add switch when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable Ultra-small size, 26.4 (L) * 15 (W) * 7.4 (H) mm Input voltage range: 6V-32V Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge Output power: up to 24W (5V/3.4A, 9V/2.5A, 12V/2A, etc.) Output voltage cable compensation function Conversion efficiency: 90%-97% Support multiple fast charging protocols Input overvoltage and undervoltage protection Input overcurrent protection Output overcurrent, short circuit protection Machine over temperature protection Support fast charge agreement Support DCP protocol, BC1.2, Apple, Samsung protocol Support Huawei Fast Charge Protocol FCP/SCP Support Huawei Fast Charge Protocol AFC Support Spreadtrum Fast Charge Protocol SFCP · Support Qualcomm QC2.0 and 3.0 Support MTK PE1.1/PE2.0 Precautions: please enhance heat dissipation when fully used for load output(i.e. 5V@3A with 24V Input). For the ideal case (i.e. 5V@2A output with 12V Input) it does not need to enhance heat dissipation. Applications: Solar panel to mobile phone charging Car charging retrofit Driving recorder power supply Home power supply, smart plug modification Fast charge adapter Package Includes: 1 x USB Step Down DC-DC Converter Module
