SKU: #5113Power & Components

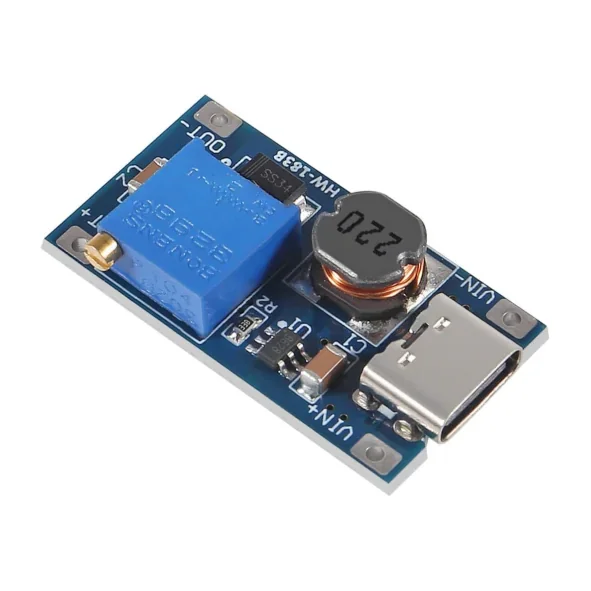

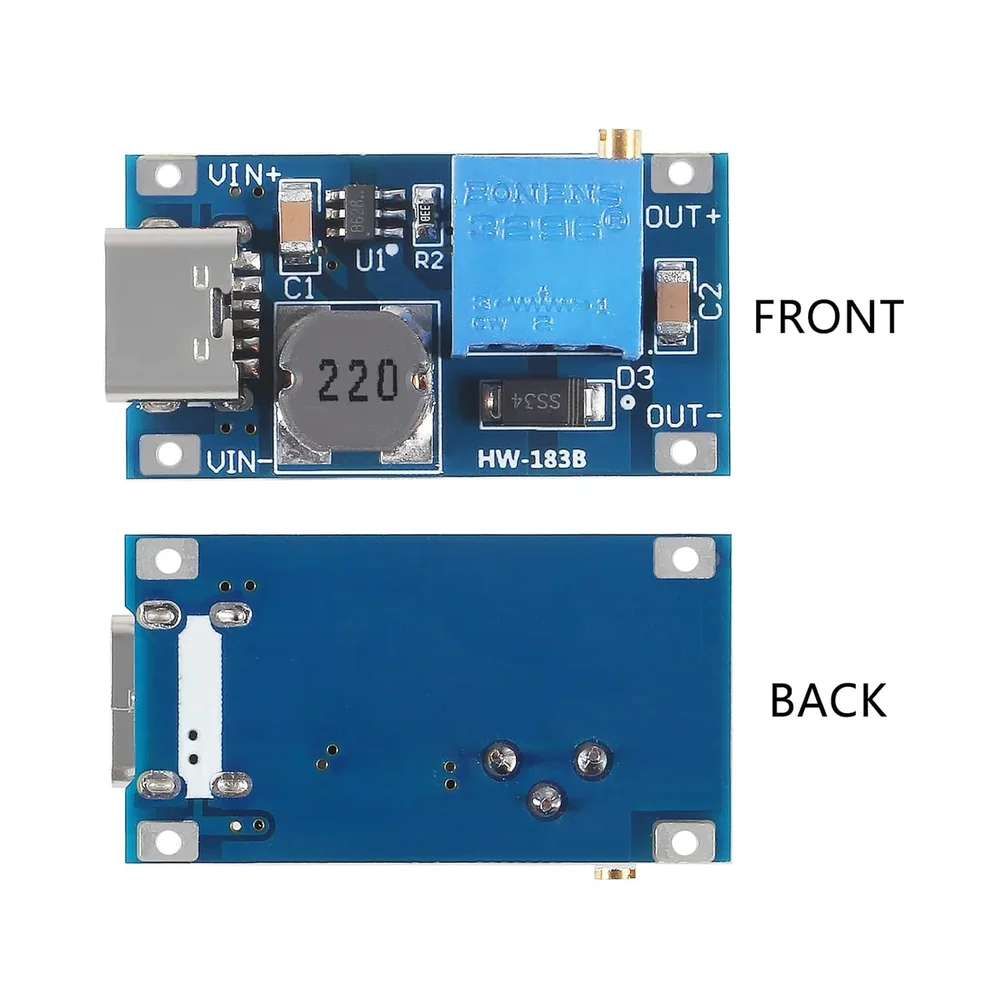

Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A
—
₹52.00
₹45.00
(Inc. GST)Save 13%- •Product Name: Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A
- •Product Category: Power & Components
- •Operating Voltage: 2V–24V DC
- •Max Current: 2A
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •With a compact 30 × 17 × 8mm design and Type-C connector, this module is convenient for projects where space and flexible power input are important
- •⚠️ Important Notes This is a boost/step-up module
In stock(10 units ready to dispatch)
1
Check Delivery Availability of Your Pincode:
SKU: ET05113
Categories: All, Power & Components
10 People watching this product right now!
Description
The Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •With a compact 30 × 17 × 8mm design and Type-C connector, this module is convenient for projects where space and flexible power input are important
- •⚠️ Important Notes This is a boost/step-up module
- •the output voltage cannot be lower than the applicable input voltage range
- •Do not exceed the specified 24V maximum input voltage
- •Do not exceed the 2A maximum output current
- •Actual maximum output power depends on input voltage, output voltage, cooling and module operating conditions
🔹 Technical Specifications
Product Name:Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A
Product Category:Power & Components
Operating Voltage:2V–24V DC
Max Current:2A
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%

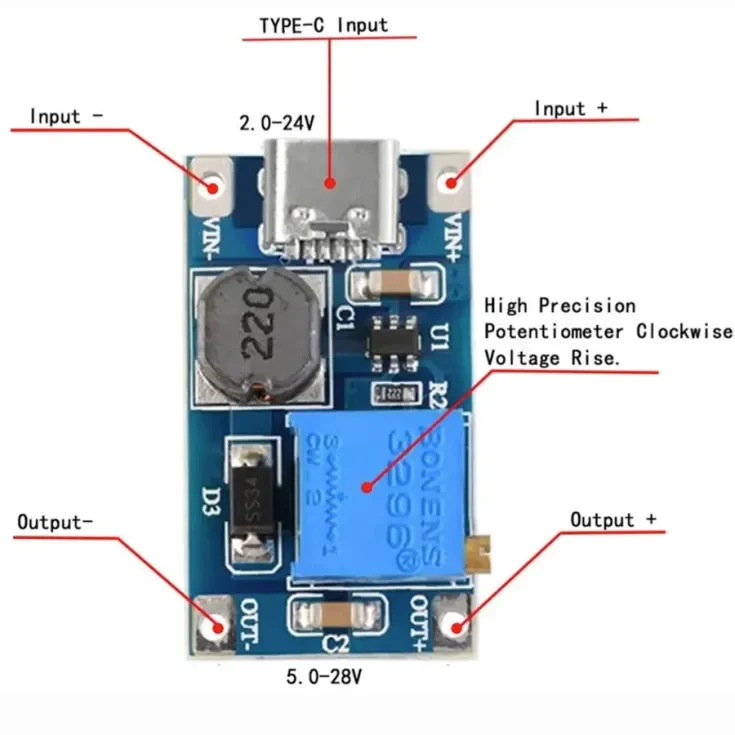

🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •⚠️ Important Notes This is a boost/step-up module; the output voltage cannot be lower than the applicable input voltage range. Do not exceed the specified 24V maximum input voltage. Do not exceed the 2A maximum output current. Actual maximum output power depends on input voltage, output voltage, cooling and module operating conditions. At higher output power, adequate ventilation/cooling may be required. Always verify the output voltage with a multimeter before connecting sensitive electronics. Do not short-circuit the output. The module does not automatically regulate to 5V/9V/12V/28V; the output must be set to the required voltage.
🔹 Package Includes
- ✓1 × Type-C MT3608 Adjustable Dc to Dc Converter 2-24V to 5V-28V 2A
Wholesale Tiered Pricing
Selected Quantity:
Subtotal: ₹45.00 +18% GST
