SKU: #5130Power & Components

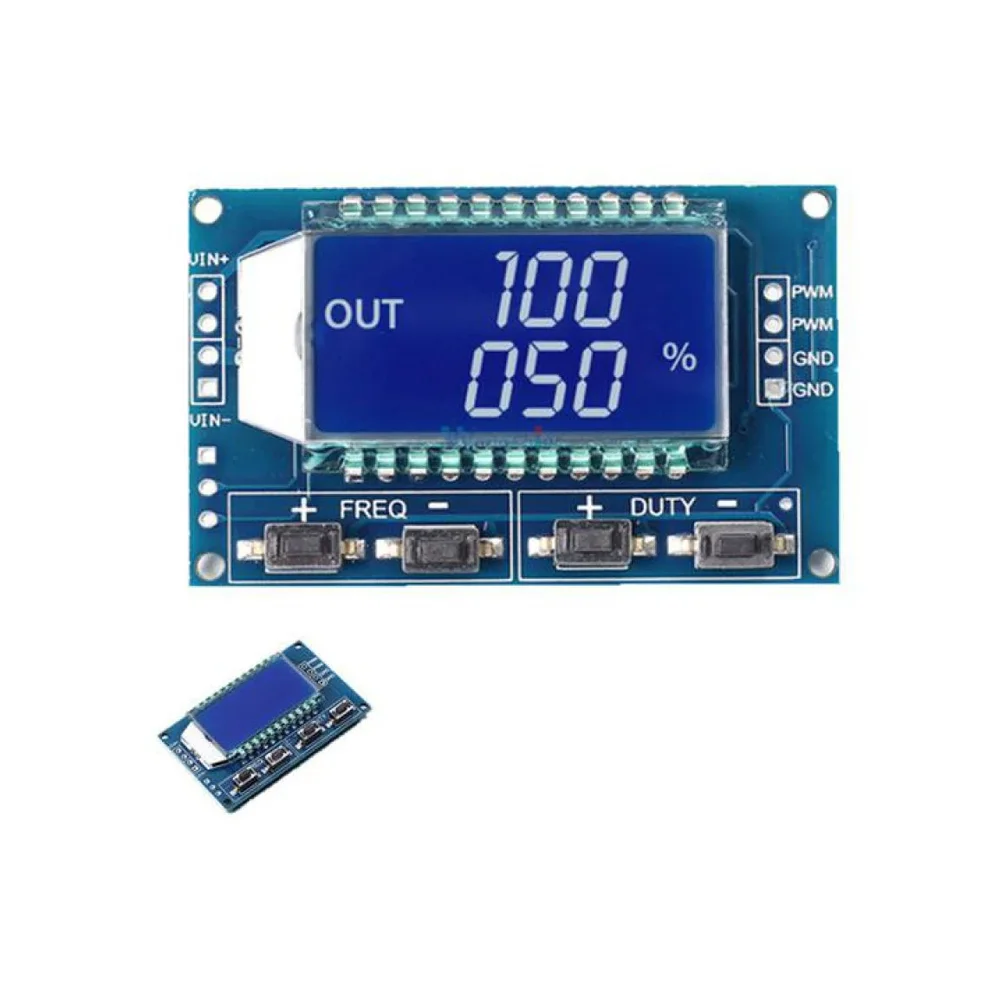

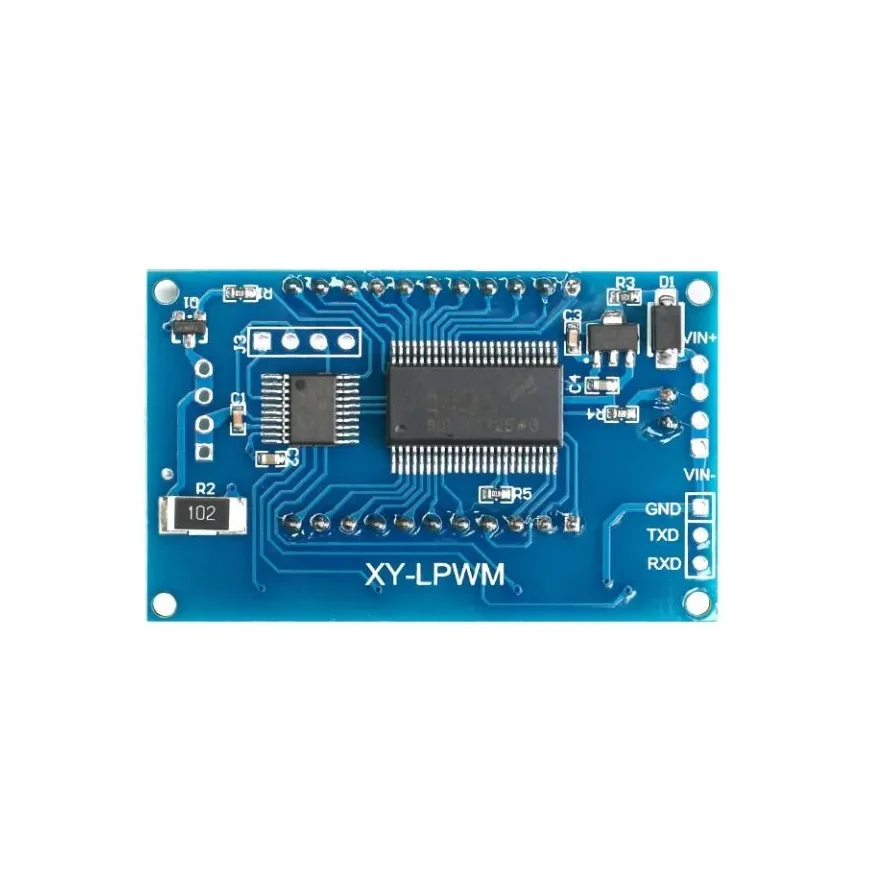

XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module
—
₹275.00
₹239.00
(Inc. GST)Save 13%- •Product Name: XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module
- •Product Category: Power & Components
- •Operating Voltage: 3.3V - 5V DC
- •Speed / Frequency: 9600 bps
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module is a two-channel PWM signal generator
- •It has dedicated switches for adjusting the frequency and duty cycle separately
In stock(10 units ready to dispatch)
1
Check Delivery Availability of Your Pincode:
SKU: ET05130
Categories: All, Power & Components
10 People watching this product right now!
Description
The XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module is a two-channel PWM signal generator
- •It has dedicated switches for adjusting the frequency and duty cycle separately
- •Using this module PWM output, frequency and duty cycle can be set as per requirements
- •(001 ~ 100) Such as D050, set the PWM duty cycle is 50% Read the set parameters Send a “read” string to read the set parameters
- •Set successfully return: DOWN
- •Setup failed to return: FALL
🔹 Technical Specifications
Product Name:XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module
Product Category:Power & Components
Operating Voltage:3.3V - 5V DC
Speed / Frequency:9600 bps
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%
🔹 Pin Configuration & Wiring
Power +DC Power Supply Positive Input (6V to 28V)
Power -DC Power Supply Ground / Negative Input (GND)
Motor +Connect to Motor Positive Terminal
Motor -Connect to Motor Negative Terminal
🔹 Applications
This component is engineered and suitable for:
- •DC motor speed regulation and soft start control
- •Robotics drive train and wheel speed adjustment
- •Cooling fans, exhaust blowers, and thermal management
- •Miniature water pumps and aquarium aeration systems
- •DIY electronics projects, automation circuits, and laboratory benches
🔹 Package Includes
- ✓1 × XY-LPWM Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display Module
