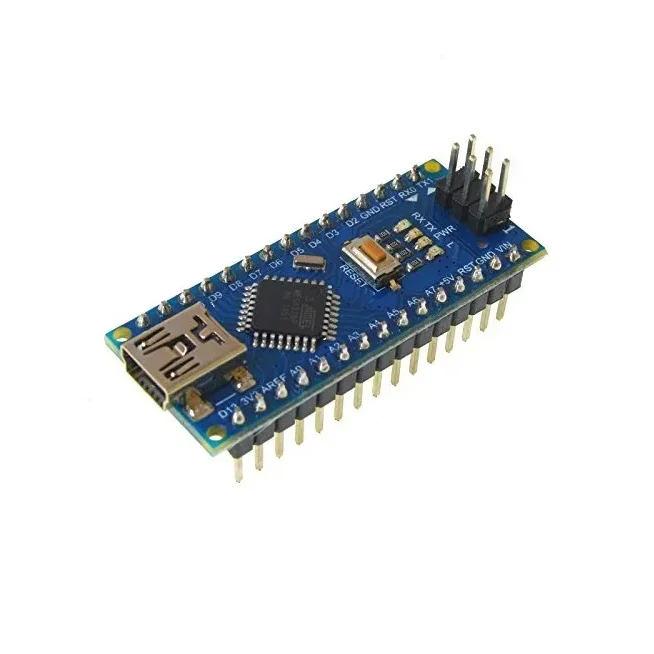

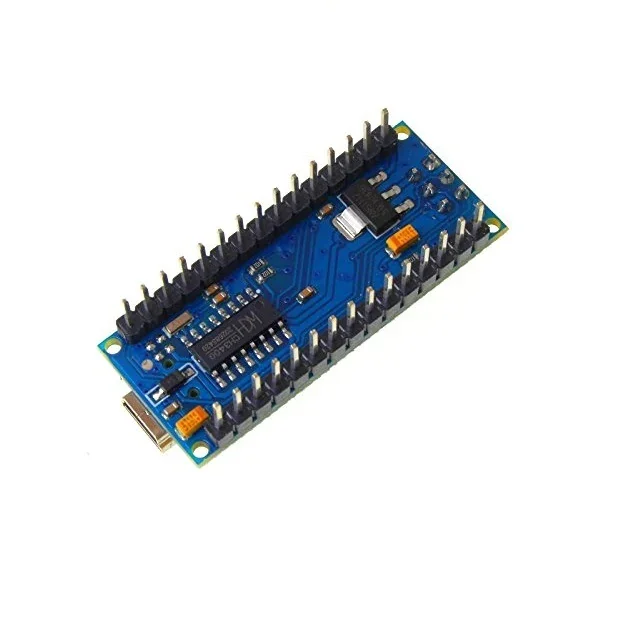

Nano CH340 Chip Board without USB cable compatible with Arduino (Soldered)
- •Product Name: Nano CH340 Chip Board without USB cable compatible with Arduino (Soldered)
- •Product Category: Microcontrollers
- •Operating Voltage: 5V
- •Speed / Frequency: 16MHz
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •⭐ Features Based on ATmega328P-AU microcontroller Compatible with Arduino Nano V3 CH340 USB-to-Serial interface Pre-installed Arduino bootloader Pre-soldered header pins Compact breadboard-friendly design 14 Digital I/O pins (6 PWM) 8 Analog input pins 16MHz crystal oscillator Mini USB interface for programming Automatic power source selection Manual reset button ICSP header for direct programming TX, RX, Power and L status LEDs Supports Arduino IDE
Description
[Arduino Boards] 🔷 Nano V3 CH340 ATmega328P Development Board (Soldered Headers) Compatible with Arduino ATmega328P CH340 USB Interface Compact Design Breadboard Friendly Ready to Use The Nano V3 CH340 Development Board is a compact and powerful microcontroller board based on the ATmega328P-AU microcontroller. Fully compatible with the Arduino Nano platform, it offers the same functionality as the Arduino Uno in a much smaller, breadboard-friendly form factor, making it ideal for embedded systems, robotics, IoT, automation, and DIY electronics projects. This version features the CH340 USB-to-Serial converter, providing a cost-effective and reliable programming interface. The board comes with pre-soldered headers, allowing it to be plugged directly into a breadboard or PCB without additional soldering. Powered by the ATmega328P running at 16MHz, the Nano provides 14 digital I/O pins, 8 analog input pins, 6 PWM outputs, and supports communication protocols including UART, SPI, and I²C. The onboard bootloader allows programming directly through the Mini USB port using the Arduino IDE. The Nano can be powered through the Mini USB connector, an external 6–20V DC supply, or a regulated 5V input, with automatic power source selection for seamless operation. Note: Some computers may require the CH340 USB driver before the board is recognized.
🔹 Key Features
- •⭐ Features Based on ATmega328P-AU microcontroller Compatible with Arduino Nano V3 CH340 USB-to-Serial interface Pre-installed Arduino bootloader Pre-soldered header pins Compact breadboard-friendly design 14 Digital I/O pins (6 PWM) 8 Analog input pins 16MHz crystal oscillator Mini USB interface for programming Automatic power source selection Manual reset button ICSP header for direct programming TX, RX, Power and L status LEDs Supports Arduino IDE
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
Pin 13 (SCK)
Connected directly to onboard yellow LED and SPI hardware clock bus.
pinMode(LED_BUILTIN, OUTPUT);
digitalWrite(LED_BUILTIN, HIGH);🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓⚠️ Note Mini USB cable is not included. Some Windows computers may require the CH340 USB driver before programming the board. Compatible with the Arduino IDE after selecting Arduino Nano and the appropriate processor/bootloader settings. Product appearance, PCB color, and component layout may vary slightly depending on the manufacturing batch.
