SKU: #5617Sensors

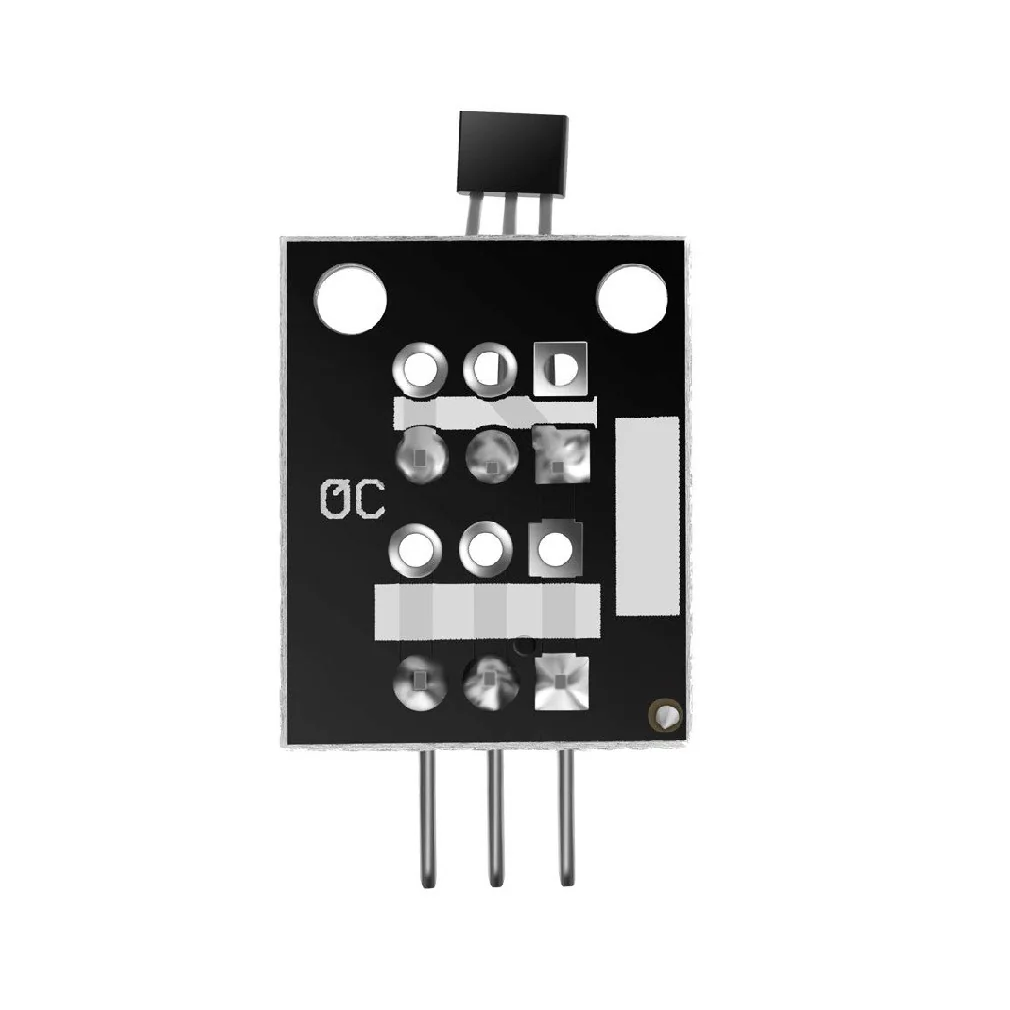

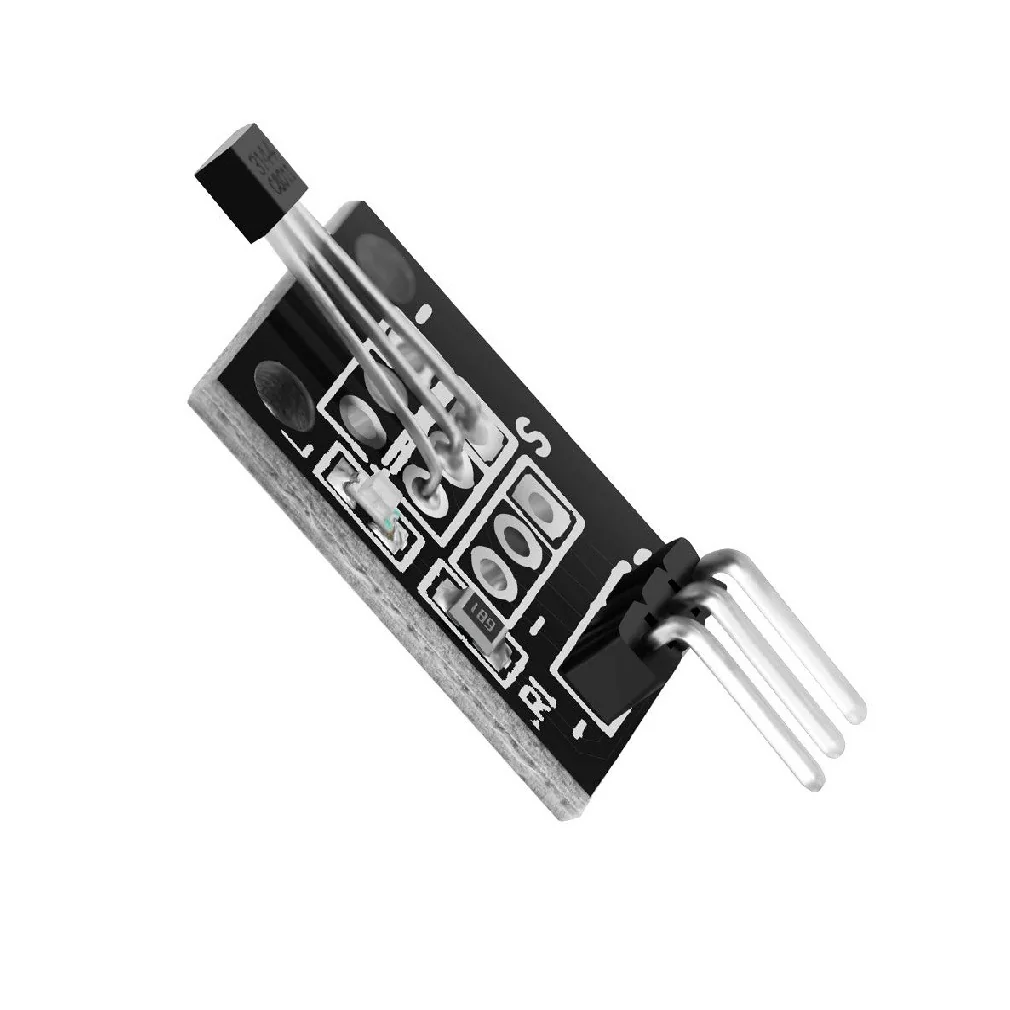

A3144 Hall Effect Sensor Module
—
₹68.00
₹59.00
(Inc. GST)Save 13%- •Product Name: A3144 Hall Effect Sensor Module
- •Product Category: Sensors
- •Operating Voltage: 3.3V - 5V DC
- •Max Current: 25mA
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •[Magnetic Sensor] The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a switch that will turn on/off in the presence of a magnetic field
- •If no magnetic field is present, the signal line of the sensor is HIGH (3.5 V)
Out of stock
1
Check Delivery Availability of Your Pincode:
10 People watching this product right now!
Description
The A3144 Hall Effect Sensor Module is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •[Magnetic Sensor] The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a switch that will turn on/off in the presence of a magnetic field
- •If no magnetic field is present, the signal line of the sensor is HIGH (3.5 V)
- •If a magnetic field is presented to the sensor, the signal line goes LOW, at the same time the LED on the sensor lights up
- •An onboard LED will also indicate the presence of a magnetic field
- •Pin Connection Connect the Powerline (middle) to +5V and ground (-) to GND
- •Connect signal (s) to any digital pin on the Arduino
🔹 Technical Specifications
Product Name:A3144 Hall Effect Sensor Module
Product Category:Sensors
Operating Voltage:3.3V - 5V DC
Max Current:25mA
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%
🔹 Pin Configuration & Wiring
VCC3.3V to 5V DC Power Input
GNDGround Connection (0V)
OUT / DATDigital / Analog Output Signal to Microcontroller
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × A3144 Hall Effect Sensor Module
