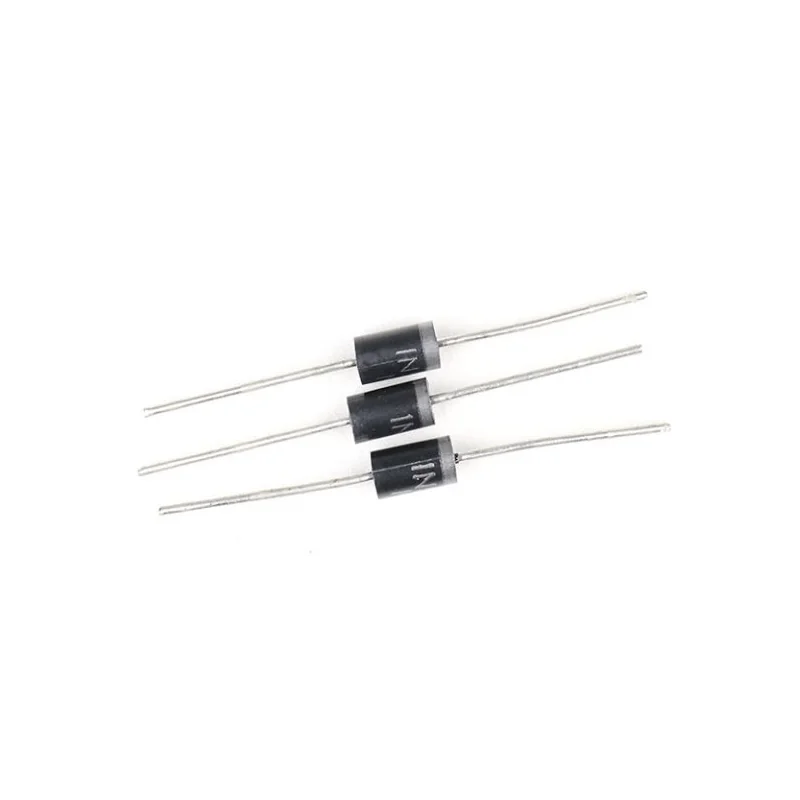

1N4007 General Purpose Rectifier Diode DO-41 (Through Hole) Made RAPID
- •Product Name: 1N4007 General Purpose Rectifier Diode DO-41 (Through Hole) Made RAPID
- •Product Category: Power & Components
- •Operating Voltage: 1000V
- •Max Current: 1.0A
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •It can pass currents of up to 1 A, and have a peak inverse voltage (PIV) rating of 1,000 V
Description
[Diode] 1N 4007 – 1A General Purpose Rectifier Axial 4007 Diode 1N4007 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 1 A, and have a peak inverse voltage (PIV) rating of 1,000 V. Characteristics: Maximum Recurrent Peak Reverse Voltage 1000V Maximum RMS Voltage 700V Maximum DC Blocking Voltage 1000V Average Forward Current: 1.0A Peak Forward Surge Current: 30A Maximum Instantaneous Forward Voltage: 1.0V Maximum DC Reverse Current At Rated DC Blocking Voltage: 5.0µA @ 25°C Typical Junction Capacitance: 15pF Typical Reverse Recovery Time: 2.0us Mounting Type: Through Hole Operating Temperature: -55°C ~ 150°C Useful Resources:
🔹 Key Features
- •It can pass currents of up to 1 A, and have a peak inverse voltage (PIV) rating of 1,000 V
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × 1N4007 General Purpose Rectifier Diode DO-41 (Through Hole) Made RAPID
