12Volt DC RS-555 Motor Multipurpose Brushed Motor for DIY applications PCB Drill
- •Product Name: 12Volt DC RS-555 Motor Multipurpose Brushed Motor for DIY applications PCB Drill
- •Product Category: Power & Components
- •Operating Voltage: 12V
- •Max Current: 0.6A
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •Product Images are shown for illustrative purposes only and may differ from the actual products
- •We suggest you buy a few quantities before going for bulk or contact customer support for current stock images.
Description

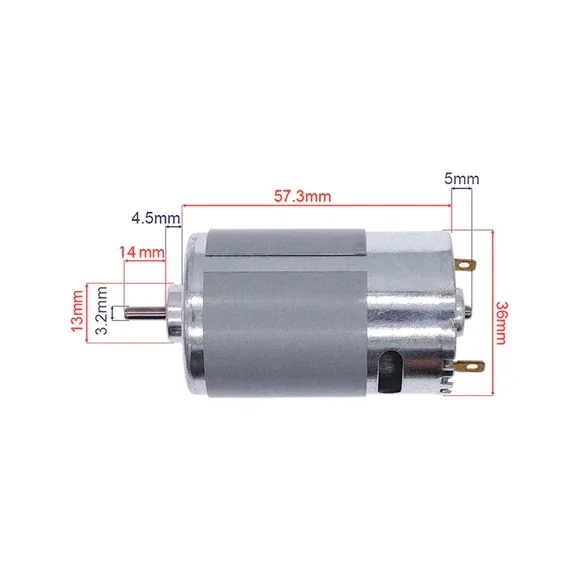

2V Brushed DC Motor RS 555 Operating Voltage: 12V No-load Current: 0.6A Maximum Current: 2A No Load RPM: 5500 – 6500 Motor Shaft Diameter: 3.17mm Mounting Screw Hole Diameter : 3mm Distance between Screw Holes: 25mm Diameter of the Motor: 36mm Length of the Motor (Body): 50mm Length of Shaft: 16mm Note: This is a generic DIY Motor, finishing and size may vary in each stock. Product Images are shown for illustrative purposes only and may differ from the actual products. We suggest you buy a few quantities before going for bulk or contact customer support for current stock images.
🔹 Key Features
- •Product Images are shown for illustrative purposes only and may differ from the actual products
- •We suggest you buy a few quantities before going for bulk or contact customer support for current stock images.
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
⚠️ Direct MCU GPIO Connection Hazard
12Volt DC RS-555 Motor Multipurpose Brushed Motor for DIY applications PCB Drill is an inductive electro-mechanical load drawing up to 200mA – 1A+ surge current. An ESP32 GPIO pin is rated for only 12mA (Arduino Uno is rated for 20mA).
Never wire this motor directly to ESP32 / Arduino pins. Doing so will immediately destroy the microcontroller's output transistors due to inrush current and reverse back-EMF inductive voltage spikes. Always use an intermediate motor driver or transistor switch with a common ground.
Recommended Driver & Interfacing Architectures
Select your interfacing method to inspect the exact wiring diagram & code
Connection Matrix
// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)
#define ENA_PIN 9 // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8 // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7 // Connect to L298N IN2 (Direction / OFF)
void setup() {
pinMode(ENA_PIN, OUTPUT);
pinMode(IN1_PIN, OUTPUT);
pinMode(IN2_PIN, OUTPUT);
// Initialize driver in OFF state
digitalWrite(IN1_PIN, LOW);
digitalWrite(IN2_PIN, LOW);
analogWrite(ENA_PIN, 0);
}
void loop() {
// Soft start: ramp up speed to prevent inrush current spikes
digitalWrite(IN1_PIN, HIGH);
digitalWrite(IN2_PIN, LOW);
for (int speed = 100; speed <= 255; speed += 15) {
analogWrite(ENA_PIN, speed);
delay(50);
}
delay(3000); // Run motor at full speed for 3 seconds
// Coast to stop
digitalWrite(IN1_PIN, LOW);
digitalWrite(IN2_PIN, LOW);
analogWrite(ENA_PIN, 0);
delay(2000); // Pause for 2 seconds
}🔹 Applications
This component is engineered and suitable for:
- •DC motor speed regulation and soft start control
- •Robotics drive train and wheel speed adjustment
- •Cooling fans, exhaust blowers, and thermal management
- •Miniature water pumps and aquarium aeration systems
- •DIY electronics projects, automation circuits, and laboratory benches
