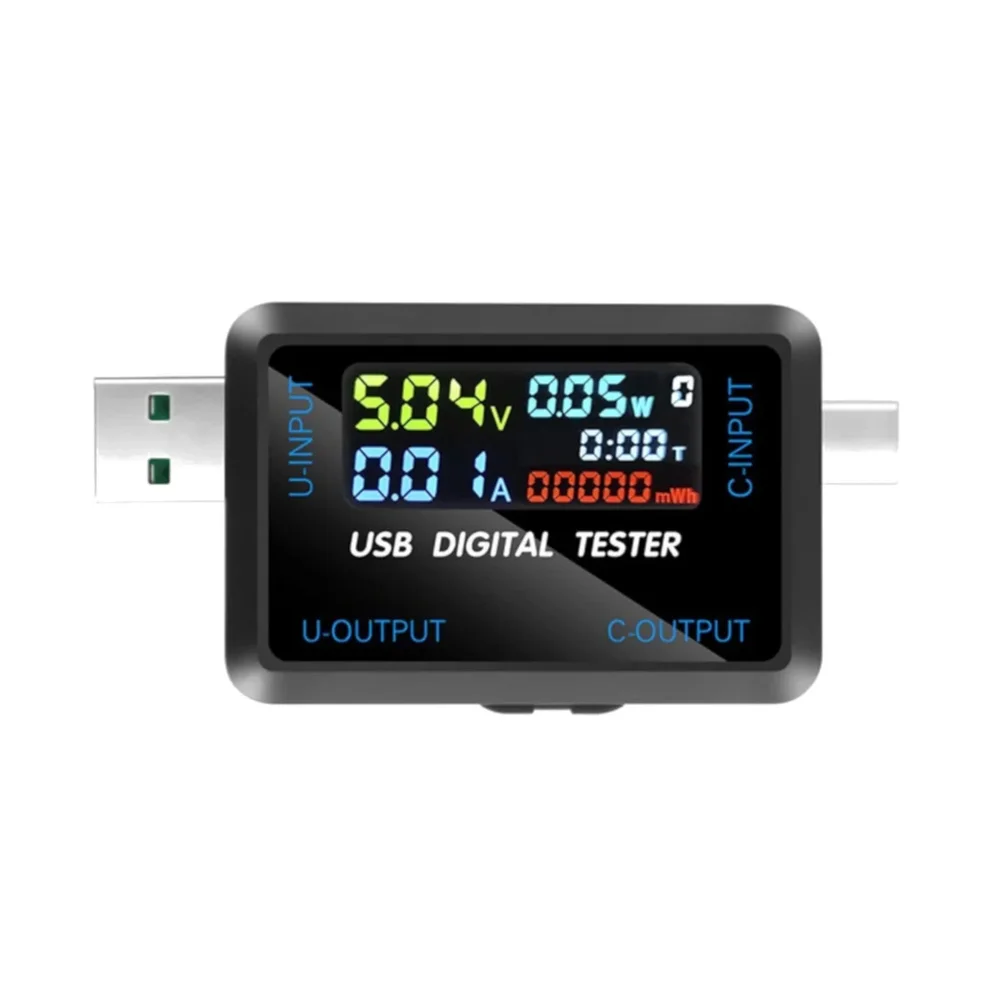

10-in-1 USB & Type-C Digital Tester – IPS Voltmeter, Ammeter, Impedance & Capacity Meter

Description

The 10-in-1 USB & Type-C Digital Tester – IPS Voltmeter, Ammeter, Impedance & Capacity Meter is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •It accurately monitors USB charging performance while providing comprehensive electrical measurements for USB-A and USB Type-C devices
• •It supports testing of fast chargers, mobile phones, tablets, laptops, power banks, USB cables, and various USB-powered electronics
• •With support for measurements up to 150W and 5A, this tester is suitable for high-power USB-C PD chargers while consuming less than 20mA of operating current
• •Built-in control buttons allow users to switch display modes, perform fast-charge diagnostics, and manage measurement functions easily
• •Does it support both USB-A and USB Type-C? Yes

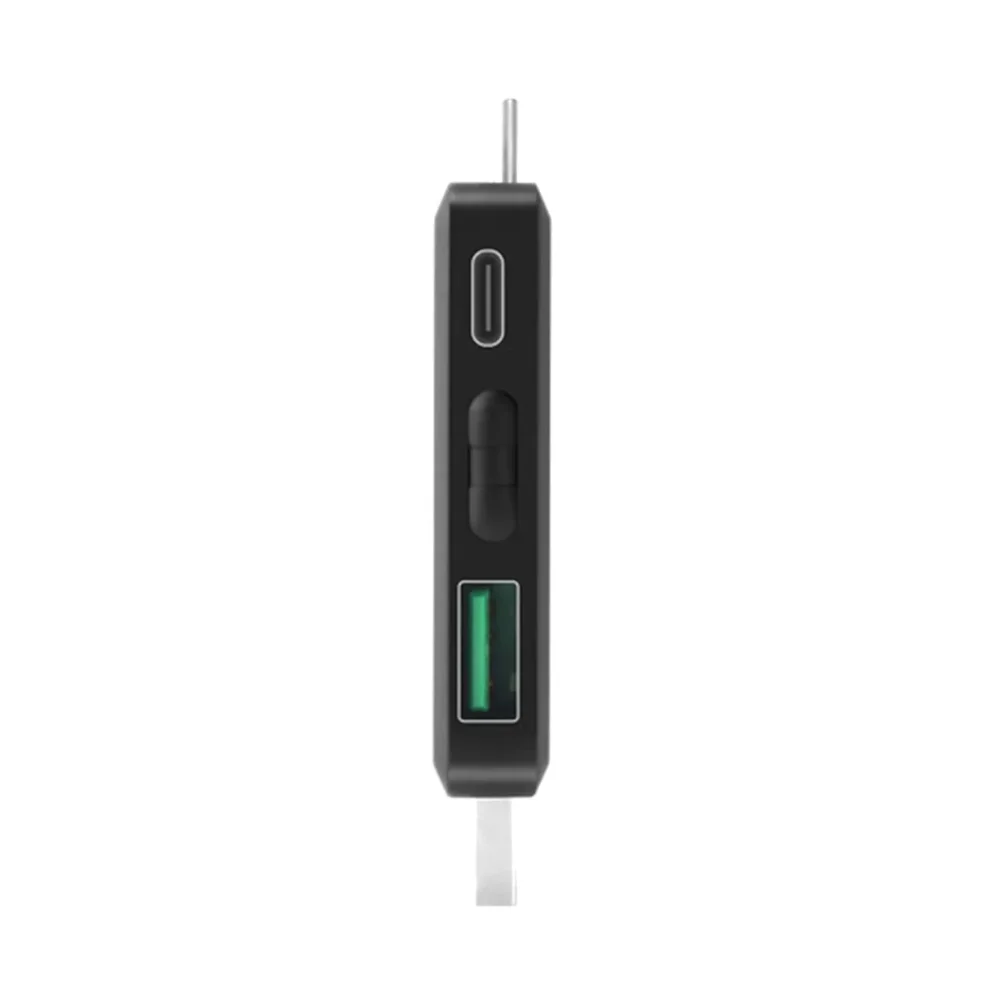

• •It features both USB-A and USB Type-C input and output interfaces

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓� Frequently Asked Questions (FAQ) What does "10-in-1" mean? It measures ten important parameters: Voltage, Current, Power, Capacity, Energy, Impedance, Temperature, Charging Time, D+ Voltage, and D− Voltage. Does it support both USB-A and USB Type-C? Yes. It features both USB-A and USB Type-C input and output interfaces. What is the maximum power it can measure? Up to 150W. What is the maximum current supported? Up to 5A. Can it test USB-C laptop chargers? Yes. It supports high-power USB-C PD chargers up to 150W. Can it measure charging cable quality? Yes. It measures cable impedance from 1Ω to 999.9Ω. Does it display temperature? Yes. It includes an internal temperature sensor with a range of 0°C to 80°C. Does it require batteries? No. It is powered directly from the connected USB source. Can it measure power bank capacity? Yes. It records charging capacity in mAh and mWh. Does it support fast charging protocols? Yes. It can monitor USB D+ and D− voltages, helping identify fast charging protocol handshakes.
