Unsoldered Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C
[Arduino Boards] This Arduino-compatible Nano V3.0 micro-controller is a small, complete, micro-controller board based on the ATmega328 MCU. It has more or less the same functionality as the Arduino Duemilanove, but in a smaller package. It lacks only a DC power jack, and uses the more compact Mini USB (Mini-B) connector instead of a standard USB connector. It is compatible with Arduino programs and the Arduino IDE. This version of the Nano uses the CH340G USB interface controller. It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. Features: CH340G USB bus converter chip replaces FT232RL Operating Voltage（logic level): 5V 8 analog inputs ports: A0 – A7 14 Digital input / output ports: TX, RX, D2 – D13 6 PWM ports: D3, D5, D6, D9, D10, D11 1 pair of TTL level serial transceiver ports: RX / TX Uses Atmel Atmega328P-AU MCU with bootloader installed Support USB download and Power over Mini-B Mini USB connector Recommended input voltage: 7V – 12V DC on pin 30 or 5V on pin 27 Maximum input voltage limits: 6V – 20V Supports ISP download Supplied with connector pins (headers), not soldered to the board for user flexibility Package Includes: 1 X Nano V3.0 16MHz CH340
Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Unsoldered)
[Arduino Boards] The Nano Board R3 with CH340 chip without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint. The Nano Board R3 with CH340 chip without USB Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. This Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano. The Nano Arduino is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano R3). It has more or less the same functionality of the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory. Note:- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers. This board comes with OLD BOOTLOADER buy it accordingly Features : 1 pair of TTL level serial transceiver ports RX / TX Using Atmel Atmega328P-AU MCU There is a bootloader installed in it Support USB download and Power Support for external 5V ~ 12V DC power supply It Supports power supply by 9V battery Support ISP download Automatic reset during program download. Power OK blue LED on the bottom. Green (TX), red (RX) and orange (L) LED. +5V to AREF jumper. Auto-sensing/switching power input. Small mini-B USB for programming and serial monitor. ICSP header for direct program download. Standard 0.1” spacing DIP (breadboard friendly). Manual reset switch. Package Includes : 1 x Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Unsoldered)

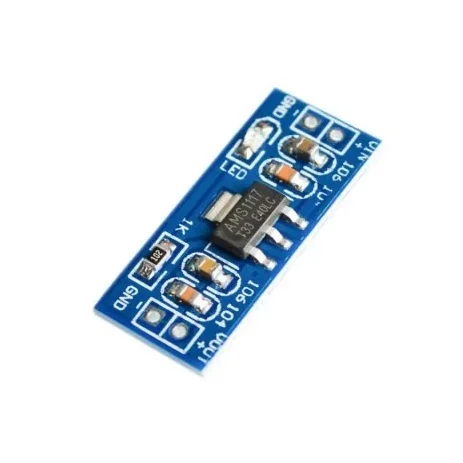

AMS1117 3.3V Power Supply Module
[Step Down Buck Converter] This power supply module is based on the AMS1117 3.3V regulator. It is capable of regulating a wide range of input voltage (4.0 to 12V) down to a fixed 3.3V output at up to 1A (Vin = 4.5V). Standard 0.1″ header pins provide a means of connecting to its input and output terminals. These header pins have also been conveniently placed so that the module can be inserted face down into standard Note: Do not exceed absolute maximum input voltage (12.5V) or output current. Exceeding maximum specifications can result in permanent damage to this module or any connected devices. Features : Onboard AMS1117 chip. Onboard power indicator to indicate power is turned on: Red LED. Output voltage interface, connection to facilitate the experimental. Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments. Small Compact Size, 4Pin Type, Breadboard Friendly. 2P single row pin input and output for easy connection Dual-panel design, the layout is nice Package Includes : 1 x AMS1117 3.3V power supply module (Unsoldered).
