8×8 LED Matrix Module (MAX7219)
MAX7219 dot LED matrix module, MCU controlled display.

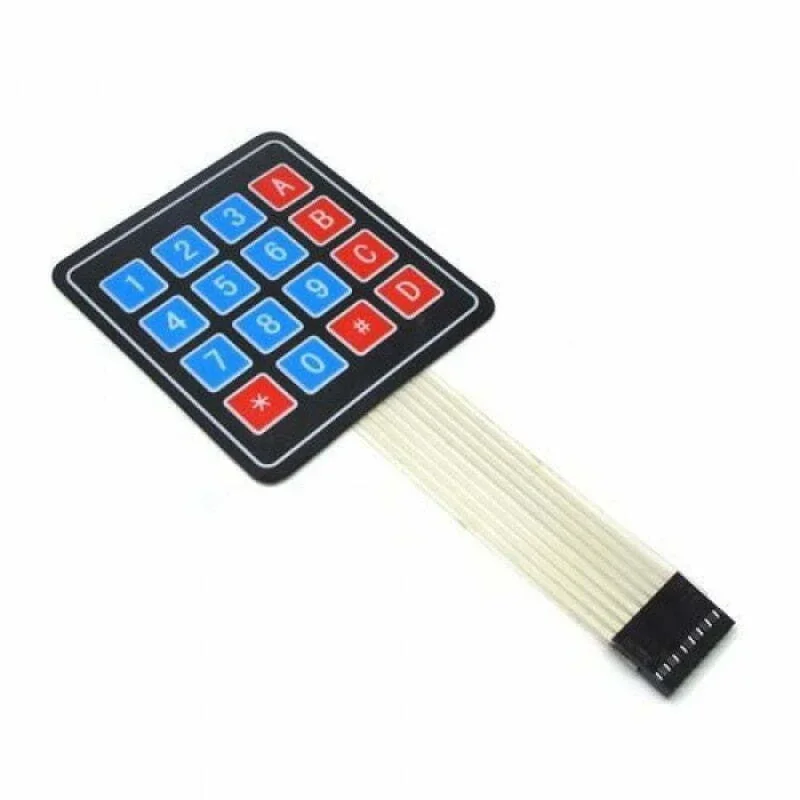

4×4 Matrix 16 Keypad Keyboard Module 16 Button MCU
[Input Module] This DC 12V 4×4 Matrix Keypad Membrane Switch is high-quality soft touch feeling button keypad with 100 million life-stroke lifespans and good resistance to environmental conditions. This DC 12V 4×4 Key Matrix Membrane Switch Keypad is a high-quality product at very low cost for your application needs. This 16-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications. The Keypad 4×4 features a total of 16 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 8-pin berg connector is require for interfacing it with your microcontroller circuits. Features: Ultra-thin design & adhesive backing provides easy integration to any project Excellent price-performance ratio Easy communication with any microcontroller 5 pins 2.54mm pitch connector,4x 4type 16 keys. Sticker can peel off for adhesive mounting. Used widely in industrial and home electronic equipments, instrument, etc. This allows a microcontroller to scan the 8 output pins to see which of the 16 buttons is being pressed. Package Includes: 1 x 4×4 Matrix Membrane Type Keypad -16 Keys Specifications: Voltage(V) DC 35V Operating Current (A) 0.1 Contact Resistance 500 Insulation Resistance (M) 100 Dielectric Strength 250VRms Length (mm) 165 Width (mm) 70 Height (mm) 1 Weight (gm) 7 * Product Images are shown for illustrative purposes only and may differ from actual product.
MPU-6050 3-Axis Accelerometer and Gyro Sensor
[Accelerometer and Gyro Sensor] The MPU-6050 3-Axis Accelerometer and Gyro Sensor module use MPU-6050 which is a little piece of motion processing tech. The MPU6050 datasheet is available in the attachment section to get this visit. There are different types of magnetometer are available the basic differences between MPU6000, MPU6050 and MPU6500 is: MPU6000 MPU6050 MPU6500 1. A sampling rate of 8 kHz. 1. A sampling rate of 8 kHz. 1. A sampling rate of 32 kHz. 2. Supports SPI and I2C interface. But I2C is too slow to handle 8 kHz gyro update. 2. Supports I2C interface communication protocol. 2. Supports both I2C and SPI interface. 3. Vibration Sensitivity is better than MPU6500. 3. Vibration Sensitivity is better than MPU6500 but the speed of operation is less than MPU6000. 3. It is more susceptible to vibrations, so the need for some vibration isolation methods. It is faster than both MPU. The MPU6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. To get more insights about specifications visit the MPU6050 datasheet. If you want to Explore more about Accelerometer Then click on, Accelerometer and Gyroscope Features : Chip built-in 16bit AD converter, 16-bit data output. I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format. Selectable Solder Jumpers on CLK, FSYNC, and AD0. Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection. Embedded algorithms for run-time bias and compass calibration. No user intervention is required. Digital-output temperature sensor. Package Includes: 1 x MPU-6050 Gyro Sensor 2 + Accelerometer. 1 x 1*8 Burg connector Pins(Right angle). 1x 1*8 Burg connector Pins(Straight).

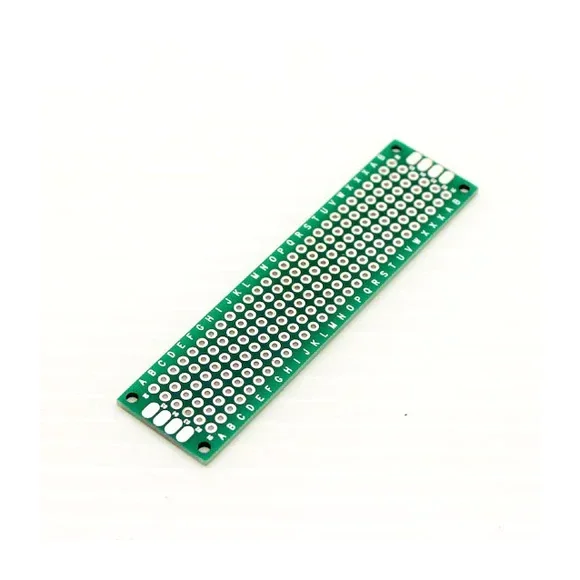

2x8cm Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
[Breadboard and Zero PCBs] Dual-Side Prototype PCB Panel Universal Matrix Circuit Board for DIY Soldering 2 x 8 cm 2 x 8 cm Universal PCB Prototype Board Double-Sided High-quality double-sided universal prototyping board with standard 0.1″ spacing through holes. High-quality 2 x 8 cm FR4 material, Double-sided, HASL, NC CNC drilled Specifications:- Dimension: 2 x 8 CM Base Material FR4 Copper Thickness 1-4 OZ Board Thickness 1.6 Min. Hole Size 0.3mm Min. Line Width 6mil Min. Line Spacing 6mil Surface Finishing HASL

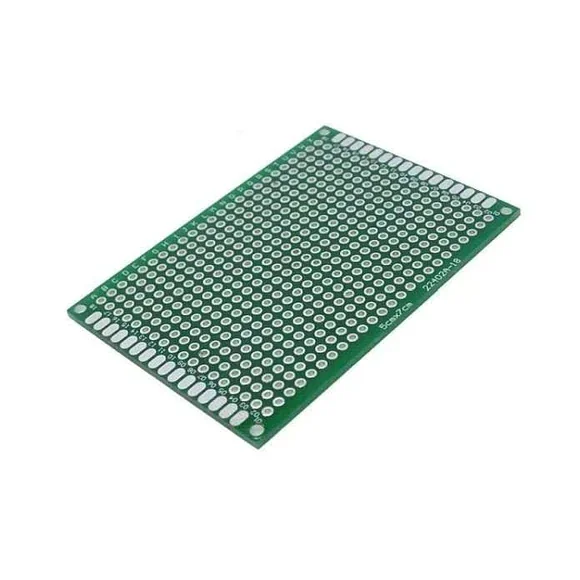

5x7cm Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
[Breadboard and Zero PCBs] Dual-Side Prototype PCB Panel Universal Matrix Circuit Board for DIY Soldering 5 x 7 cm 5X7 cm Universal PCB Prototype Board Double-Sided High-quality double-sided universal prototyping board with standard 0.1″ spacing through holes. High-quality 5 x 7 cm FR4 material, Double-sided, HASL, NC CNC drilled Specifications:- Dimension: 5 X 7 CM Base Material FR4 Copper Thickness 1-4 OZ Board Thickness 1.6 Min. Hole Size 0.3mm Min. Line Width 6mil Min. Line Spacing 6mil Surface Finishing HASL

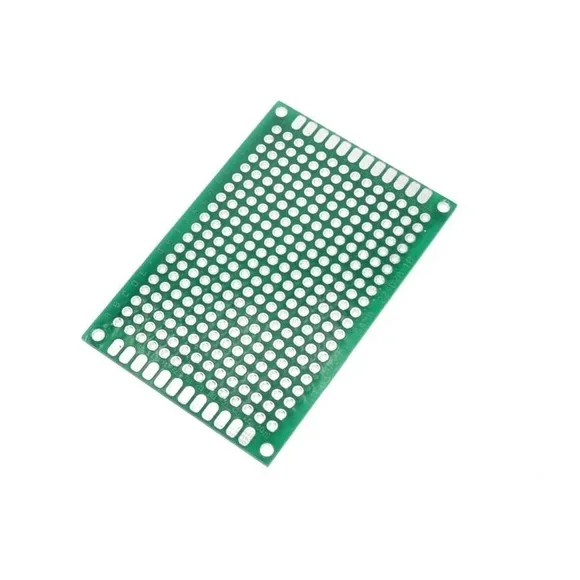

4x6cm Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
[Breadboard and Zero PCBs] Dual-Side Prototype PCB Panel Universal Matrix Circuit Board for DIY Soldering 4 X 6 cm 4X6 cm Universal PCB Prototype Board Double-Sided High-quality double-sided universal prototyping board with standard 0.1″ spacing through holes. High-quality 4 x 6cm FR4 material, Double-sided, HASL, NC CNC drilled Specifications:- Dimension: 4 X 6 CM Base Material FR4 Copper Thickness 1-4 OZ Board Thickness 1.6 Min. Hole Size 0.3mm Min. Line Width 6mil Min. Line Spacing 6mil Surface Finishing HASL

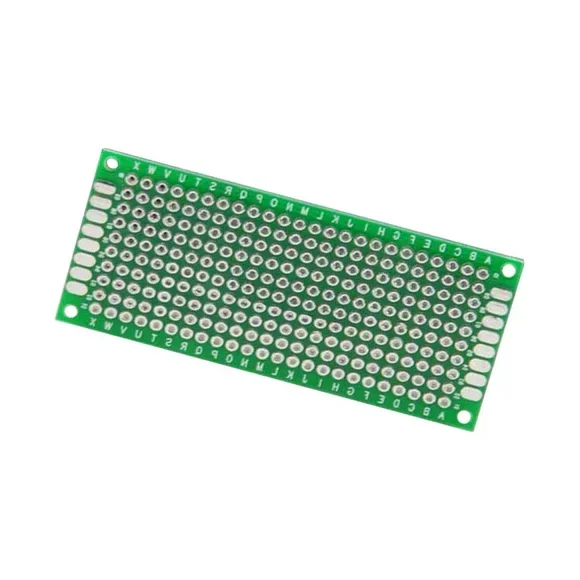

3x7cm Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
[Breadboard and Zero PCBs] Dual-Side Proto typing PCB Panel Universal Matrix Circuit Board for DIY Soldering 3 X 7 cm 3×7 cm Universal PCB Prototype Board Double-Sided High-quality double-sided universal prototyping board with standard 0.1″ spacing through holes. High-quality 3 x 7cm FR4 material, Double-sided, HASL, NC CNC drilled Specifications:- Dimension: 3 x 7 CM Base Material FR4 Copper Thickness 1-4 OZ Board Thickness 1.6 Min. Hole Size 0.3mm Min. Line Width 6mil Min. Line Spacing 6mil Surface Finishing HASL
Out of stockMAX7219 Dot Matrix 4 in 1 Display Module
[LED/LCD Display Module] Features – Driver Chip: MAX7219 Input Voltage: 3.7 to 5.3 V Input Current: 320 mA Display Dimensions: 32x32x6 (LxWxH) mm PCD Dimensions: 128×32 (LxW) mm — MAX7219 4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED. Thereon including a B-type BCD encoder chip, multi-channel scanning loop segment word driver, but also a static RAM 8 x 8 for storing each data. Only one external register is used to set the segment current of each LED. Specifications :- Dimensions: 128 x 32 x 1.5cm(LxWxH)(All 4 in 1) Dimension 32 x 32 x 1.5 cm (LxWxH) (Single Module) A single module can drive an 8×8 dot matrix common cathode Operating voltage: 5V Weight: 55 gm Fixing screws with 64 holes with a diameter 3mm Module with input and output interfaces Support for cascading multiple modules Wiring Instructions:- The left side of the module to the input port, the right to an output port. When the control of a single module, simply input port connected to CPU When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on.. Pin Description:- VCC 5V GND GND DIN P2.2 CS P2.1 CLK P2.0

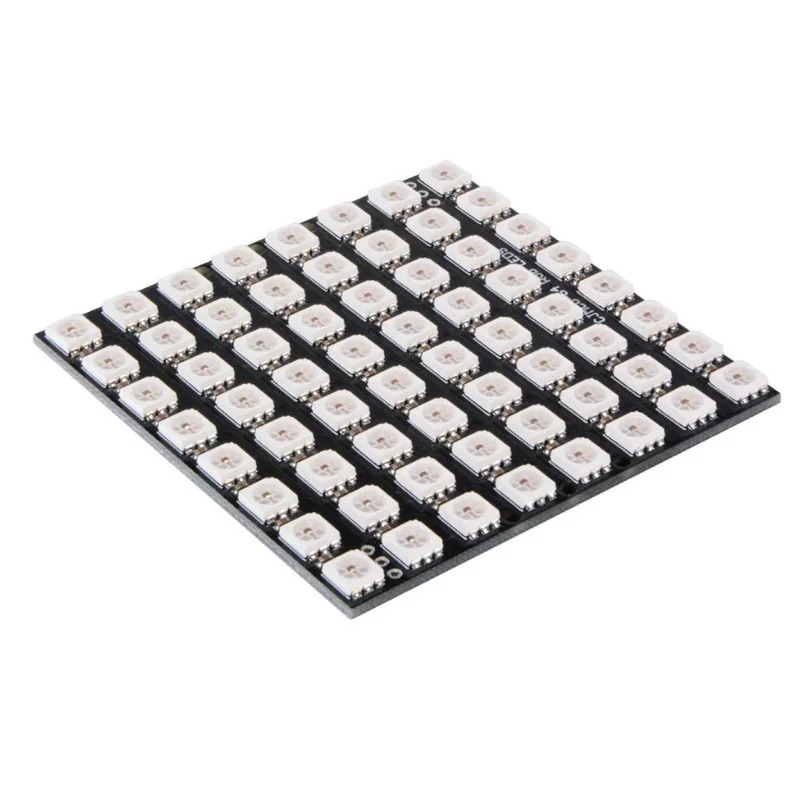

CJMCU 64 Bit 8×8 RGB WS2812 LED Driver Development Board
[LED/LCD Display Module] Product Description The CJMCU 64-Bit 8×8 RGB WS2812 LED Driver Development Board is a compact, high-performance LED matrix designed for makers, hobbyists, and developers. Featuring 64 individually addressable RGB LEDs (WS2812B) arranged in an 8×8 grid, this module lets you create stunning light patterns, animations, and color effects with ease. Each LED integrates a built-in driver IC, allowing precise control over brightness and color through a single data line. Compatible with popular microcontrollers such as Arduino, ESP32, and Raspberry Pi, this board is perfect for DIY projects, display systems, lighting effects, and visual art installations. Its 5V input and chainable design make it easy to connect multiple boards for larger displays. Compact, efficient, and versatile — the CJMCU 8×8 WS2812 RGB board brings your lighting ideas to life. Features 💡 64 Individually Addressable LEDs: Control each LED independently to create custom animations and effects. 🔌 Easy to Interface: Works seamlessly with Arduino, ESP8266, ESP32, Raspberry Pi, and other controllers. 🌈 Vibrant RGB Colors: Delivers full 24-bit color with smooth transitions and vivid brightness. 🔄 Chainable Design: Connect multiple boards for extended LED matrix displays. ⚙️ Built-in Driver IC (WS2812B): Simplifies wiring and control using a single data pin. 🧩 Compact 8×8 Grid: Ideal for DIY projects, wearable tech, and artistic LED installations. 🔋 5V Operating Voltage: Compatible with USB power and regulated 5V supplies. Specifications Specification Details Model CJMCU 64-Bit 8×8 RGB LED Board LED Type WS2812B LED Count 64 LEDs (8×8 grid) Operating Voltage 5V DC Communication Single-wire serial interface Color RGB (24-bit) Compatibility Arduino, ESP32, Raspberry Pi, and others Dimensions Compact 8×8 layout Mounting PCB with solder pads for chaining Package Includes : 1 x CJMCU 64 Bit 8×8 RGB LED WS2812 Driver Development Board.

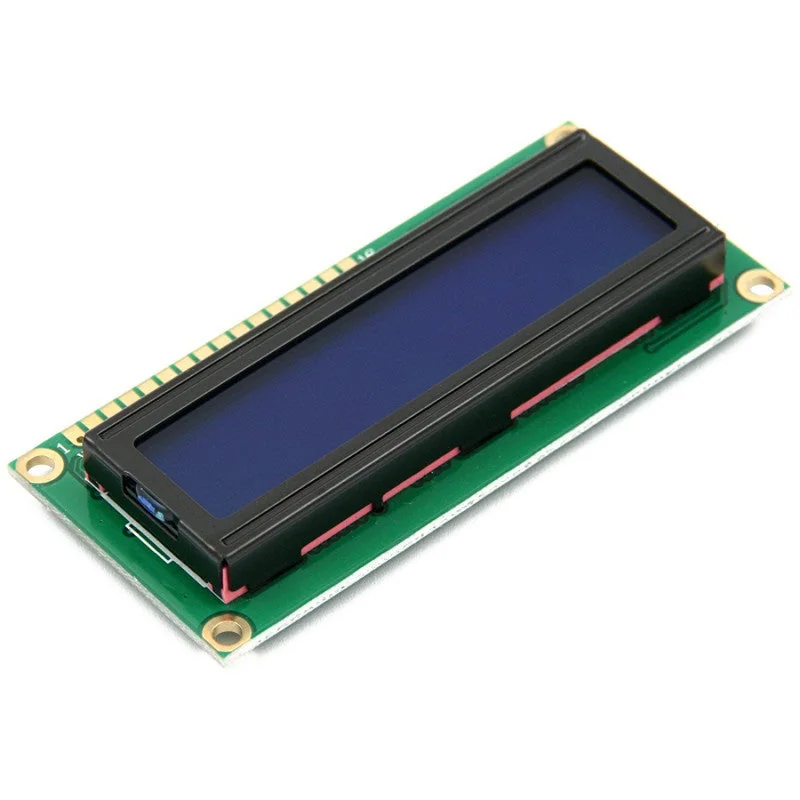

Out of stock16×2 (1602) Character Blue Backlight LCD Display
[LED/LCD Display Module] This is a basic 16 character by 2 line Alphanumeric display. White text on Blue background. Utilizes the extremely common HD44780 parallel interface chipset . Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode. Features: 16 Characters x 2 Lines Blue Backlight 5×7 Dot Matrix Character + Cursor HD44780 Equivalent LCD Controller/driver Built-In 4-bit or 8-bit MPU Interface Standard Type Works with almost any Microcontroller * Product Images are shown for illustrative purposes only and may differ from actual product.
