All products · 10 of 1440
Electronics, sensors, robotics kits, PC components, peripherals — everything Unik Systems carries, in one place.
Only 1 leftPlay Mex
MCU: ESP8266/ESP32. Sensors: soil moisture (capacitive preferred), temp/humidity (DHT), light sensor. Actuation: relay/pump/solenoid valve demo. Dashboard: MQTT/HTTP. Power: 5V input + relay isolation.
Capacitive Touch Module MPR121
MPR121 capacitive touch module, multi-channel.
Only 2 leftTouch Sensor (4 Channel)
Capacitive touch sensor module, 4 channels.

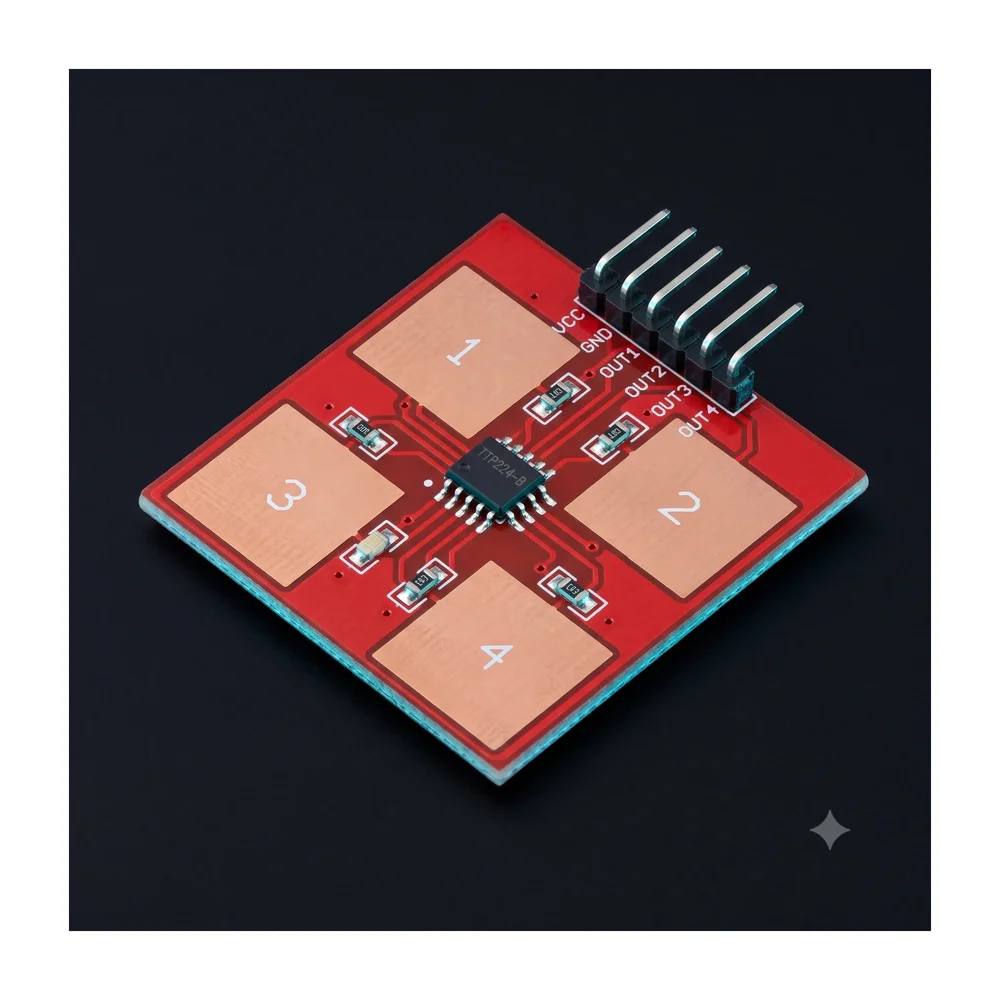

Touch Sensor TTP224 (4 channel)
TTP224 capacitive touch controller: 4 touch inputs → 4 digital outputs. 2.4–5.5V. Sensitivity adjustable.
DHT11 Digital Temperature and Humidity Sensor Module 3.3V-5V for Arduino & Raspberry Pi
[Temperature Sensor] The DHT11 Digital Temperature and Humidity Sensor Module is a reliable and cost-effective sensor designed to measure ambient temperature and relative humidity. It combines a capacitive humidity sensing element and a thermistor with a built-in digital signal processing unit, providing calibrated digital output directly to microcontrollers. In addition, the DHT11 offers stable performance and excellent long-term reliability, making it suitable for environmental monitoring and automation applications. As a result, it is widely used in weather stations, smart home systems, greenhouse monitoring, HVAC systems, and educational electronics projects. Because the module includes the required pull-up resistor, interfacing with microcontrollers becomes simple and straightforward. Furthermore, only three connections are required: VCC, GND, and Data Output. The sensor operates from a wide voltage range of 3.3V to 5.5V DC, ensuring compatibility with Arduino, Raspberry Pi, ESP32, STM32, NodeMCU, and other development boards. Moreover, readily available libraries and example codes allow quick integration into projects. The DHT11 utilizes advanced digital signal acquisition technology and dedicated temperature-humidity sensing techniques to ensure accurate and dependable measurements. 🔹 Key Features Measures temperature and humidity simultaneously Calibrated digital signal output Low power consumption High reliability and long-term stability Capacitive humidity sensing technology Built-in pull-up resistor on module Compatible with Arduino, ESP32, Raspberry Pi, and STM32 Simple 3-wire interface Easy integration into IoT projects Compact and lightweight design 🔹 Technical Specifications Sensor Model: DHT11 Operating Voltage: 3.3V – 5.5V DC Output Type: Digital Serial Output Humidity Measurement Range: 20%RH – 90%RH Humidity Accuracy: ±5%RH Humidity Resolution: 1%RH Temperature Measurement Range: 0°C – 50°C Temperature Accuracy: ±2°C Temperature Resolution: 1°C Sampling Rate: 1Hz (One Reading Per Second) Long-Term Stability: < ±1%RH/Year Interchangeability: Fully Interchangeable Sensor Technology: Capacitive Humidity Sensor + Thermistor 🔹 Pin Configuration Pin 1 (VCC): 3.3V – 5.5V DC Power Supply Pin 2 (DATA): Digital Serial Data Output Pin 3 (GND): Ground 🔹 Applications This sensor module is suitable for: Arduino projects Raspberry Pi projects ESP32 projects IoT systems Weather monitoring stations Smart home automation Greenhouse monitoring HVAC control systems Environmental monitoring Educational electronics projects 🔹 Package Includes 1 × DHT11 Digital Temperature and Humidity Sensor Module

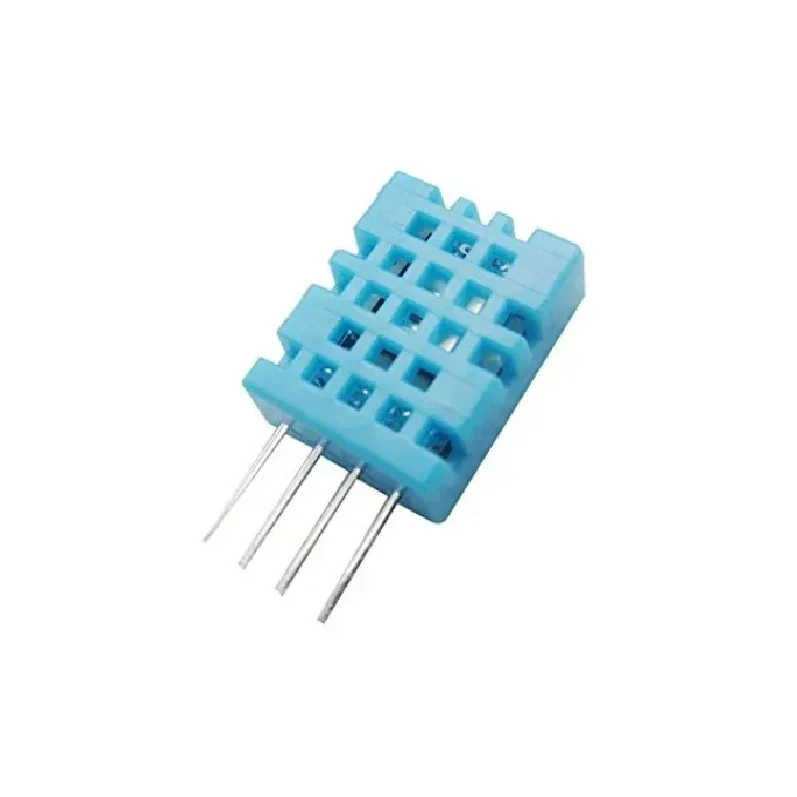

DHT-11 Digital Temperature And Humidity Sensor- Normal Quality
[Temperature Sensor] he DHT-11 Digital Temperature And Humidity Sensor is a basic, ultra low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed). Features : Low power consumption. Relative humidity and temperature measurement All calibration, digital output Excellent long-term stability No additional components Long distance signal transmission Ultra-low power 4-pin package Completely interchangeable

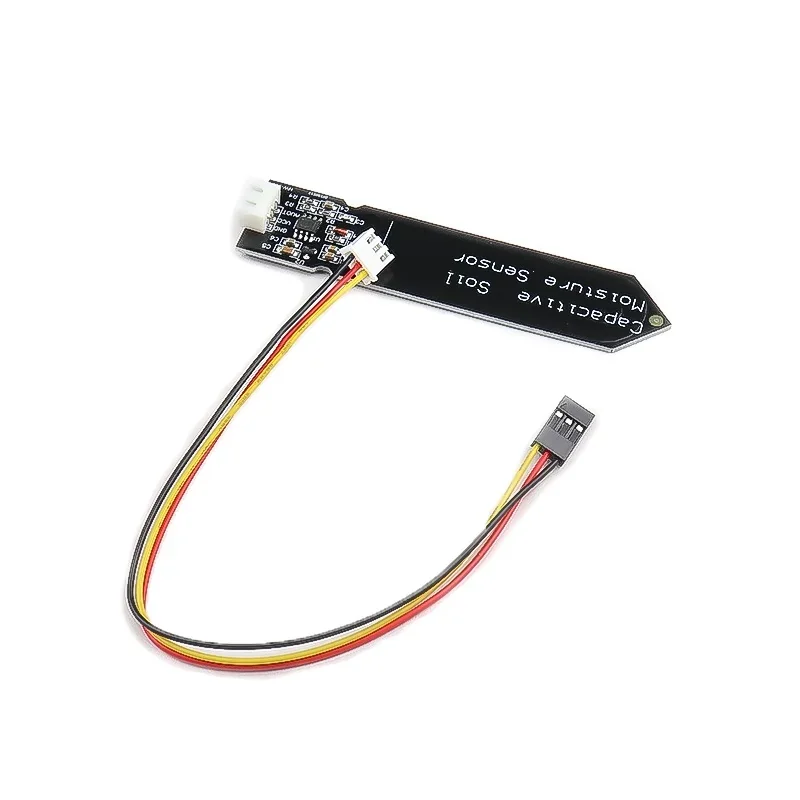

Out of stockCapacitive Soil Moisture Sensor
[Moisture Sensor] This Capacitive soil moisture sensor measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data! This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter. This soil moisture sensor is compatible with our 3-pin “Gravity” interface, which we can connect to the Gravity I/O expansion shield. Applications: Garden plants Moisture detection Intelligent agriculture Note: This module is available in different versions. The V1.2 version sensor can work with only 5v while the V2.0 version sensor works with both 3.3V and 5V Circuit Diagram of Moisture Sensor Compatible with Arduino and Display: Software Arduino IDE V1.6.5 Click to Download Arduino IDE Features: Supports 3-Pin Gravity Sensor interface Analog output Package Includes: 1 x Capacitive Soil Moisture Sensor
ESP WROOM32 MCU Development Module – 38 Pin
[ESP Modules] This is ESP WROOM 32 MCU Development Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. The WROOM32 based modules with integrated flash. These modules are well suited for Wi-Fi and Bluetooth/Bluetooth LE-based connectivity applications and provide a solid dual-core performance and the clock frequency is adjustable from 80 MHz to 240 MHz. The user may also use power saving mode for the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C. Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA. In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range. ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller. The ESP32 is integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules, and the entire solution occupies the least area of PCB. 2.4 GHz Wi-Fi plus Bluetooth dual-mode chip, with TSMC Ultra-low power consumption 40nm technology, power dissipation performance, and RF performance is the best, safe and reliable, easy to extend to a variety of applications. Features: High performance-price ratio Small volume, easily embedded to other products Strong function with support LWIP protocol, Freertos Supporting three modes: AP, STA, and AP+STA Supporting Lua program, easily to develope Package Includes: 1 x ESP32 38Pin Development Board

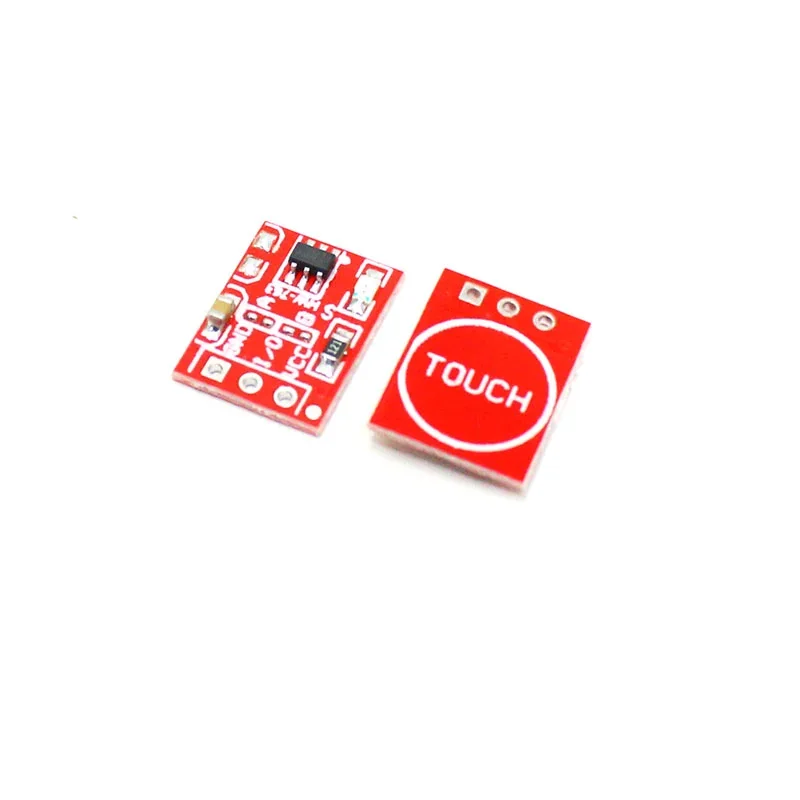

TTP223 Touch Key Module
[Sensors, Touch Sensors] The TTP223 Touch Key Module is based on a touch-sensing IC (TTP223) capacitive touch switch module. A capacitive touch sensor module based on the dedicated TTP223 touch sensor IC. The module provides a single integrated touch sensing area of 11 x 10.5mm with a sensor range of ~5mm. An onboard LED will give a visual indication of when the sensor is triggered. When triggered the output of the module will switch from its idle low state to high (default operation). Solder jumpers allow for reconfiguring its mode of operation to be either active low or toggle output. TTP223 Capacitive Touch Sensor Module. The TTP223 is a touchpad detector IC replicating a single tactile button. The TTP223 is a touchpad detector IC replicating a single tactile button. This touch detection IC is designed for replacing traditional direct button key with diverse pad size. Trigger-setting mode: (1- > Short ; 0- > No Short) AB=00: No-lock High TTL level output; AB=01: Self-lock High TTL level output; AB=10: No-lock Low TTL level output; AB=11: Self-lock Low TTL level output; Connection Diagram: Features : Supports momentary or latching/toggle modes. Supports Active High or Active Low output signal modes. Dimensions : 15mm x 11mm. Input Voltage : 2 Volt – 5.5 Volts DC. The response time max ~ 60mS in fast mode, ~220mS at low power mode @VDD=3V. Sensitivity can adjust by the capacitance(0~50pF). Have two kinds of sampling length by pad option(SLRFTB pin). Stable touching detection of the human body for replacing traditional direct switch key. Provides Fast mode and Low Power mode selection by pad option(LPMB pin). Provides direct mode、toggle mode by pad option(TOG pin). Open drain mode by bonding option, OPDO pin is open drain output, Q pin is CMOS output. All output modes can be selected active high or active low by pad option(AHLB pin). Have the maximum on time 100sec by pad option(MOTB pin). Have external power-on reset pin(RST pin). After power-on have about 0.5sec stable-time, during the time do not touch the keypad, and the function is disabled. Auto calibration. Re-calibration period is about 4.0 sec when the key has not be touched. Package Includes : 1 x TTP223 TOUCH KEY MODULE

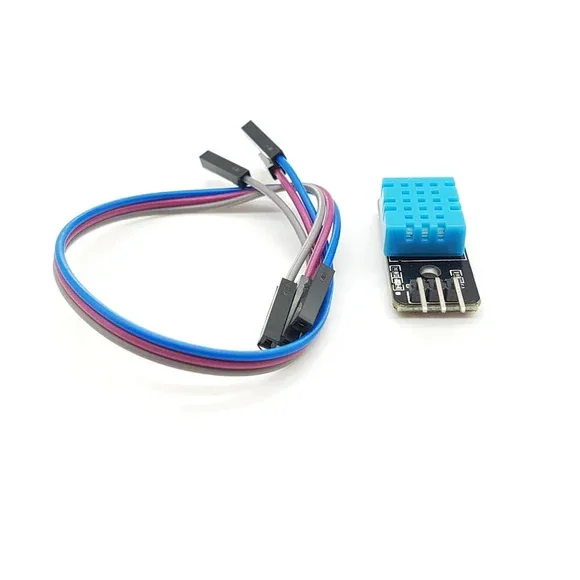

Out of stockDHT11 Temperature And Humidity Sensor Module – for Arduino Raspberry STM (DHT11 with PCB)
[Temperature Sensor] Description DHT11 is a Humidity and Temperature Sensor, which generates calibrated digital output. DHT11 can be interface with any microcontroller like Arduino, Raspberry Pi, etc., and get instantaneous results. DHT11 is a low-cost humidity and temperature sensor which provides high reliability and long-term stability. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and outputs a digital signal on the data pin (no analog input pins needed). Its very simple to use, and libraries and sample codes are available for Arduino and Raspberry Pi. This module makes it easy to connect the DHT11 sensor to an Arduino or microcontroller as includes the pull-up resistor required to use the sensor. Only three connections are required to be made to use the sensor – Vcc, Gnd, and Output. It has high reliability and excellent long-term stability, thanks to the exclusive digital signal acquisition technique and temperature & humidity sensing technology. Specifications:- Power Supply： 3.3~5.5V DC Output： 4 pin single row Measurement Range： Humidity 20-90%RH， Temperature 0~50℃ Accuracy： Humidity +-5%RH， Temperature +-2℃ Resolution： Humidity 1%RH， Temperature 1℃ Interchangeability： Fully Interchangeable Long-Term Stability： <±1%RH/year Pin Description:- Pin 1: Power +Ve (3.3VDC to 5.5VDC Max wrt. GND) Pin 2: Serial Data Output Pin 3: Power Ground or Power –Ve * Product Images are shown for illustrative purposes only and may differ from actual product.
