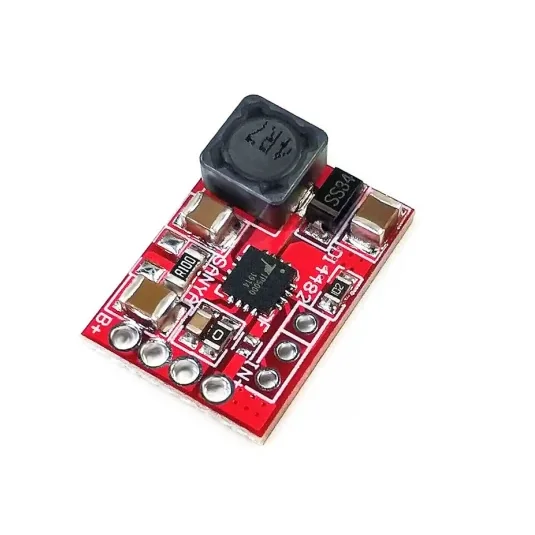

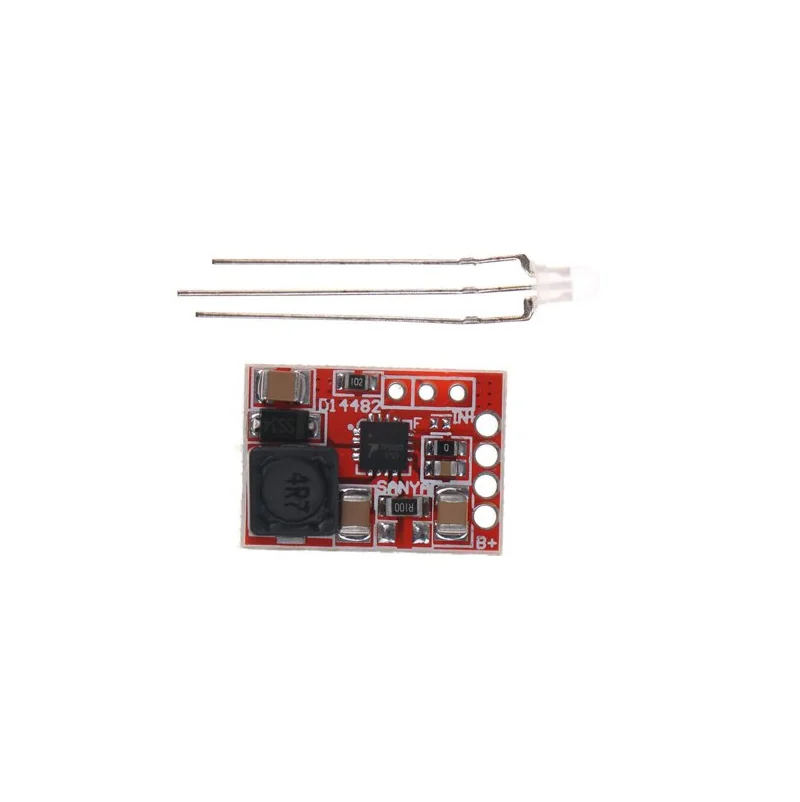

TP5000 3.6V/4.2V 1A LithiumBattery Charger Module

Description

The TP5000 3.6V/4.2V 1A LithiumBattery Charger Module is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •[Lithium Battery Protection Board] This is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC
• •This module can charge a lithium battery with an current of up to 1A
• •This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection
• •The charging module comes with a dual colour led ,which is used to denote the charging and full status of the battery
• •Applications: Portable Equipment MP3,Mp4 Players Electric Tools LED Drivers
• •Features: Single Battery Charger Module Programable Charge Curren Form 0.1A to 2A Programable Precharge Current Form 10% to 100% LED

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × TP5000 3.6V/4.2V 1A LithiumBattery Charger Module
