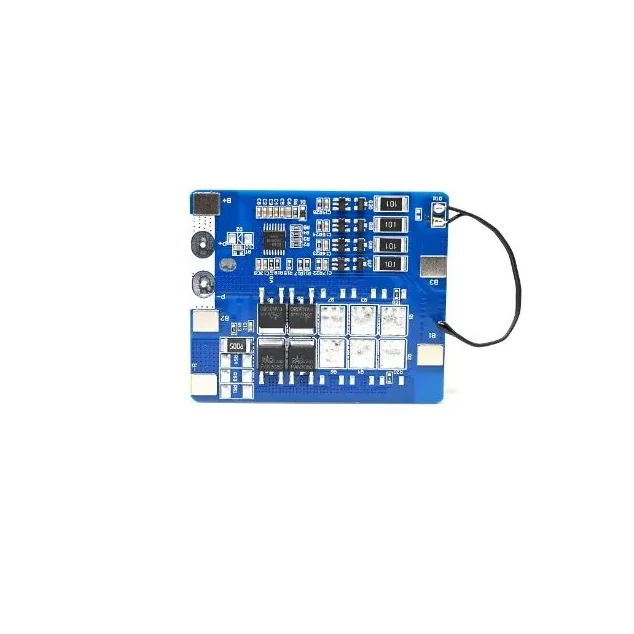

TDT LiFePO4 LFP 4S 12.8V 10A Battery Management System
- •Product Name: TDT LiFePO4 LFP 4S 12.8V 10A Battery Management System
- •Product Category: Power & Components
- •Operating Voltage: 12.8V
- •Max Current: 10A
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •It ensures safe charging and discharging by providing multiple protection functions, improving battery life and safety
- •🔹 Package Includes 1 × TDT 4S 12.8V 10A LiFePO4 BMS Board
Description
[Lithium Battery Protection Board] The TDT LiFePO4 LFP 4S 12.8V 10A Battery Management System (BMS) is designed to protect and manage 4-cell LiFePO4 battery packs (12.8V nominal). It ensures safe charging and discharging by providing multiple protection functions, improving battery life and safety. This BMS board is ideal for solar energy storage, backup power systems, DIY battery packs, electric vehicles, power banks, and inverter systems using LiFePO4 cells. The board continuously monitors each cell voltage and controls charge/discharge current to prevent damage caused by overcharging, deep discharge, overcurrent, or short circuits.
🔹 Key Features
- •It ensures safe charging and discharging by providing multiple protection functions, improving battery life and safety
- •🔹 Package Includes 1 × TDT 4S 12.8V 10A LiFePO4 BMS Board
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •� Wiring Instructions (Basic) B- → Battery Pack Negative B1 → Cell 1 Positive B2 → Cell 2 Positive B3 → Cell 3 Positive B4 → Cell 4 Positive P- → Output Negative P+ → Output Positive (Battery Positive) ⚠ Always connect balance wires in correct sequence to avoid damage.
🔹 Package Includes
- ✓1 × TDT LiFePO4 LFP 4S 12.8V 10A Battery Management System
