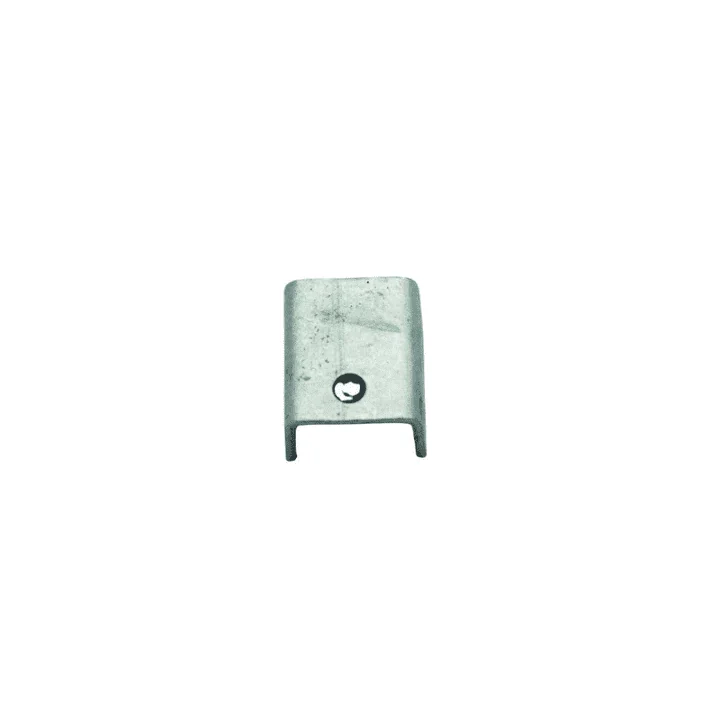

Small Aluminium Heat Sink for TO-220 Package
- •�️ Installation Place the heatsink against the heat: producing surface of the compatible TO-220 component and secure it through the mounting hole using an appropriate screw and nut. For improved thermal transfer, a suitable thermal interface material or thermal compound can be used between the component and heatsink where appropriate. Ensure that the heatsink does not accidentally create an electrical short between component terminals or other PCB traces.
- •It helps transfer heat away from the electronic component and dissipate it into the surrounding air, helping maintain a safer operating temperature
- •Its compact size makes it particularly useful where PCB space is limited
- •The heatsink is made from aluminium and has a 1mm material thickness, with overall dimensions of 15 × 9 × 19mm
- •For improved thermal transfer, a suitable thermal interface material or thermal compound can be used between the component and heatsink where appropriate
Description
[Aluminium Heat Sink] Small Aluminium Heat Sink for TO-220 Package The Small Aluminium Heat Sink for TO-220 Package is a compact passive cooling component designed for TO-220 package transistors, voltage regulators, MOSFETs, and other low-power semiconductor devices. It helps transfer heat away from the electronic component and dissipate it into the surrounding air, helping maintain a safer operating temperature. A matching product listing confirms that this heatsink is intended for low-power dissipation and includes a mounting hole for securing a transistor or voltage regulator. Its compact size makes it particularly useful where PCB space is limited. The heatsink is made from aluminium and has a 1mm material thickness, with overall dimensions of 15 × 9 × 19mm.
🔹 Key Features
- •It helps transfer heat away from the electronic component and dissipate it into the surrounding air, helping maintain a safer operating temperature
- •Its compact size makes it particularly useful where PCB space is limited
- •The heatsink is made from aluminium and has a 1mm material thickness, with overall dimensions of 15 × 9 × 19mm
- •For improved thermal transfer, a suitable thermal interface material or thermal compound can be used between the component and heatsink where appropriate
- •Ensure that the heatsink does not accidentally create an electrical short between component terminals or other PCB traces
- •📦 Package Includes 1 × Small Aluminium Heat Sink for TO-220 Package ⚠️ Precautions Use only with components that are mechanically compatible with the heatsink
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × Small Aluminium Heat Sink for TO-220 Package
