RS-775 DC 12V-24V High Speed Metal Large Torque 5000-10000 RPM DC Motor With Ball Bearing

Description

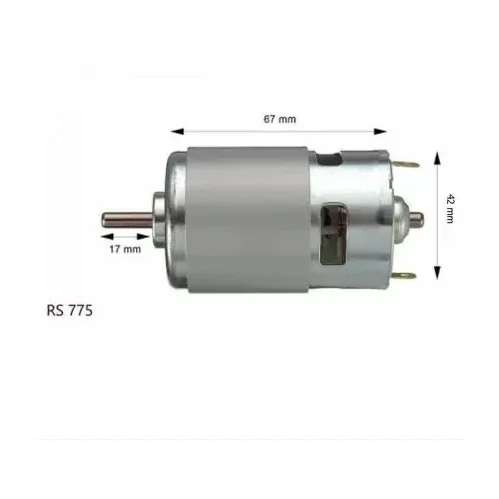

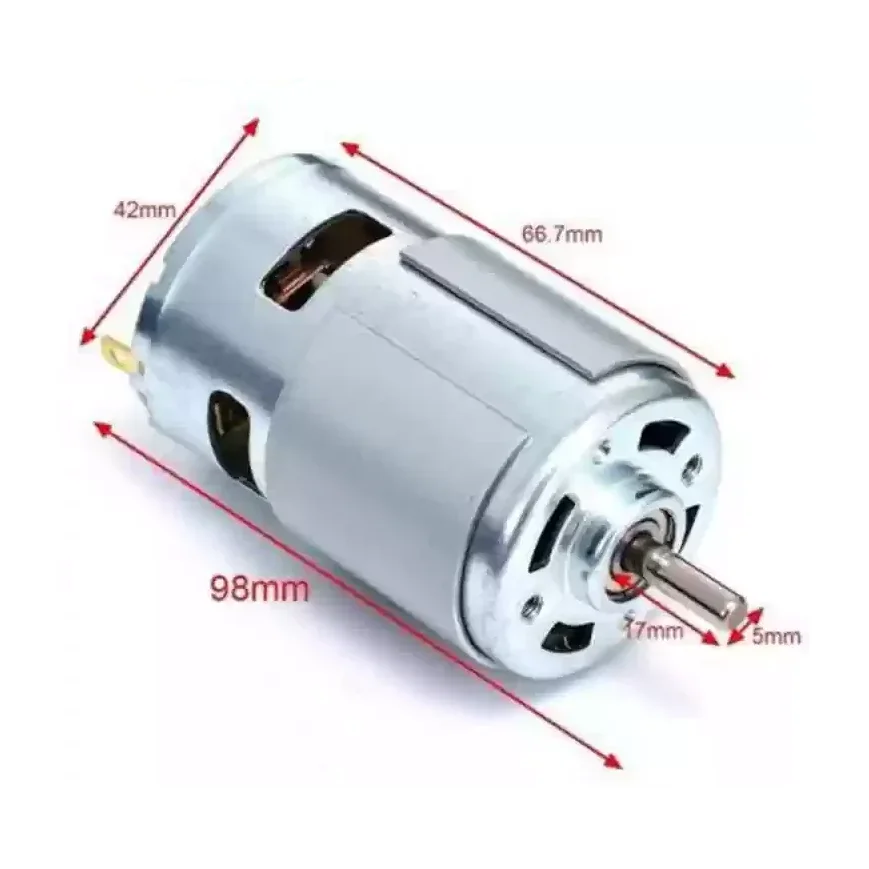

[General DC Motor] Operating Voltage: 12V(Recommended Voltage is 12v, Although the motor can run on 24v but we don't recommend it using it on 24V) No-load Current: 0.6A Maximum Current: 2A No Load Speed RPM @12V: Approx ~5000/6000 RPM No Load Speed RPM @24V: Approx ~11000/12000 RPM Mounting Screw Hole Diameter: ~4 mm Distance between Screw Holes: ~33 mm Diameter of the Motor: 41mm(Without metal clip) Length of the Motor (Body): 67mm Length of shaft: ~16-20 mm(Veries with Every Lot but usually lies in this bracket) Motor Shaft Diameter: 5mm Main Color: Silver Tone Note: This is a generic DIY Motor, finishing, weight and size may vary in each stock. Product Images are shown for illustrative purposes only and may differ from the actual products. We suggest you buy a few quantities before going for bulk or contact customer support for current stock images. Note:- There is no surety of the presence of an inbuilt fan inside the motor body as it varies with every new stock and we ship it randomly according to availability.

🔹 Key Features

• •Product Images are shown for illustrative purposes only and may differ from the actual products
• •We suggest you buy a few quantities before going for bulk or contact customer support for current stock images

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)

#define ENA_PIN 9   // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8   // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7   // Connect to L298N IN2 (Direction / OFF)

void setup() {
  pinMode(ENA_PIN, OUTPUT);
  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);

  // Initialize driver in OFF state
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);
}

void loop() {
  // Soft start: ramp up speed to prevent inrush current spikes
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);

  for (int speed = 100; speed <= 255; speed += 15) {
    analogWrite(ENA_PIN, speed);
    delay(50);
  }

  delay(3000); // Run motor at full speed for 3 seconds

  // Coast to stop
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);

  delay(2000); // Pause for 2 seconds
}

🔹 Applications

This component is engineered and suitable for:

• •DC motor speed regulation and soft start control
• •Robotics drive train and wheel speed adjustment
• •Cooling fans, exhaust blowers, and thermal management
• •Miniature water pumps and aquarium aeration systems
• •DIY electronics projects, automation circuits, and laboratory benches

🔹 Package Includes

• ✓1 × RS-775 DC 12V-24V High Speed Metal Large Torque 5000-10000 RPM DC Motor With Ball Bearing
