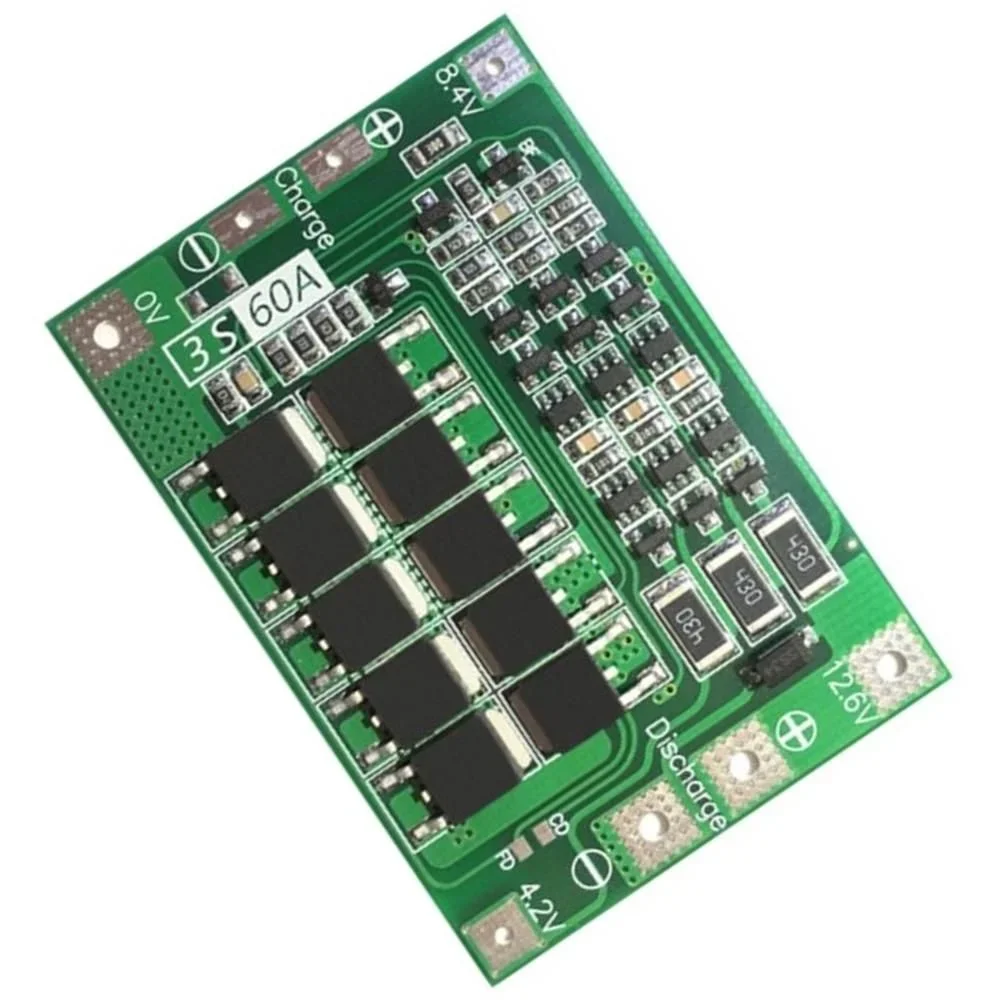

3S 60A Lithium Battery Charger BMS 18650 Protection Module Circuit

Description

The 3S 60A Lithium Battery Charger BMS 18650 Protection Module Circuit is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •[Lithium Battery Protection Board] Lithium-Ion Battery Packs need to be Balanced Charged and protected from Over Charge and Over-Discharge
• •This ensures the safety of the circuit and gives optimum battery life preserving the original capacity through use
• •You can use this Battery Management System(BMS) to ensure these conditions
• •It also offers short circuit protection
• •If you are using a 3S Lithium Battery in your project, you can also use this BMS Module to protect it from short circuits in the circuit
• •In the event of a short circuit, the BMS will cut power to the battery and restart

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × 3S 60A Lithium Battery Charger BMS 18650 Protection Module Circuit
