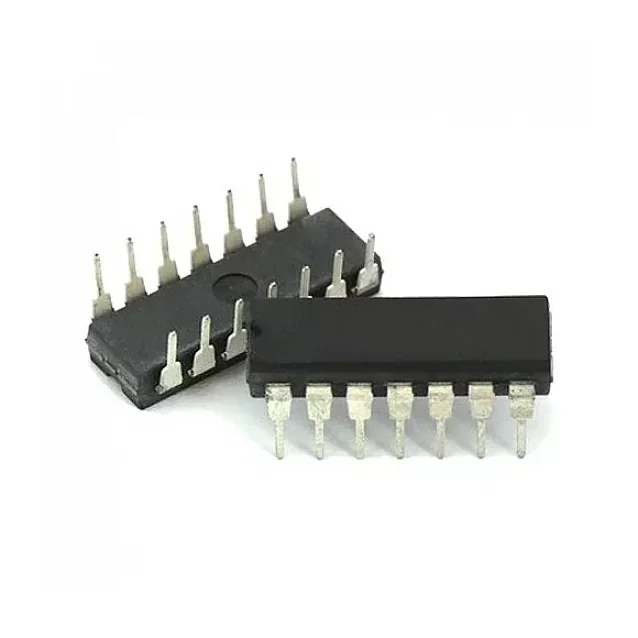

IC 74HC32 Quad 2-Input/Gate Dip

Description

The IC 74HC32 Quad 2-Input/Gate Dip is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •It is ideal for low power applications maintaining high-speed operation similar to equivalent Bipolar Schottky TTL
• •The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output
• •The device is designed to interface directly with High-Speed CMOS systems with TTL, NMOS, and CMOS output voltage levels
• •All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × IC 74HC32 Quad 2-Input/Gate Dip
