SKU: #5344Sensors

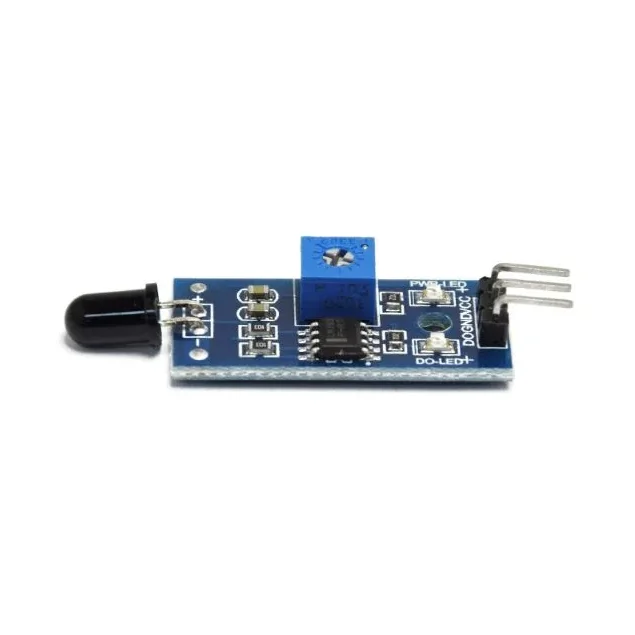

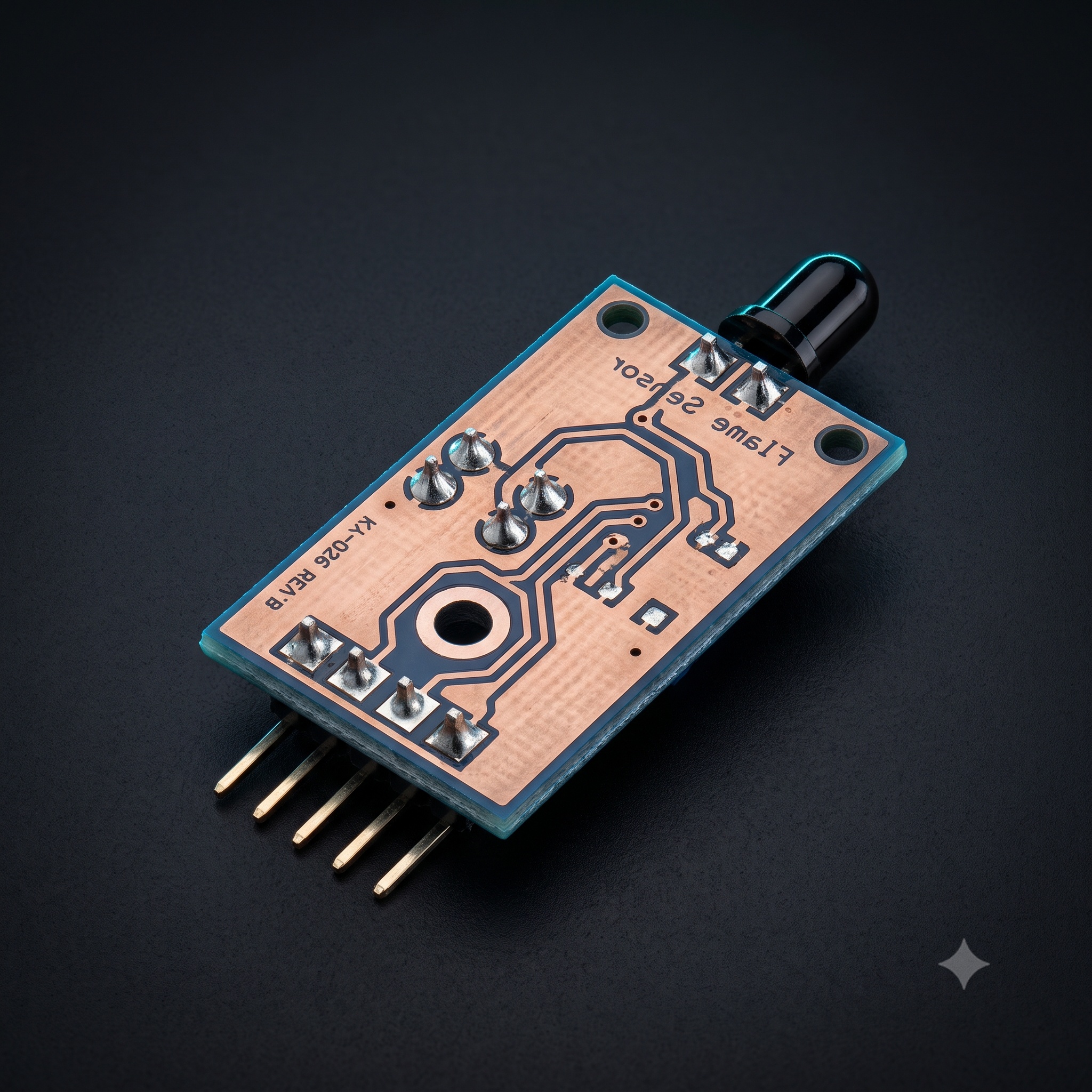

Flame Sensor infrared Receiver Ignition source detection module
—
₹37.00
₹32.00
(Inc. GST)Save 14%- •Product Name: Flame Sensor infrared Receiver Ignition source detection module
- •Product Category: Sensors
- •Operating Voltage: 3.3V - 5V DC
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •Efficiency / Accuracy: Up to 95%
- •Greater the flame, farther the test distance
- •It has the Detect angle of 60° and very sensitive to flame spectrum
In stock(10 units ready to dispatch)
1
Check Delivery Availability of Your Pincode:
10 People watching this product right now!
Description
The Flame Sensor infrared Receiver Ignition source detection module is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •Greater the flame, farther the test distance
- •It has the Detect angle of 60° and very sensitive to flame spectrum
- •It produces the one channel output signal at the D0 terminal for further processing like an alarm system or any switching system
- •The sensitivity is adjustable with the help of blue potentiometer given on the board
- •Features : Indicator light: a green one for the switch, a red one for power
- •Built in a potentiometer for sensitivity control
🔹 Technical Specifications
Product Name:Flame Sensor infrared Receiver Ignition source detection module
Product Category:Sensors
Operating Voltage:3.3V - 5V DC
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%
🔹 Pin Configuration & Wiring
VCC3.3V to 5V DC Power Input
GNDGround Connection (0V)
OUT / DATDigital / Analog Output Signal to Microcontroller
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × Flame Sensor infrared Receiver Ignition source detection module
