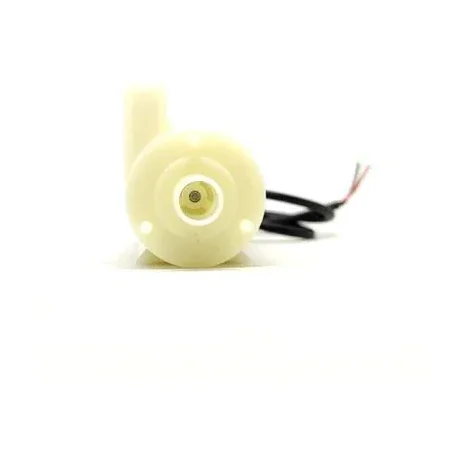

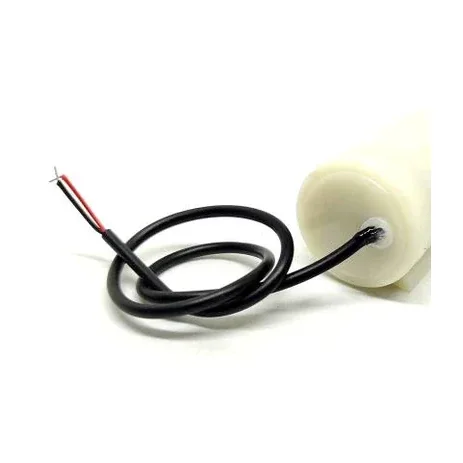

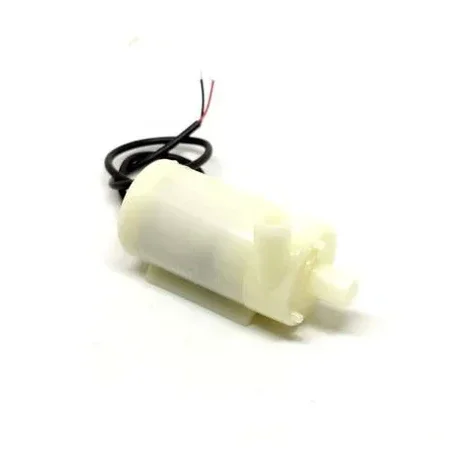

DC Micro Horizontal Two Nozzle Submersible Water Pump for Fish Tank Fountain Aquarium

Description

[DC Water Pump] Double Side Pipe Submersible and Non-Submersible Mini Water Pump Features – Micro/Mini Water Pump Operating Voltage: DC 3-6 V Power : 3 W Maximum lift : 40-110cm / 15.75″-43.4″ Flow rate: 80-120L/H Material: Engineering plastic This DC 3-6 V Mini Micro Submersible Water Pump is a low-cost, small-size Submersible Pump Motor which can be operated from a 3 ~ 6V power supply. It can take up to 120 liters per hour with a very low current consumption of 220mA. Just connect tube pipe to the motor outlet, submerge it in water, and power it.

🔹 Key Features

• •It can take up to 120 liters per hour with a very low current consumption of 220mA
• •Just connect tube pipe to the motor outlet, submerge it in water, and power it

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)

#define ENA_PIN 9   // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8   // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7   // Connect to L298N IN2 (Direction / OFF)

void setup() {
  pinMode(ENA_PIN, OUTPUT);
  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);

  // Initialize driver in OFF state
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);
}

void loop() {
  // Soft start: ramp up speed to prevent inrush current spikes
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);

  for (int speed = 100; speed <= 255; speed += 15) {
    analogWrite(ENA_PIN, speed);
    delay(50);
  }

  delay(3000); // Run motor at full speed for 3 seconds

  // Coast to stop
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);

  delay(2000); // Pause for 2 seconds
}

🔹 Applications

This component is engineered and suitable for:

• •DC motor speed regulation and soft start control
• •Robotics drive train and wheel speed adjustment
• •Cooling fans, exhaust blowers, and thermal management
• •Miniature water pumps and aquarium aeration systems
• •DIY electronics projects, automation circuits, and laboratory benches

🔹 Package Includes

• ✓1 × DC Micro Horizontal Two Nozzle Submersible Water Pump for Fish Tank Fountain Aquarium
