4S 100A LiFePO4 Lithium Battery Protection Balance Charging BMS Protection PCB Board

Description

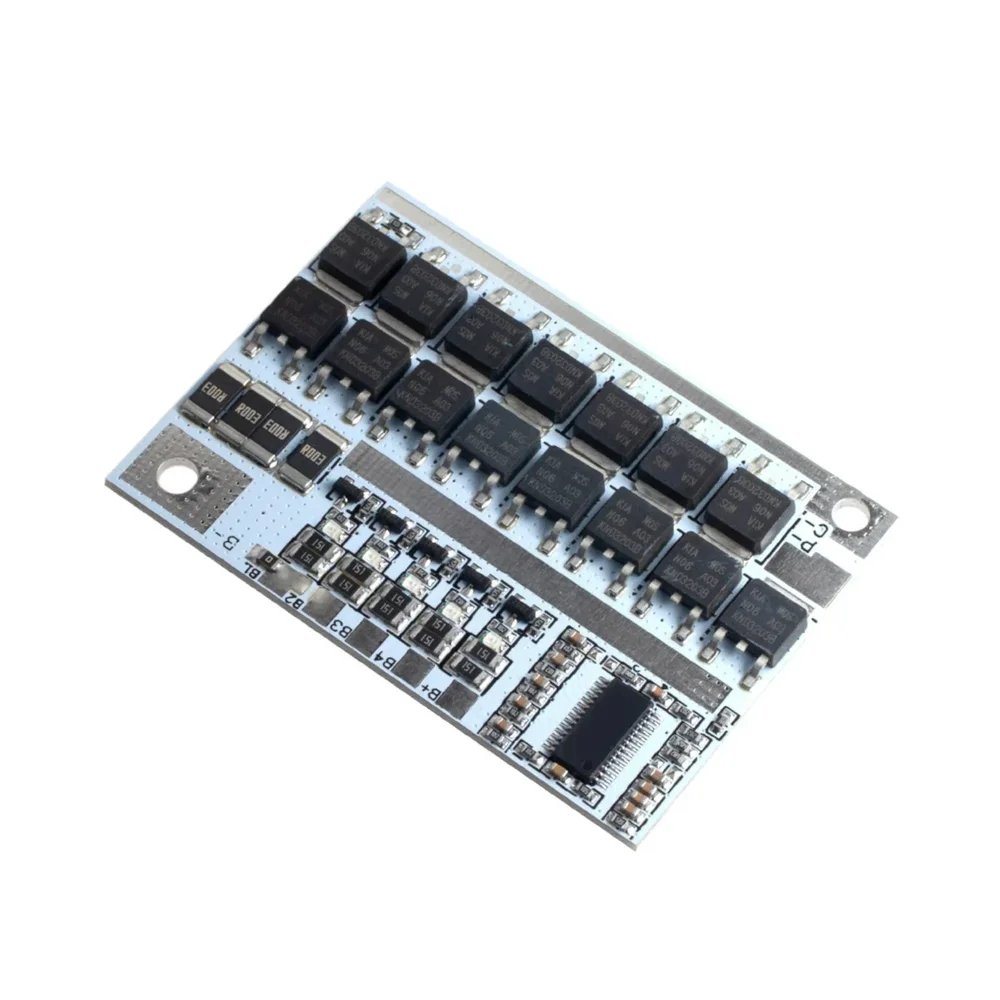

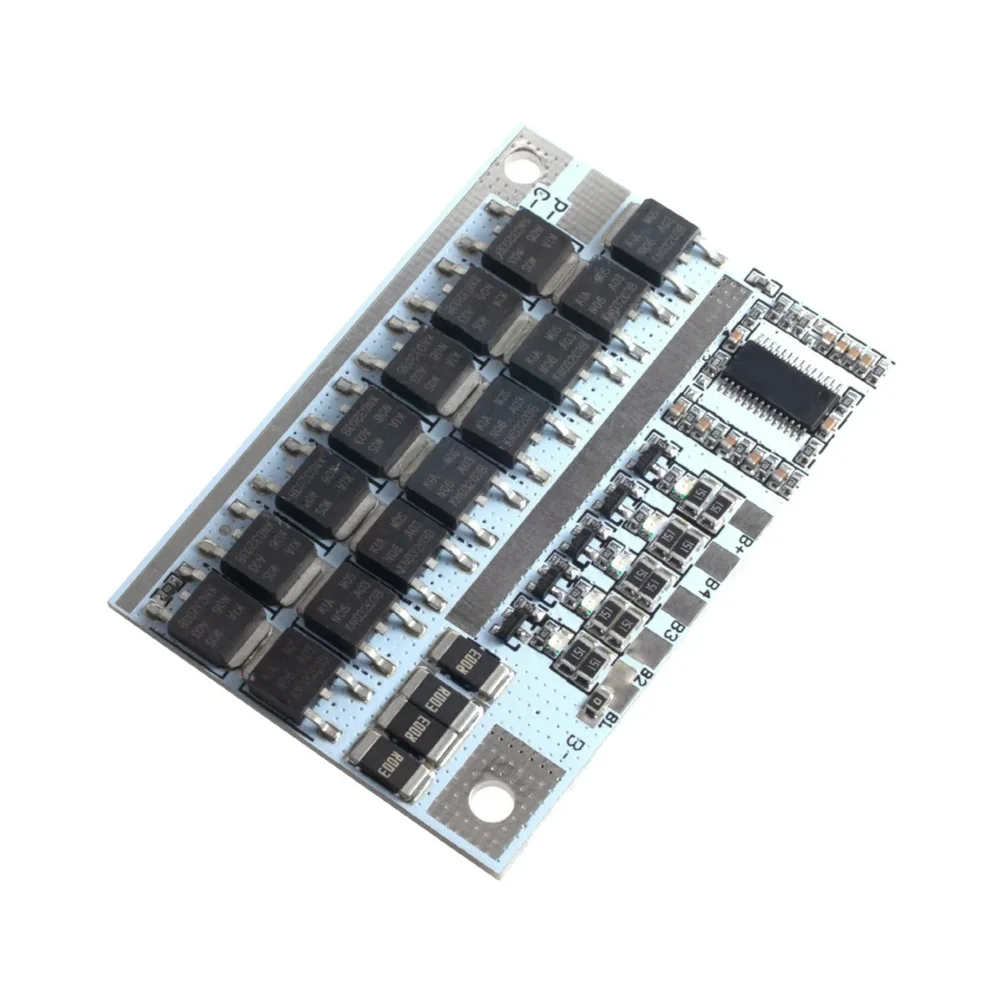

[Lithium Battery Protection Board] ⚡ 4S 100A LiFePO₄ BMS Protection Board with Cell Balancing (White PCB) 4S LiFePO₄ Battery Management System 100A Protection Active Cell Balancing Temperature Protection The 4S 100A LiFePO₄ Battery Management System (BMS) Protection Board is a high-performance protection circuit designed specifically for 4-cell (4S) 12.8V LiFePO₄ battery packs. It provides comprehensive protection against overcharging, over-discharging, over-current, short circuits, and temperature abnormalities, ensuring safe and reliable battery operation. Equipped with 15 ultra-low resistance MOSFETs and an integrated cell balancing function, the BMS helps maintain equal voltage across all four battery cells, improving battery efficiency, performance, and service life. The onboard balancing circuit automatically equalizes cell voltages during charging, reducing cell imbalance and maximizing battery capacity. This BMS supports both common port (same port) and separate charge/discharge (different port) configurations. In common-port mode, it supports up to 60A continuous charge and discharge, while in separate-port mode it supports 80A continuous discharge and 60A charging. The board also includes a temperature sensor interface for additional safety. Designed exclusively for 4S LiFePO₄ (3.2V) battery packs, this protection board is not compatible with 3.7V Li-ion, Lithium Polymer (Li-Po), or ternary lithium batteries.

🔹 Key Features

• •⭐ Features Designed specifically for 4S LiFePO₄ battery packs High-current 100A protection design Built-in automatic cell balancing Over-charge protection Over-discharge protection Over-current protection Short-circuit protection Temperature protection interface Ultra-low resistance MOSFET design Supports common-port and separate-port wiring Low power consumption Easy installation and wiring Improves battery safety and lifespan

🔹 Technical Specifications

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓⚠️ Note Compatible only with 4S (12.8V) LiFePO₄ battery packs. Do NOT use with 3.7V Lithium-ion (18650), Li-Po, LiMn, LiCoO₂, or ternary lithium batteries. Ensure correct wiring according to the BMS connection diagram before use. Product color, PCB layout, and component placement may vary slightly depending on the manufacturing batch. All product images are for illustration purposes only.
