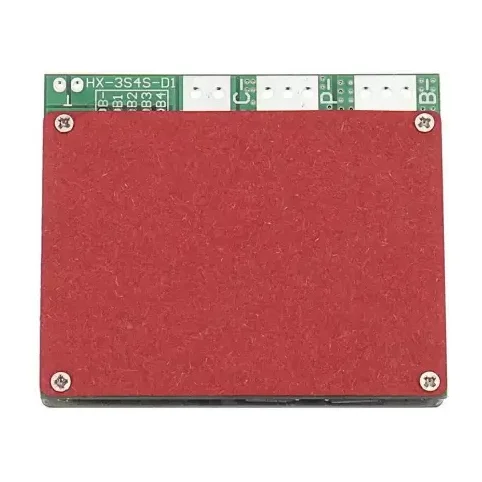

3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board
- •Product Name: 3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board
- •Product Category: Power & Components
- •Operating Voltage: 12.6V-13V
- •Max Current: 100A
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •Note: 3A current discharge products above, the battery discharge rate to 3C or more
- •Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current
Description

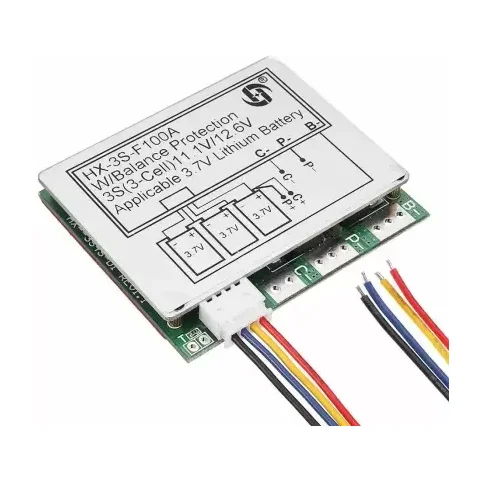

[Lithium Battery Protection Board] The lithium battery protection board properties: Model: HX-3S-F100A Overcharge voltage range: 4.28v ± 0.05v Size: 70 * 60 * 8.5mm Over discharge voltage range: 2.5 ± 0.05v Upper working current: 100A (pay attention to heat) Operating temperature: -40 — +50 ° Upper limit instantaneous current: 100-120A Storage conditions: -40– +80 ° Quiescent current: less than 30uA Effective life: more than 30,000 hours Internal resistance: less than 300mΩ Short circuit protection: protection, delay self-recovery. Equalizing current: 65 mA Charging voltage: 12.6V-13V Charging current upper limit: 10A T point Description: plus a normally closed temperature sensor switch can expand the role of temperature protection, the solder joint should be removed next to the 0R resistance. Note: 3A current discharge products above, the battery discharge rate to 3C or more. Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current. You can check our others BMS, Click here Package contains : 1 x 3S 11.1V High Current 100A 3.7V Lithium Battery Protection Board With Balance
🔹 Key Features
- •Note: 3A current discharge products above, the battery discharge rate to 3C or more
- •Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current
- •3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current
- •You can check our others BMS, Click here Package contains : 1 x 3S 11.1V High Current 100A 3.7V Lithium Battery Protection Board With Balance
🔹 Technical Specifications
🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × 3S 100A BMS PCB 11.1V 12.6V Li-ion Lithium ion 3 cell 18650 Battery Protection Board
