SKU: #5161Display & Communication
2.8 inch SPI Touch Screen Module TFT Interface 240*320
—
₹723.00
₹629.00
(Inc. GST)Save 13%- •Product Name: 2.8 inch SPI Touch Screen Module TFT Interface 240*320
- •Product Category: Display & Communication
- •Operating Voltage: 3.3V - 5V DC
- •Operating Temperature: -20°C to +65°C
- •Mounting Type: Through Hole / Screw Terminal / Modular
- •Efficiency / Accuracy: Up to 95%
- •As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen
- •This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller
Out of stock
1
Check Delivery Availability of Your Pincode:
SKU: ET05161
Categories: All, Display & Communication
10 People watching this product right now!
Description
The 2.8 inch SPI Touch Screen Module TFT Interface 240*320 is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen
- •This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller
- •The display can be used in two modes: 8-bit and SPI
- •For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total)
- •SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode
- •In addition, 4 pins are required for the touchscreen (2 digital, 2 analogs)
🔹 Technical Specifications
Product Name:2.8 inch SPI Touch Screen Module TFT Interface 240*320
Product Category:Display & Communication
Operating Voltage:3.3V - 5V DC
Operating Temperature:-20°C to +65°C
Mounting Type:Through Hole / Screw Terminal / Modular
Efficiency / Accuracy:Up to 95%

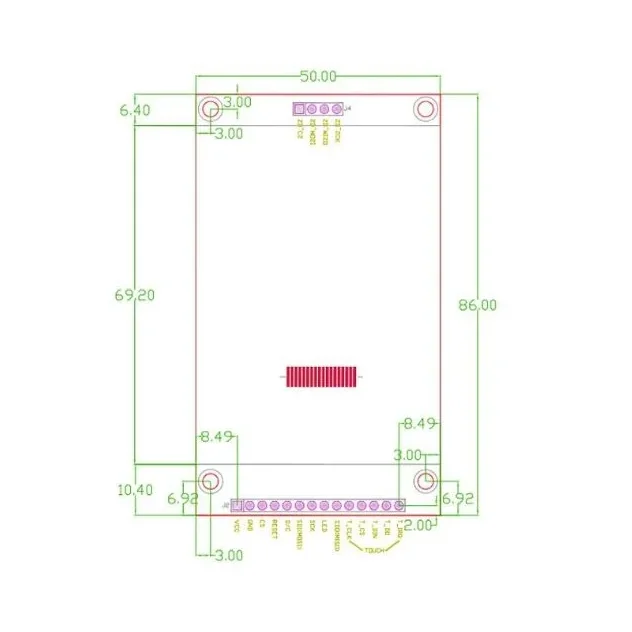

🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × 2.8 inch SPI Touch Screen Module TFT Interface 240*320
Wholesale Tiered Pricing
Selected Quantity:
Subtotal: ₹629.00 +18% GST
