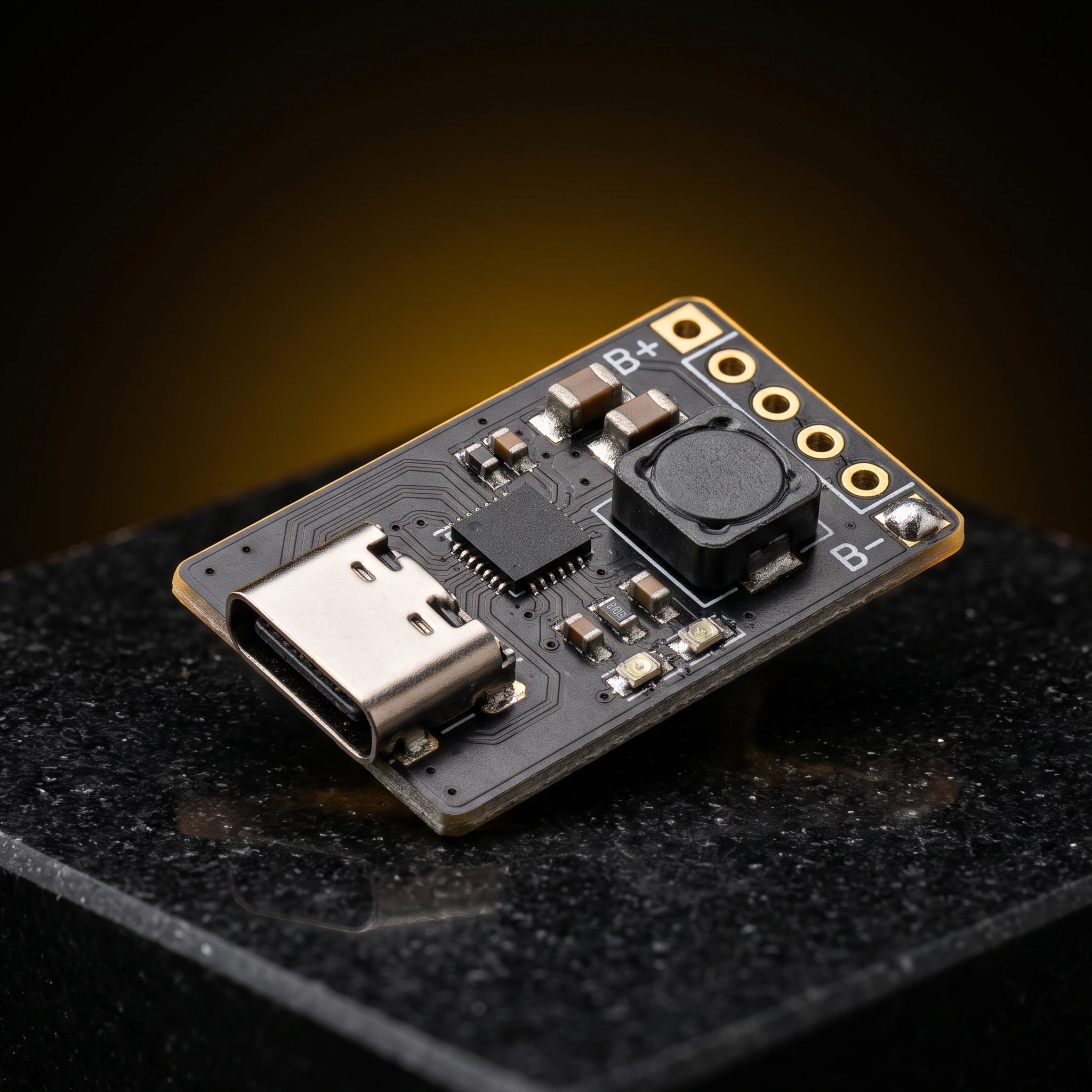

Type-C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V

Description

The Type-C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.

🔹 Key Features

• •� Type-C USB InputModern and widely compatible input interface (4.5V–5.5V), easy to power from adapters, power banks, or USB ports. 🧠 Smart Charging Management (IP2312 Chip)Automatically adjusts charging mode based on battery voltage for maximum safety and efficiency. 🔴🔵 LED Status Indicators Red LED: Charging in progress Blue LED: Fully charged
• •�️ Compact & Easy IntegrationSmall size makes it perfect for embedded systems, DIY battery packs, and portable devices. Charging Working Principle
• •� Trickle Charging Mode (< 3V)When battery voltage is below 3V, the module charges with a safe low current (~100mA).
• •� Constant Current Mode (> 3V)Once voltage exceeds 3V, it switches to constant current charging (up to 3A).
• •� Constant Voltage Mode (~4.2V)As the battery approaches full charge, it maintains voltage while gradually reducing current.

🔹 Technical Specifications

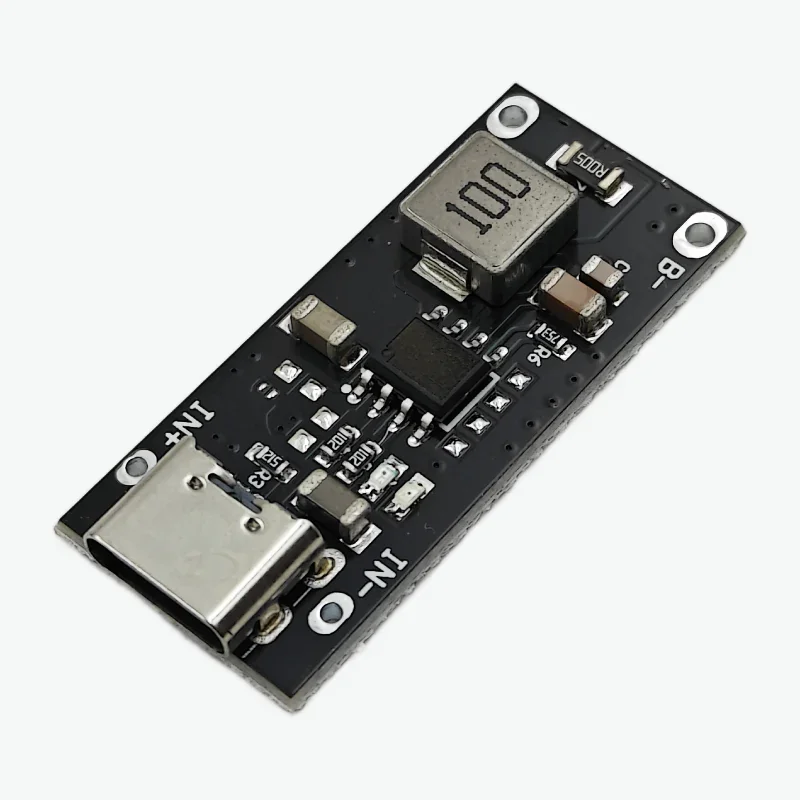

🔹 Pin Configuration & Wiring

🔹 Applications

This component is engineered and suitable for:

• •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
• •IoT telemetry, environmental monitoring, and smart home systems
• •Robotics navigation, obstacle detection, and motion sensing
• •STEM education, university electronics labs, and maker prototyping

🔹 Package Includes

• ✓1 × Type-C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V
