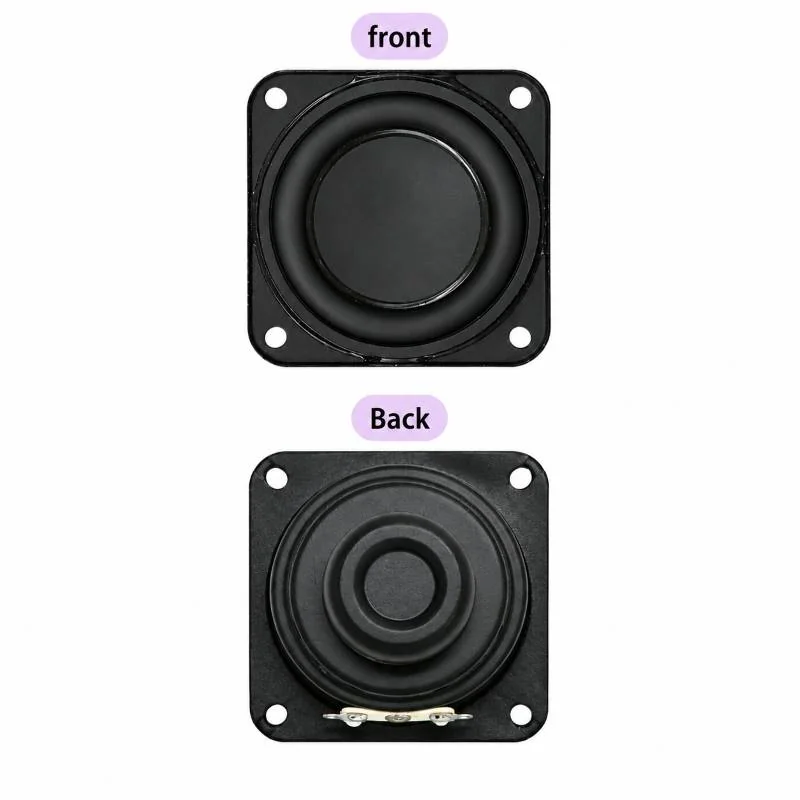

48mm Square Internal Magnet Speaker – 4Ohms 5W
- •Its square frame allows convenient mounting inside compact enclosures and panels
- •Ensure the amplifier's output power is suitable for the speaker's 5W rating
- •Mount the speaker securely inside the enclosure to reduce unwanted vibration
- •Observe correct speaker polarity when connecting multiple speakers
Description
The 48mm Square Internal Magnet Speaker – 4Ohms 5W is a high-grade, precision-tested electronic component designed for reliable performance in prototyping, education, industrial control, and custom hardware engineering.
🔹 Key Features
- •Its square frame allows convenient mounting inside compact enclosures and panels
- •Ensure the amplifier's output power is suitable for the speaker's 5W rating
- •Mount the speaker securely inside the enclosure to reduce unwanted vibration
- •Observe correct speaker polarity when connecting multiple speakers
- •📦 Package Includes 1 × 48mm Square Internal Magnet Speaker Impedance: 4Ω Power: 5W ⚠️ Precautions Do not exceed the 5W rated power for prolonged operation
- •Use a compatible 4Ω amplifier
🔹 Pin Configuration & Wiring
🔹 Applications
This component is engineered and suitable for:
- •Microcontroller interfacing (Arduino, ESP32, Raspberry Pi, STM32)
- •IoT telemetry, environmental monitoring, and smart home systems
- •Robotics navigation, obstacle detection, and motion sensing
- •STEM education, university electronics labs, and maker prototyping
🔹 Package Includes
- ✓1 × 48mm Square Internal Magnet Speaker – 4Ohms 5W
