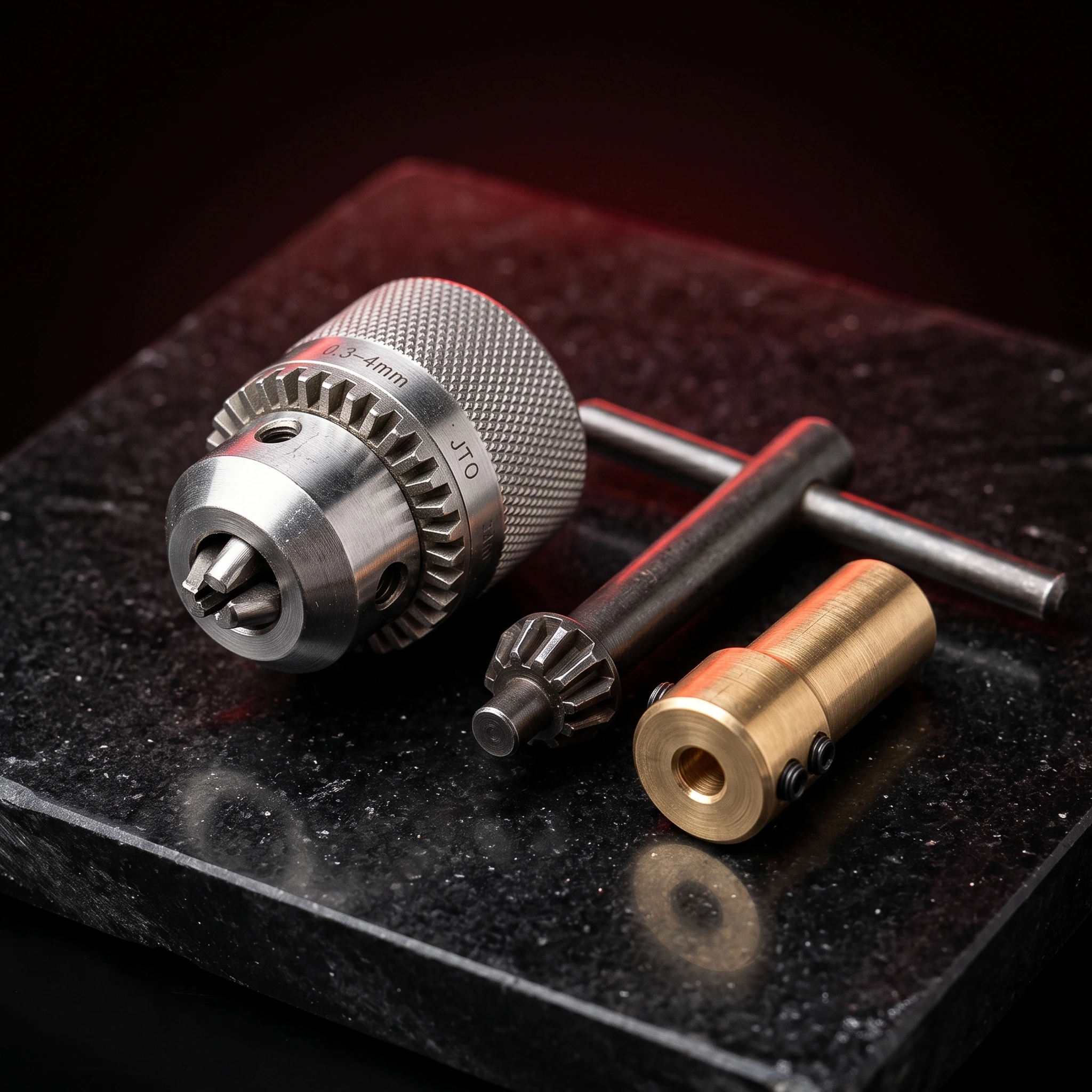

0.3–4mm Mini Drill Chuck with Key & 2.3mm Brass Shaft Adapter for 555 DC Motor

Description

[General DC Motor] 🔧 0.3–4mm Mini Drill Chuck with Key & 2.3mm Brass Shaft Adapter for 555 DC Motor 0.3–4mm Chuck Capacity JT0 Drill Chuck 2.3mm Brass Shaft Adapter

🔹 Key Features

• •This complete set includes a precision JT0 drill chuck, a 2.3mm brass motor shaft adapter, and a chuck key for secure tightening and loosening of drill bits
• •Manufactured from high-carbon steel, the drill chuck provides excellent durability, wear resistance, and high clamping accuracy
• •The included 2.3mm brass shaft adapter offers a precise fit on 555 DC motor shafts, ensuring smooth power transmission with minimal vibration
• •Its corrosion-resistant brass construction provides excellent durability and reliable performance for long-term use
• •Recommended for 555 DC motors and compatible motors with a 2.3mm shaft
• •Suitable for drilling soft materials such as wood, plastic, acrylic, PCB, and aluminum

🔹 Pin Configuration & Wiring

// Safe Motor & Air Pump PWM Speed Control using L298N Driver
// Tested for Arduino Uno & ESP32 (with ESP32 ledcWrite)

#define ENA_PIN 9   // Connect to L298N ENA (PWM speed control)
#define IN1_PIN 8   // Connect to L298N IN1 (Direction / ON)
#define IN2_PIN 7   // Connect to L298N IN2 (Direction / OFF)

void setup() {
  pinMode(ENA_PIN, OUTPUT);
  pinMode(IN1_PIN, OUTPUT);
  pinMode(IN2_PIN, OUTPUT);

  // Initialize driver in OFF state
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);
}

void loop() {
  // Soft start: ramp up speed to prevent inrush current spikes
  digitalWrite(IN1_PIN, HIGH);
  digitalWrite(IN2_PIN, LOW);

  for (int speed = 100; speed <= 255; speed += 15) {
    analogWrite(ENA_PIN, speed);
    delay(50);
  }

  delay(3000); // Run motor at full speed for 3 seconds

  // Coast to stop
  digitalWrite(IN1_PIN, LOW);
  digitalWrite(IN2_PIN, LOW);
  analogWrite(ENA_PIN, 0);

  delay(2000); // Pause for 2 seconds
}

🔹 Applications

This component is engineered and suitable for:

• •DC motor speed regulation and soft start control
• •Robotics drive train and wheel speed adjustment
• •Cooling fans, exhaust blowers, and thermal management
• •Miniature water pumps and aquarium aeration systems
• •DIY electronics projects, automation circuits, and laboratory benches

🔹 Package Includes

• ✓1 × 0.3–4mm Mini Drill Chuck with Key & 2.3mm Brass Shaft Adapter for 555 DC Motor
